Micro Power Operational Amplifier
SGM8240-1 SGM8240-1.pdf

No.10780

FEATURES
? Low Noise: 3μVP-P (0.1Hz to 10Hz)
? Wide Supply Voltage Range: 2.7V to 24V
? Micro Power Consumption: 2.8μA/Amplifier (TYP)
? Low Offset Voltage: 0.4mV (TYP)
? Noise Density: 100nV/ Hz at 1kHz
? Slew Rate: 0.05V/μs
? Rail-to-Rail Input and Output
? High DC Precision:
    CMRR: 110dB
    PSRR: 116dB
    AOL:  120dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
  SGM8240-1 Available in Green SOT-23-5 and
  SC70-5 Packages
DESCRIPTION

The SGM8240-1, SGM8240-2 and SGM8240-4 micropower, wide power supply range operational amplifiers are designed for battery-powered applications. The amplifiers operate on a supply voltage from 2.7V (±1.35V) to 24V (±12V). High-performance, wide supply range and rail-to-rail capability make the SGM8240-1/2/4 useful for a wide range of applications. In addition of small packages, the SGM8240-1/2/4 operational amplifiers feature impressive bandwidth, low bias current, and low noise relative to the very low quiescent current.
The single SGM8240-1 is available in Green SOT-23-5 and SC70-5 packages. They are specified from -40℃ to +125℃ temperature range.

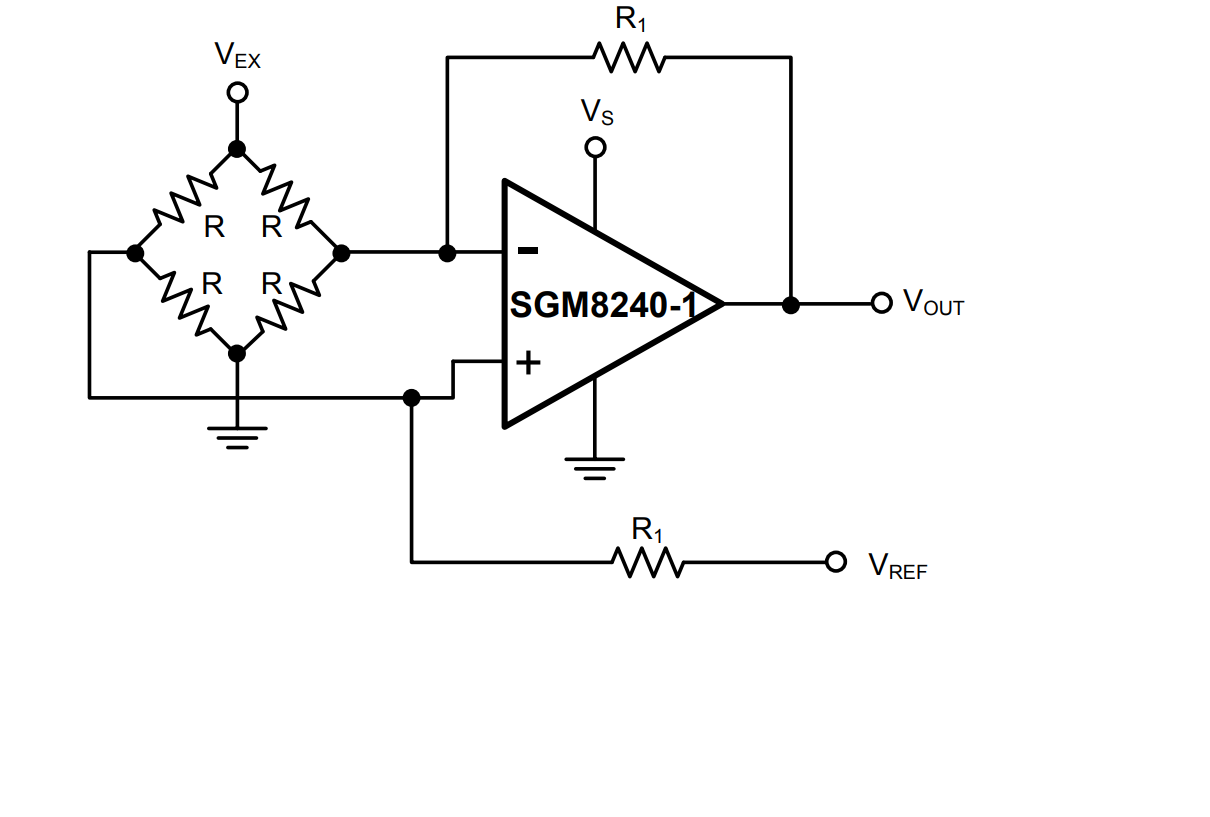

APPLICATION CIRCUIT

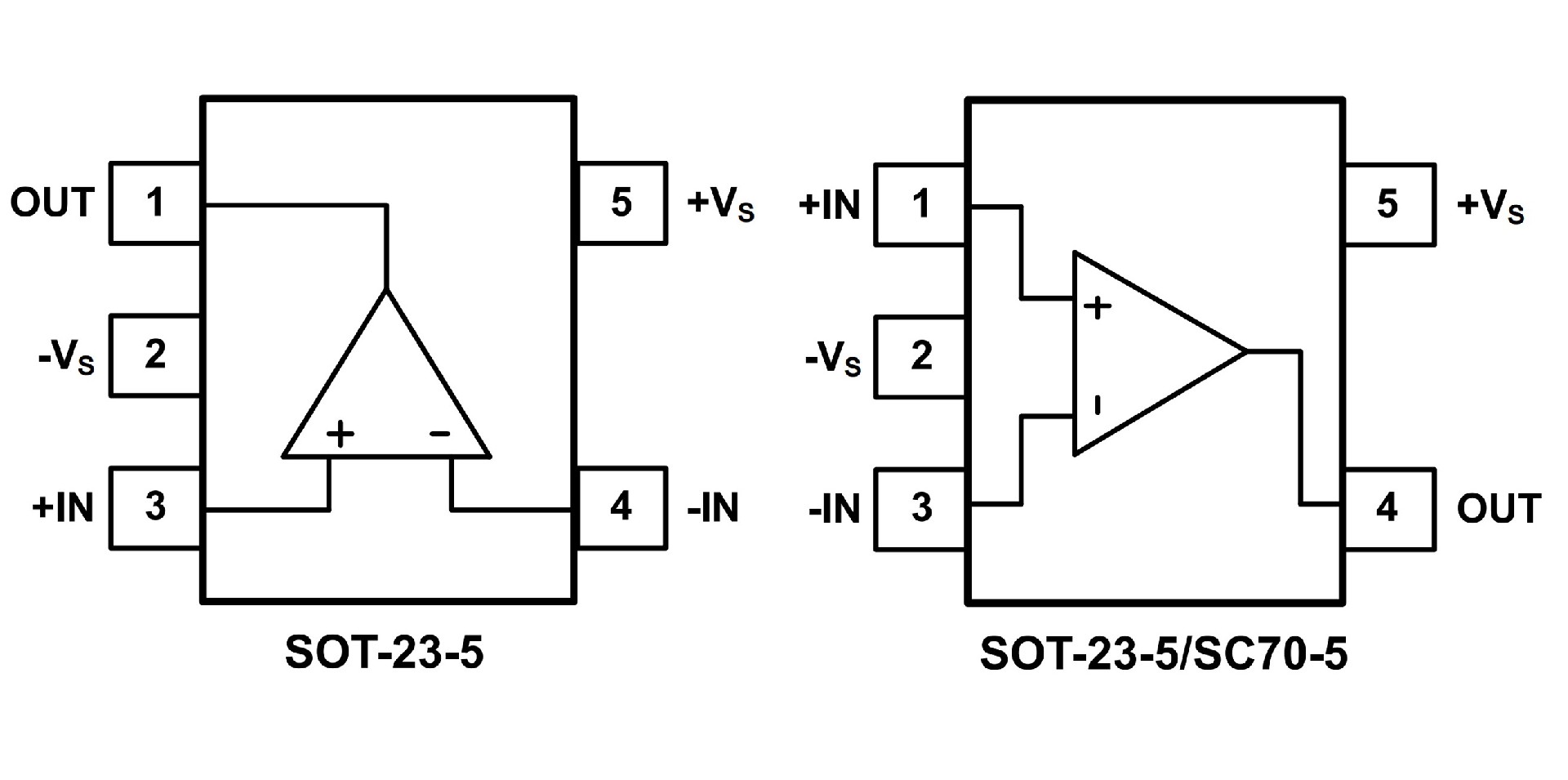

PIN CONFIGUTION
