SGM2258.pdf
No.11176
● Operation Voltage: +1.8V to +5.5V
● On-Resistance: 4.5Ω (TYP) at +4.5V
● High Bandwidth: 300MHz
● Switching Times:
tON 70ns
tOFF 20ns
● High Off-Isolation: -51dB at 10MHz
● Low Crosstalk: -67dB at 10MHz
● Rail-to-Rail Operation
● TTL/CMOS Compatible
● Break-Before-Make Switching
● Extended Industrial Temperature Range: -40°C to +85°C

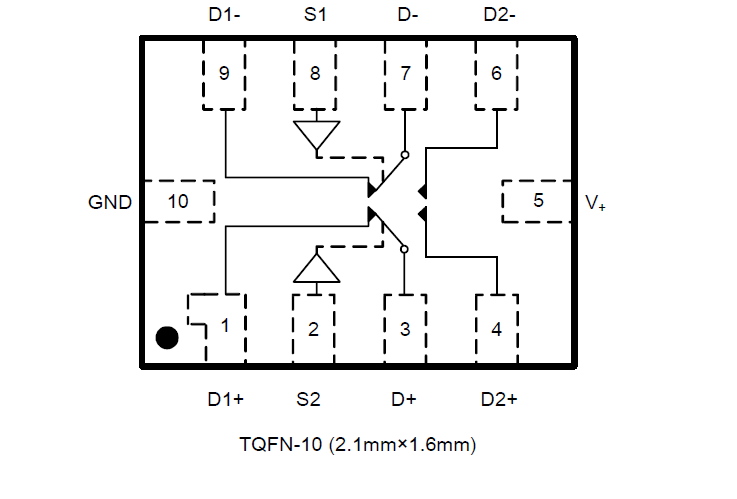

● Lead (Pb) Free TQFN-10 Package

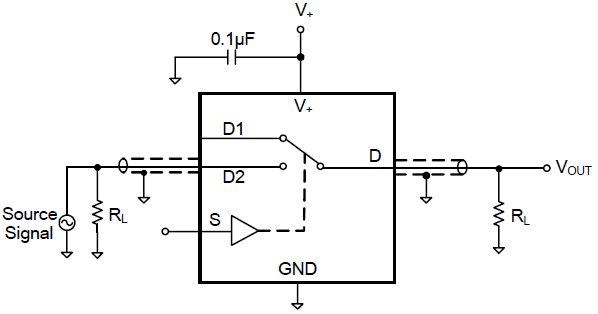

The SGM2258 is a high-performance, dual, single-pole/ double-throw (SPDT) CMOS analog switch designed for switching USB 1.1 signals. High bandwidth and low
on-resistance make this switch able to pass both USB low- and full-speed signal with minimum signal distortion.
The SGM2258 features guaranteed on-resistance matching (0.3Ω TYP) between switches and guaranteed on-resistance flatness over the signal range (2Ω TYP). This ensures excellent linearity and low distortion when switching signals.
The device is fabricated with sub-micron CMOS technology to achieve fast switching speeds and designed for break-before-make operation. The select input is TTL-level compatible.
