ESD保護(hù)二極體及陣列/EMI濾波器
L35ESDL5V0CB2
L35ESDL5V0CB2.pdf
L35ESDL5V0CB2.pdf
No.10563
FEATURES
? Protects one power or I/O line
? Max. peak pulse power : Ppp = 350W at tp = 8/20 us.
? Ultra Low Capacitance : 1.6pF Typical
? Low clamping voltage
? IEC 61000-4-2, level 4 ( ESD ), > ±15KV ( air ) ;
> ±8KV ( contact )
DESCRIPTION
Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diodes in small Surface-Mounted Device (SMD) plastic packages designed to protect one data line from the damage caused by ESD.

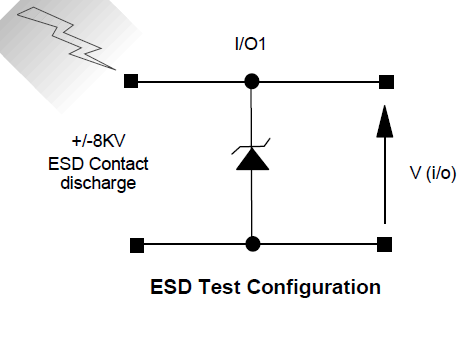

APPLICATION CIRCUIT
PIN CONFIGUTION
