High-Voltage, High-Current Darlington Transistor Arrays, ULN2003 Replace ST ULN2003D1013TR.
ULN2003
ULN2003.pdf
ULN2003.pdfFEATURES
? 500mA Rated Collector Current (Single Output)
? High-Voltage Outputs: 50V
? Output Clamp Diodes
? Inputs Compatible with Popular Logic Types
? Relay Driver Applications
?“Green” Molding Compound (No Br, Sb)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control

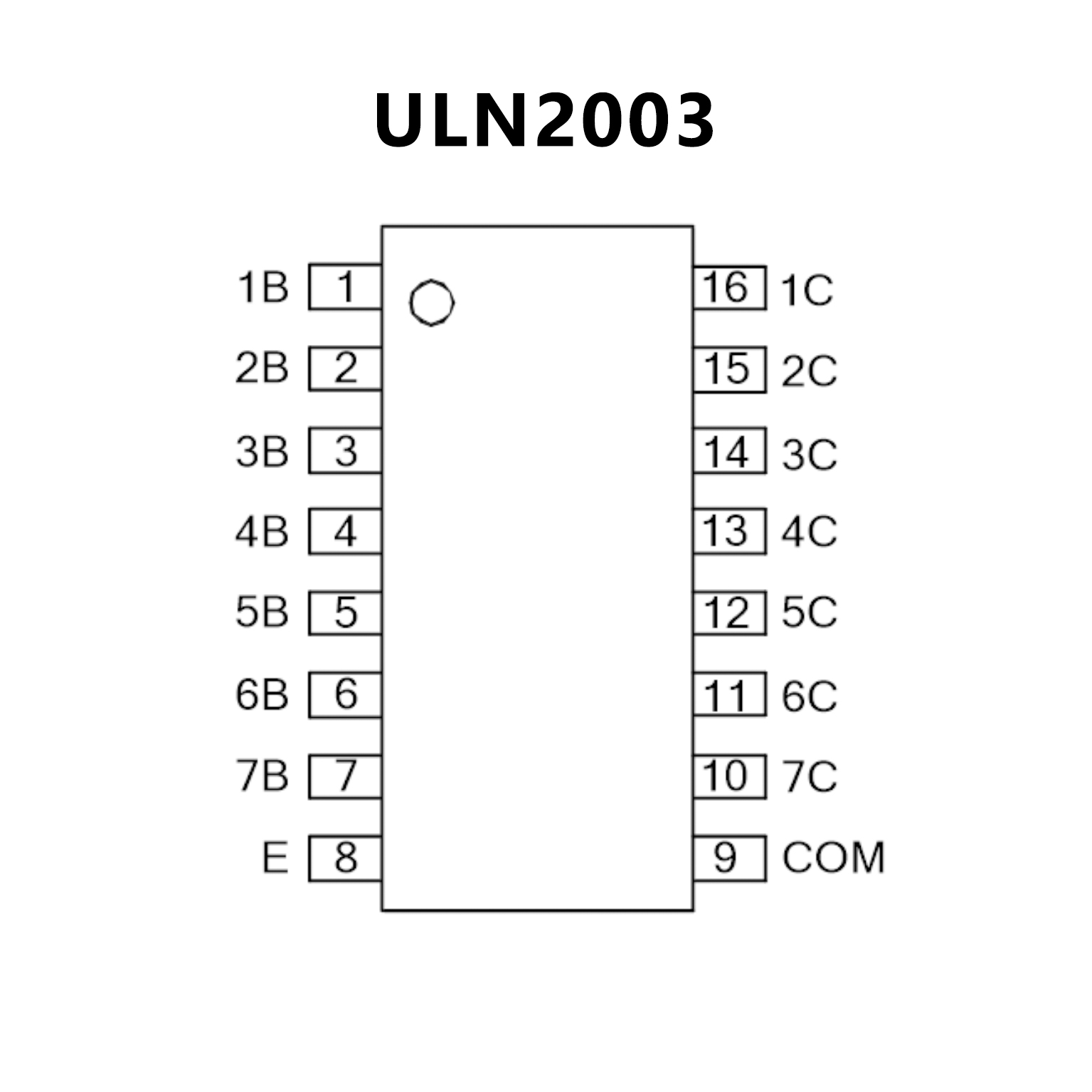

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Seven Darlingtons per package
? Output current 500 mA per driver (600 mA peak)
? Output voltage 50 V
? Integrated suppression diodes for inductive loads
? Outputs can be paralleled for higher current
? TTL/CMOS/PMOS/DTL compatible inputs
? Input pins placed opposite to output pins to
simplify layout

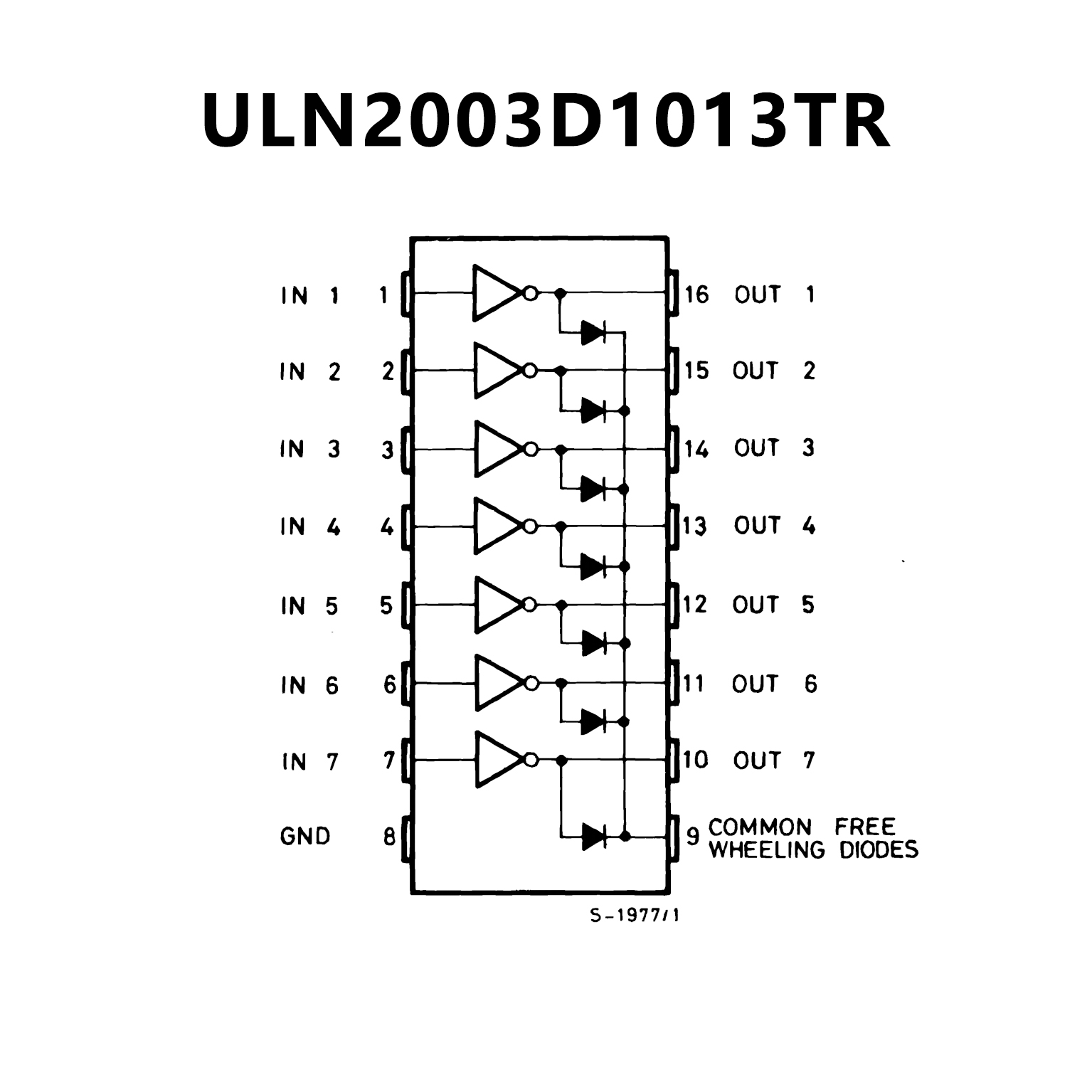

PIN CONFIGUTION
