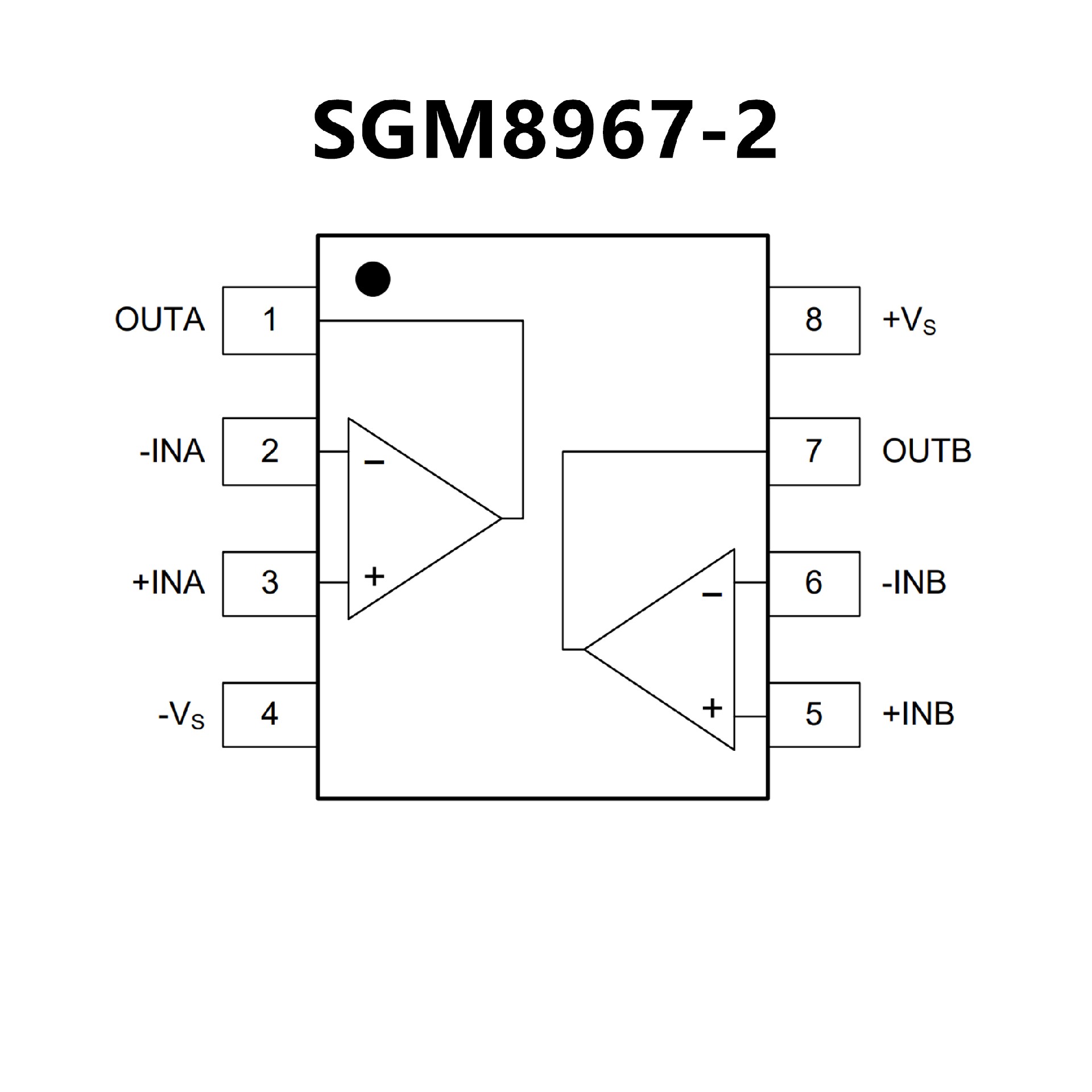

SGM8967-2.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 27MHz
? High Slew Rate: 30V/μs
? Settling Time to 0.1% with 2V Step: 120ns
? Overload Recovery Time: 60ns
? Low Noise: 8nV/ Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V
with VS = 5.5V
? Low Power:Supply Current: 2.7mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8967-1 Available in Green
SOT-23-5 andSOIC-8 Packages
SGM8967-2 Available in Green
MSOP-8 andSOIC-8 Packages
SGM8967-4 Available in Green
SOIC-14 andTSSOP-14 Packages
? Unless Otherwise Noted,
? Typical Values at VS = 5V.
? Input Offset Voltage ±150 μV (Max)
? Input Bias Current 100 fA
? Input Voltage Noise 5.8 nV/√Hz
? Gain Bandwidth Product 17 MHz

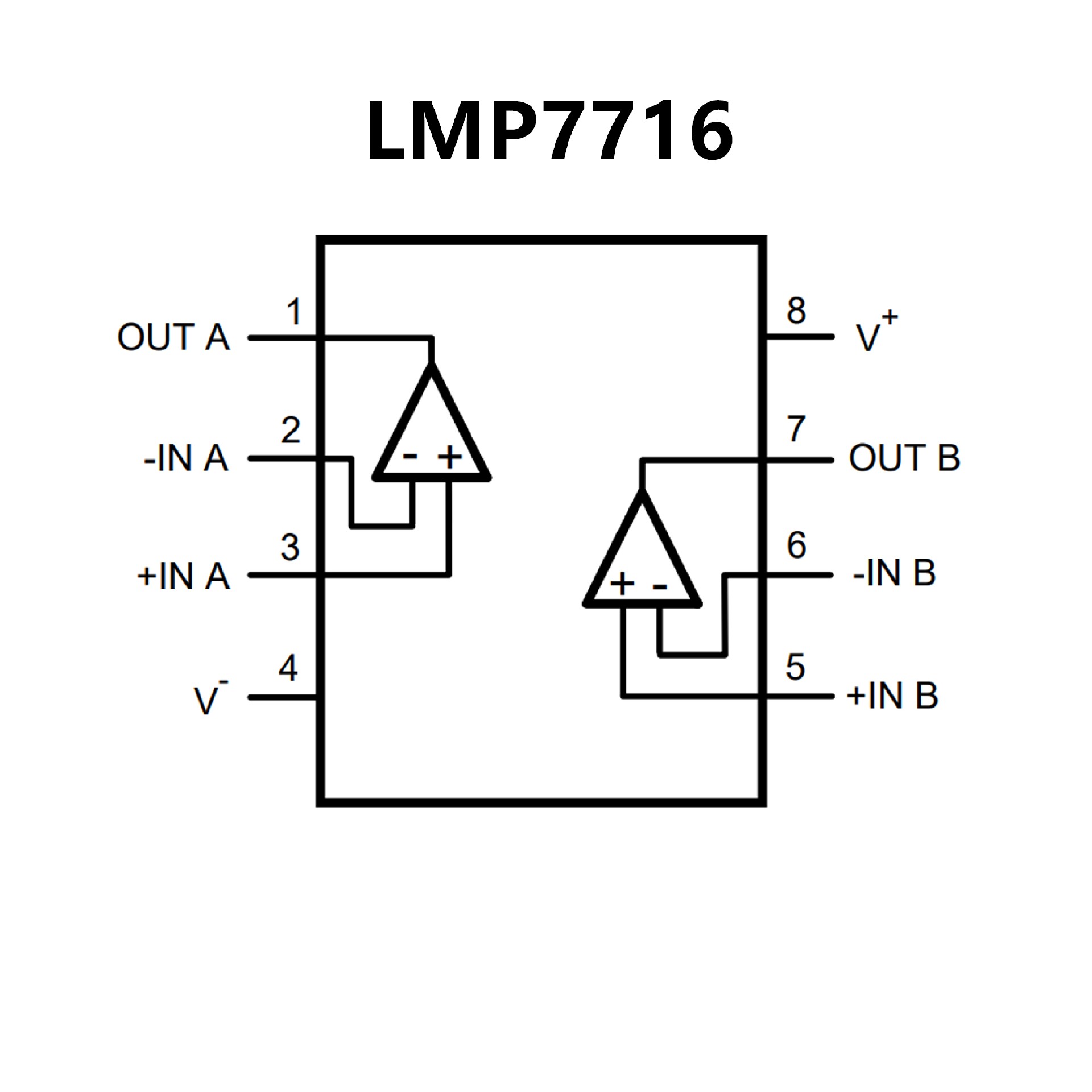

? Supply Current (LMP7715) 1.15 mA
? Supply Current (LMP7716/LMP7716Q) 1.30 mA
? Supply Voltage Range 1.8V to 5.5V
? THD+N @ f = 1 kHz 0.001%
? Operating Temperature Range ?40°C to 125°C
? Rail-to-rail Output Swing
? Space Saving SOT-23 Package (LMP7715)
? 8-Pin VSSOP Package
(LMP7716/LMP7716Q)
? LMP7716Q is AEC-Q100 Grade 1
Qualified and is Manufactured
on an Automotive Grade Flow
