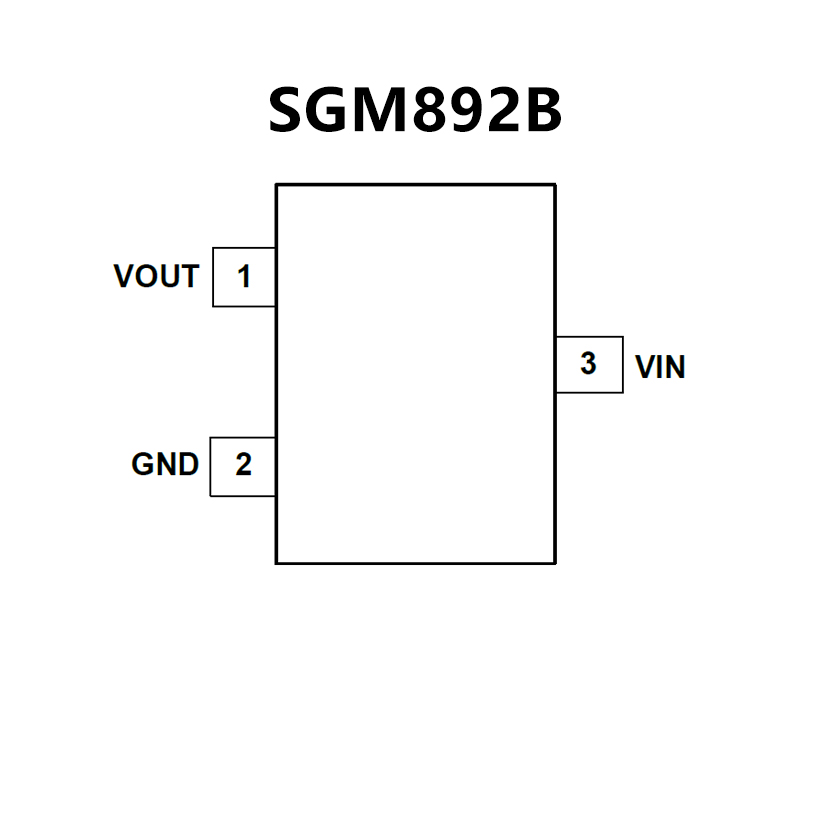

SGM892B-2.7LXN3G.pdf? High Accuracy Detection: ±1% (TYP)
? Low Power Consumption: 0.4μA (TYP) at VIN = 1V
? Detection Voltage Range: 1V to 5V (0.1V Increments)
? Operating Voltage Range: 1V to 6V
? Detection Voltage Temperature Coefficient:
±40ppm/℃ (TYP)
? Manual-Reset Input (SGM893B Only)
? N-Channel Open-Drain Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM892B Available in Green SOT-23-5, SOT-23-3
and UTDFN-1×1-4L Packages
SGM893B Available in Green SOT-23-5 and
UTDFN-1×1-4L Packages

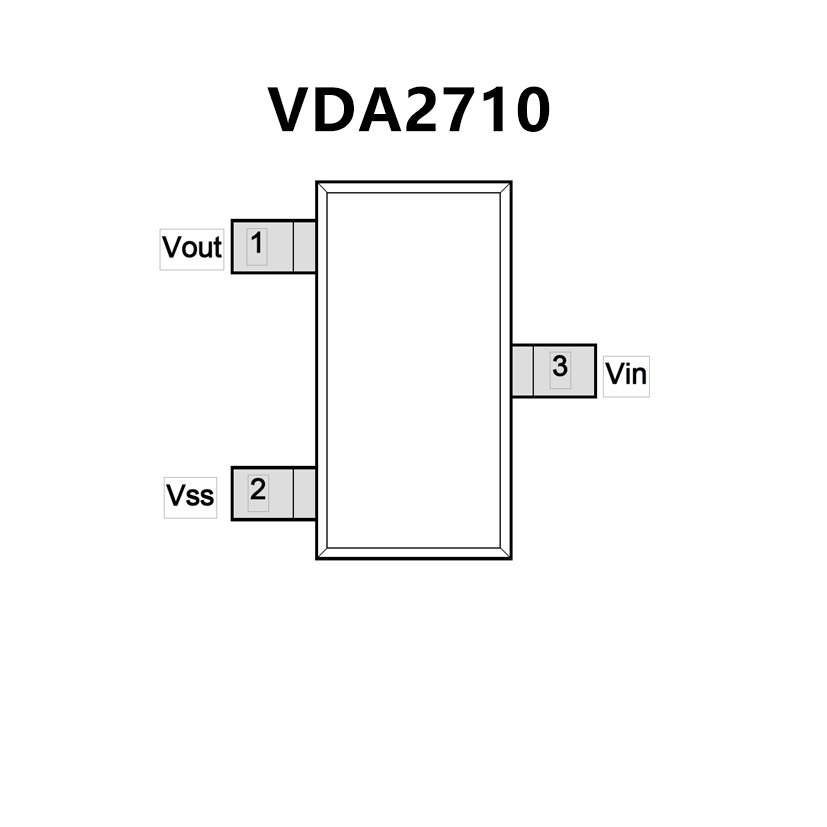

? Detection voltage range
0.8V~6.0V (selectable with a step of 0.1V)
? Operating voltage range 0.7V~6.0V
? High accuracy detection voltage ±1%
(VDET=1.8V~6.0V) / ±2% (VDET=0.8V~1.7V)
? Detection voltage temperature characteristics
Typ. ±20ppm/°C (VDET = 1.8V~6.0V)
? Output types CMOS or N-channel open drain
? Low current consumption Typ. 0.6μA (VIN = 1.5V)
? Operating temperature range –40°C ~ +85°C
? Small package SOT-23 (2.9×2.8×1.1mm
