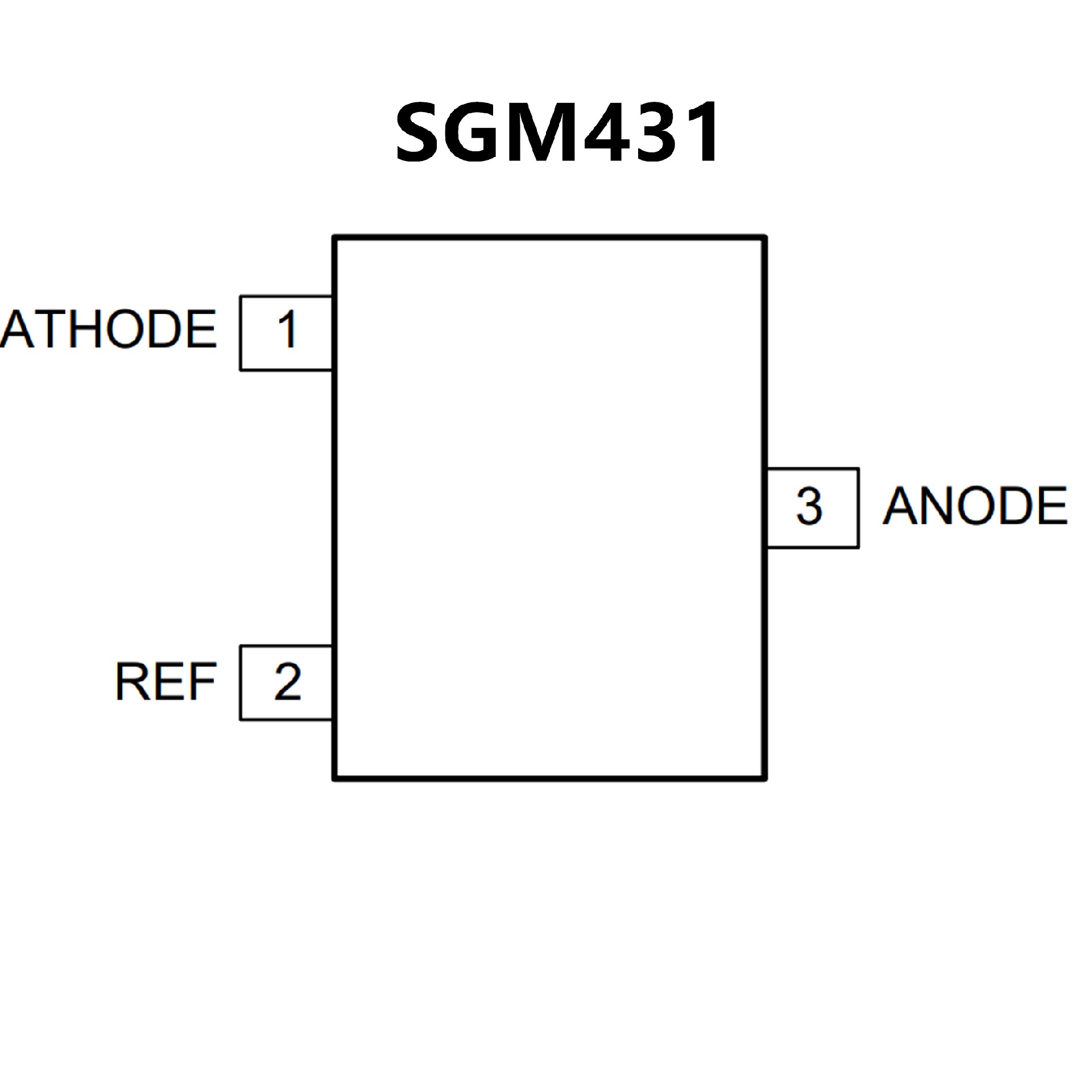

SGM431.pdf? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature
Range: -40℃ to +125℃
? The SGM431 is available in Green SOIC-8,
SOT-23, SOT-89-3, SOT-23-5 and SC70-6 Packages
? The SGM431B is available in Green
SOIC-8, SOT-23, SOT-89-3 and SOT-23-5 Packages
? Precision reference voltage :
LA431O : 2.495V±0.4%
LA431N : 2.495V±1.0%
? Adjustable output voltage is VREF to 36V
? Sink current capability is 120mA
? Low dynamic output impedance is 0.2? (typ.)
? Minimum Cathode current for
regulation is 0.1mA (typ.)
? Plastic material has UL flammability
classification 94V-0
