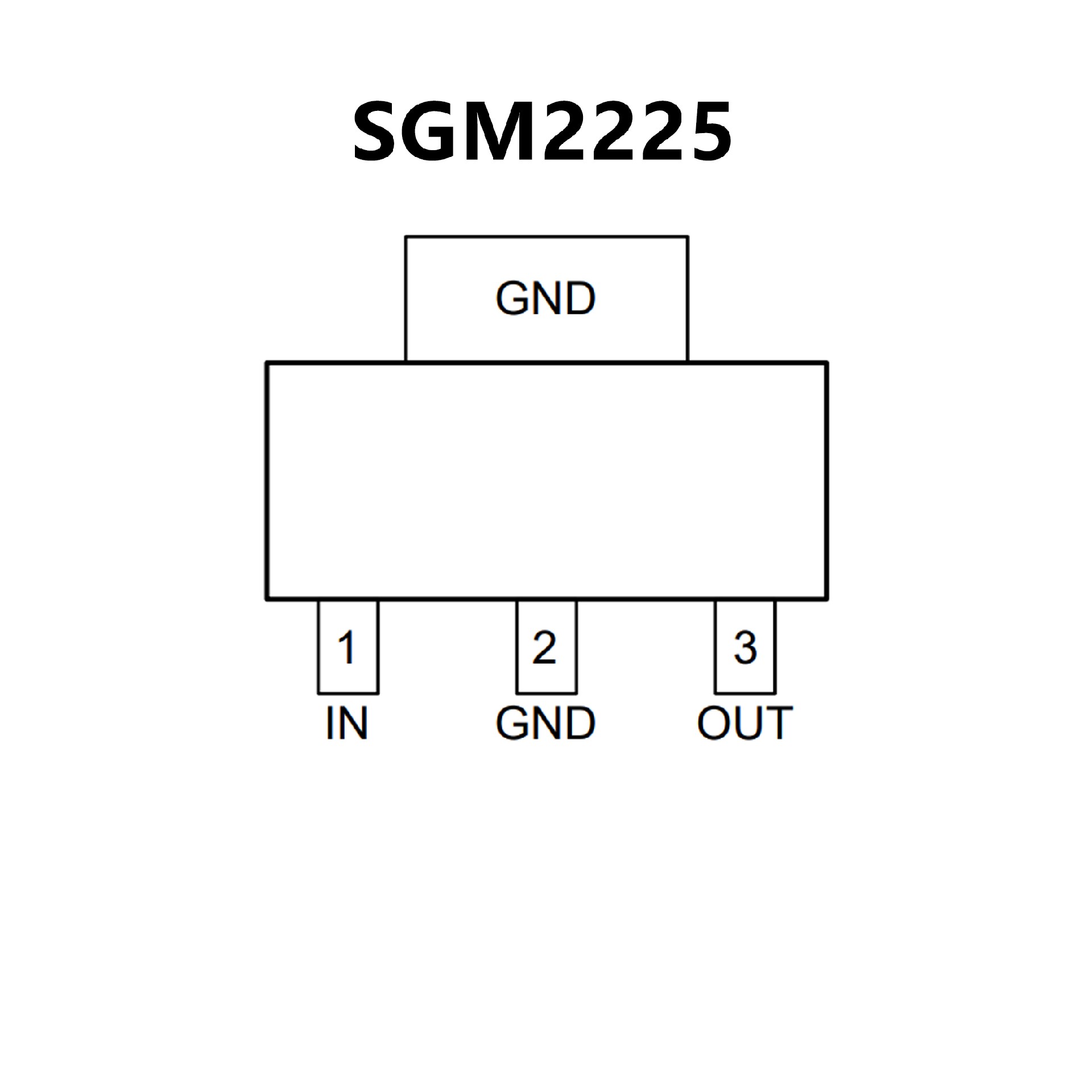

SGM2225.pdf? Wide Operating Input Voltage Range: 3.6V to 36V
? Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
? Adjustable Output from 1.8V to 15V
? Output Voltage Accuracy: ±1.5% at +25℃
? Low Dropout Voltage: 450mV (TYP) at 800mA
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3, SOT-89-3,
SOIC-8,TDFN-3×3-8L and TO-263-5B Packages

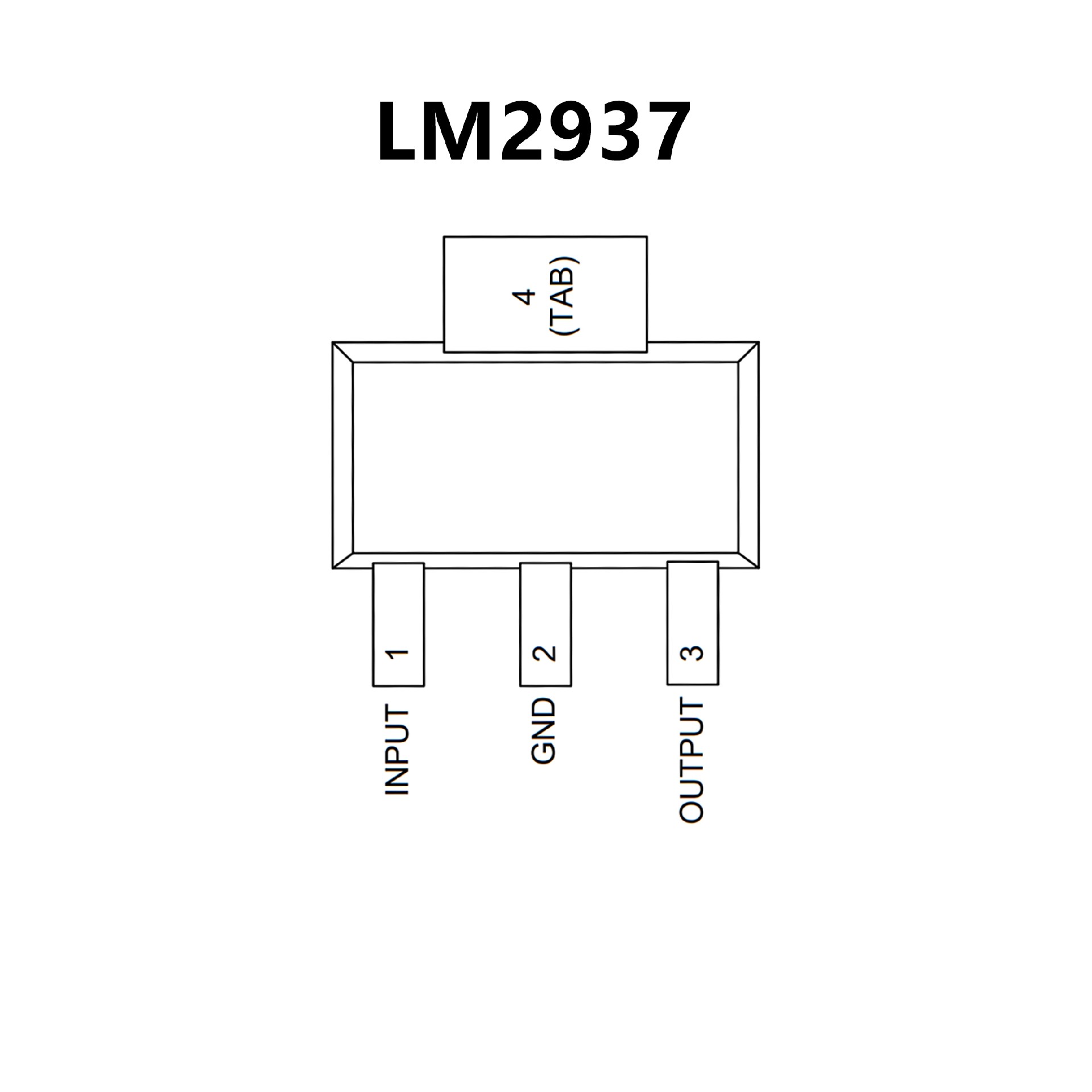

? Fully Specified for Operation Over ?40°C to 125°C
? Output Current in Excess of 500 mA
? Output Trimmed for 5% Tolerance Under all Operating Conditions
? Typical Dropout Voltage of 0.5 V at Full Rated Load Current
? Wide Output Capacitor ESR Range, up to 3 Ω
? Internal Short Circuit and Thermal Overload Protection
? Reverse Battery Protection
? 60-V Input Transient Protection
? Mirror Image Insertion Protection
