SGM13002A.pdf? High Gain:

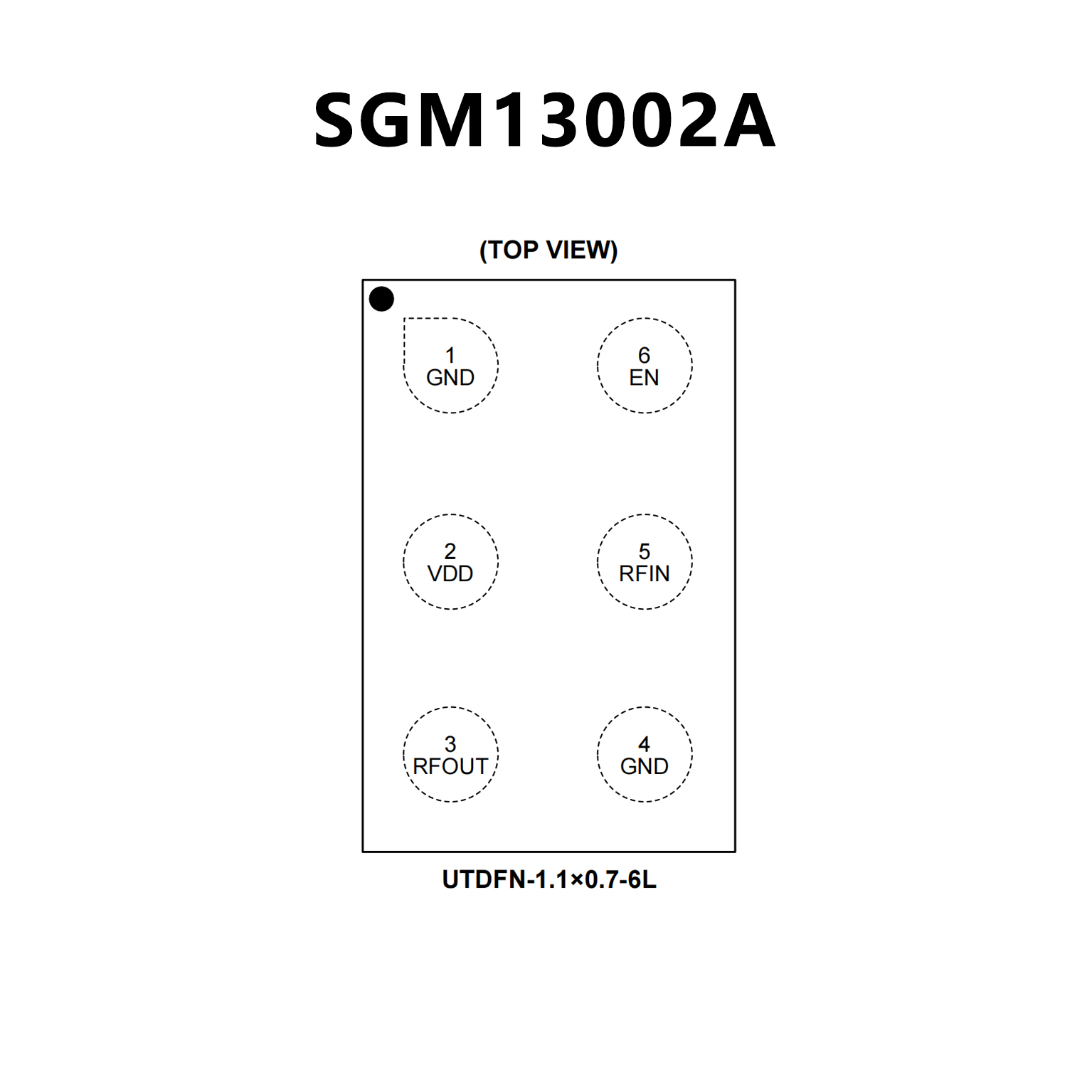

? Available in a Green UTDFN-1.1×0.7-6L Package
? Cover full GNSS L1 band,from 1559 MHz to 1610 MHz
? Noise figure (NF) = 0.55 dB
? Gain = 18.5 dB
? High input 1 dB compression point of ?7 dBm
? High out of band IP3i of 6 dBm
? Supply voltage 1.5 V to 3.1 V
? Self shielding package concept
? Integrated supply decoupling capacitor
? Optimized performance at a supply current of 4.6 mA
? Power-down mode current consumption < 1 ?A
? Integrated temperature stabilized bias for easy design
? Require only one input matching inductor
? Input and output DC decoupled
? ESD protection on all pins (HBM > 2 kV)
? Integrated matching for the output

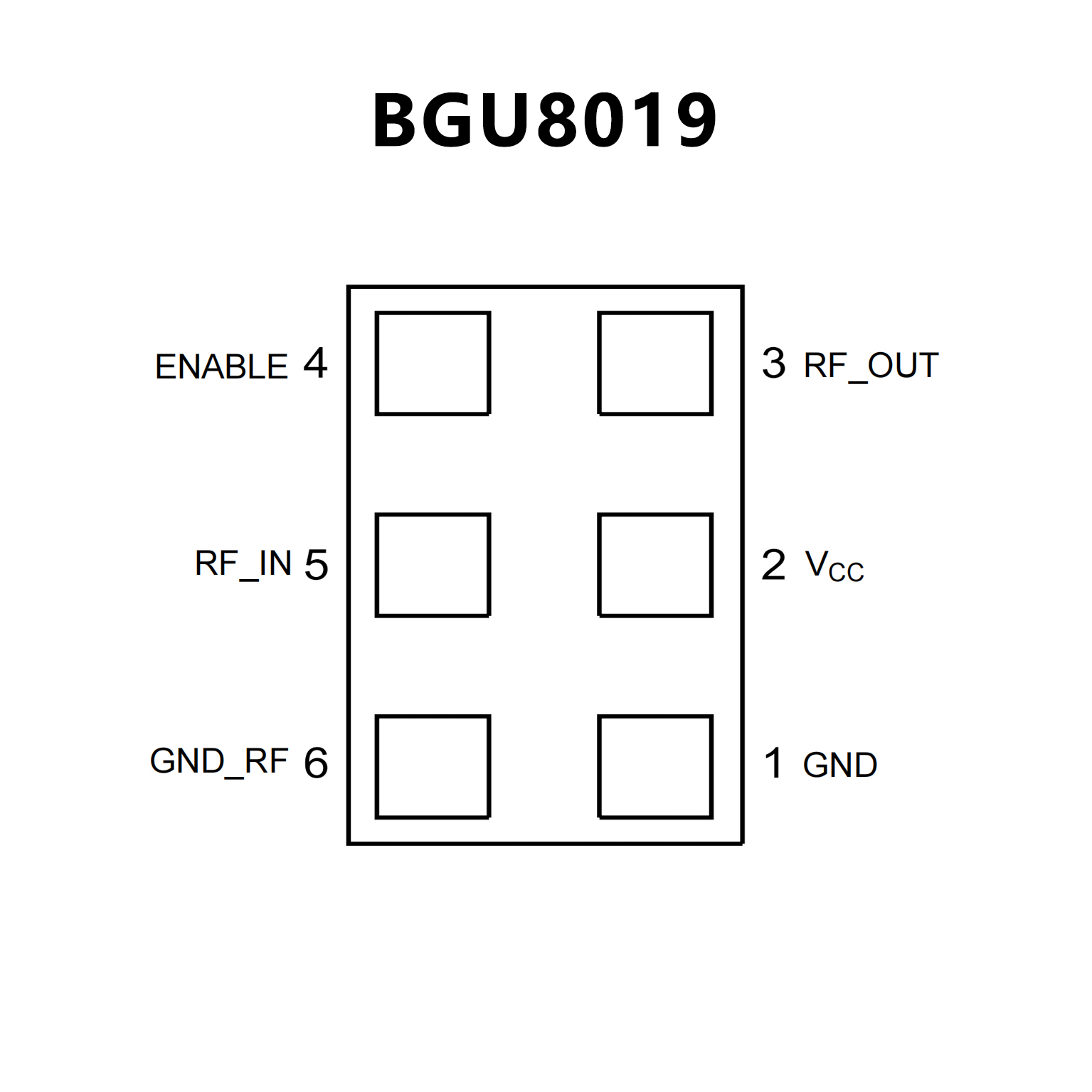

? Available in 6-pins leadless package 1.1 mmx0.7 mm
x0.37 mm; 0.4 mm pitch: SOT1232
? 180 GHz transit frequency - SiGe:C technology
? Moisture sensitivity level of 1
