SCT52A40.pdf? Wide supply rail from 8V-24V
? Drives Both High-side and Low-side N-ChannelMOSFET
? 4A Peak Output Source and Sink Current
? Bootstrap Supply Voltage Range up to 120V
? Integrated Bootstrap Diode
? TTL Compatible Input, -10V Input Capability
? Quiescent Current 252μA
? 45ns Propagation Delay Times
? 2ns Delay Matching
? 7ns Rise and 4.5ns Fall Time with 1000pF Load
? 15ns Input Deglitching Time
? 40ns Minimum Pulse Width
? Supply Rail Under-Voltage Lockout (UVLO)
? Operation from -40°C~150oC

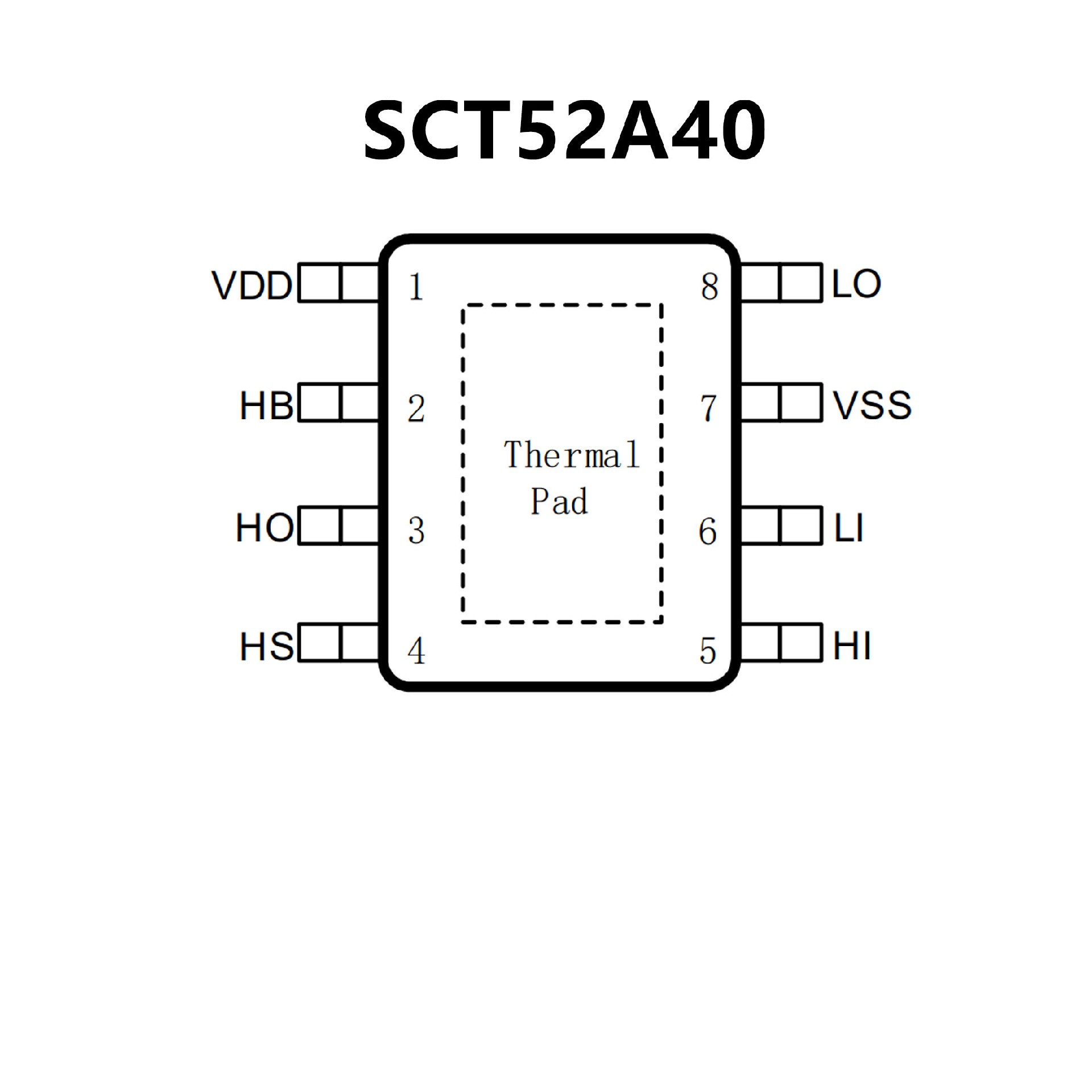

? Available in SOP-8L, ESOP-8L, DFN-9L 3mm x3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x4mm Package
? Drives Two N-Channel MOSFETs in
High-Sideand Low-Side Configuration
? Negative Voltage Handling on HS (–5 V)
? Maximum Boot Voltage of 120 V
? Maximum VDD Voltage of 20 V

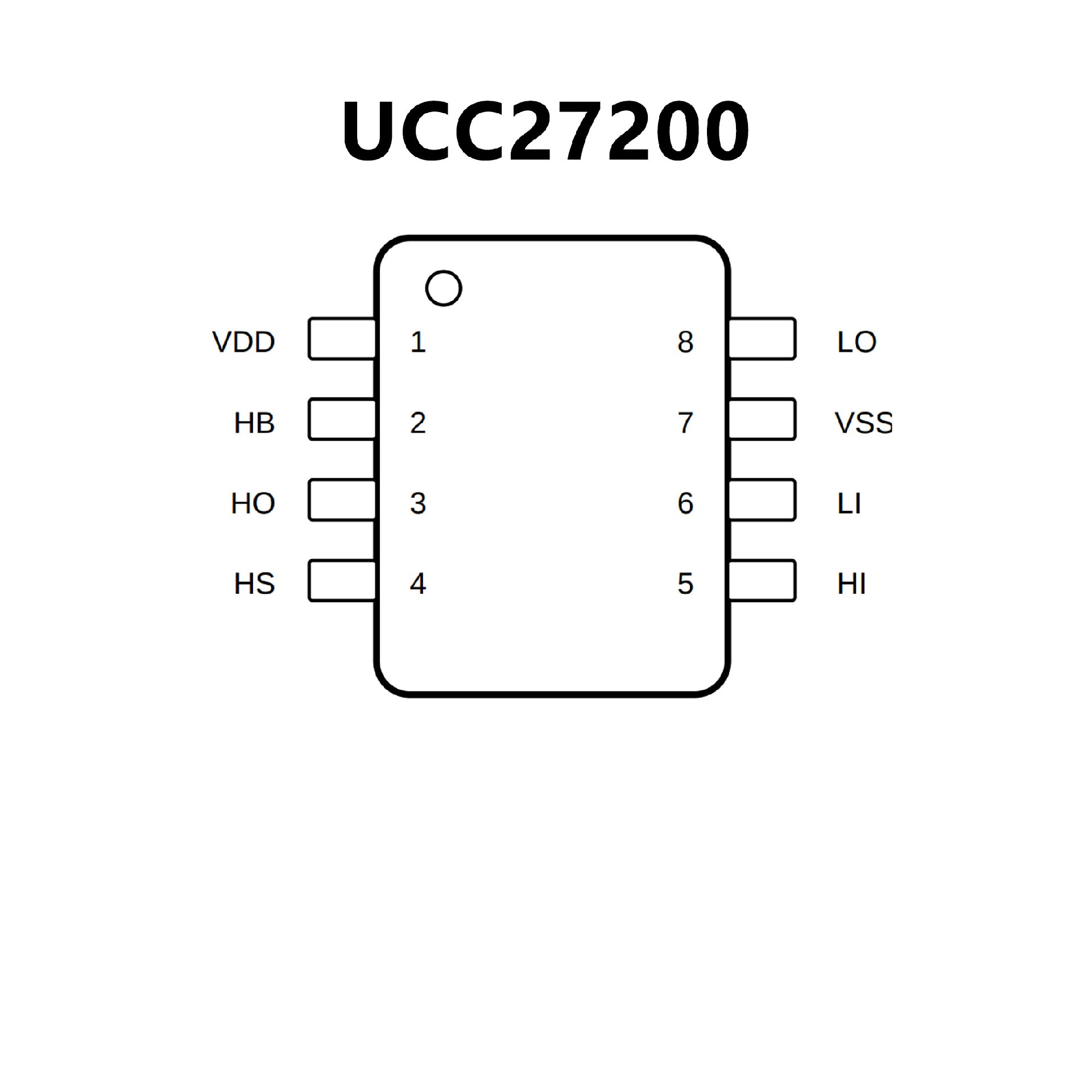

? On-Chip 0.65-V VF, 0.6-Ω RD Bootstrap Diode
? Greater than 1 MHz of Operation
? 20-ns Propagation Delay Times
? 3-A Sink and 3-A Source Output Currents
? 8-ns Rise and 7-ns Fall Time With 1000-pF Load
? 1-ns Delay Matching
? Undervoltage Lockout for High-Side and Low-SideDriver
? Specified from –40°C to 140°C
