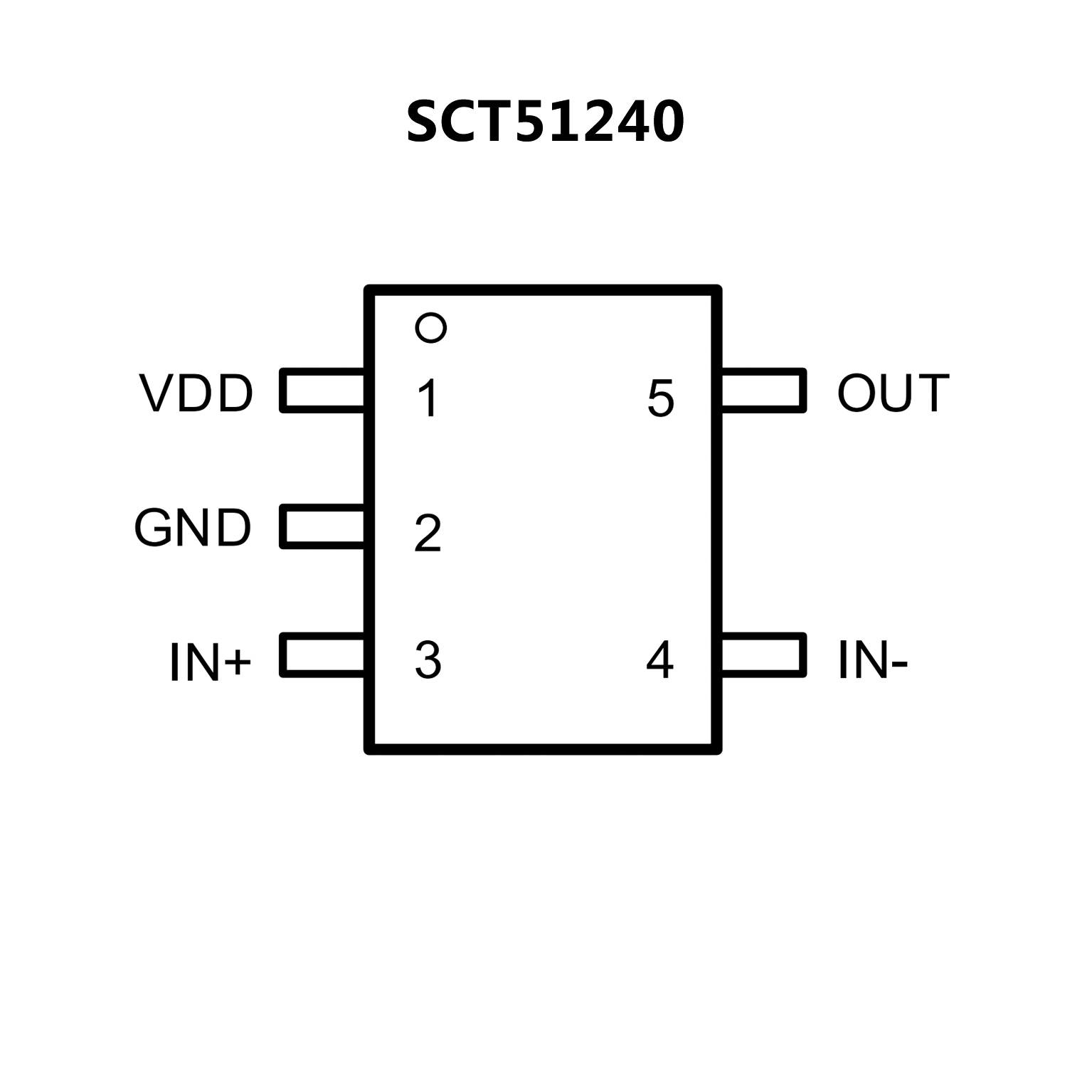

SCT51240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Dual Input Configuration: Non-Inverting (IN+)
or Inverting (IN-) Input
? Negative Input Voltage Capability: Down to -5V
? TTL Input-Logic Threshold
? Propagation Delay: 12ns
? Fast Rising and Falling Time: 9ns and 6ns
? Low Quiescent Current: 38uA
? Under Voltage Lock Out Protection of Supply
Voltage
? Output Low When Input Floating
? Thermal Shutdown Protection: 170°C
? Available in TSOT23-5L Package

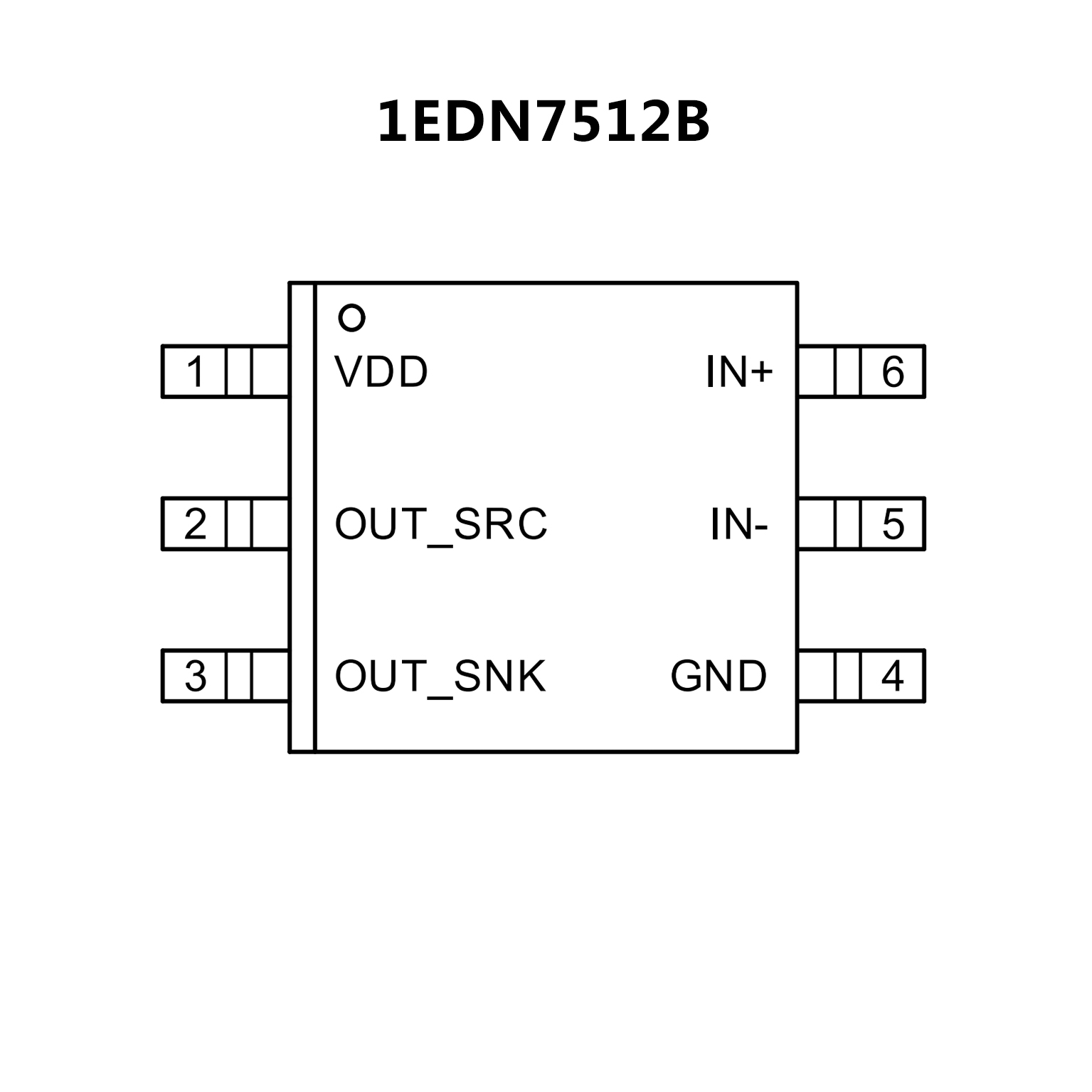

Fast, Precise, Strong and Compatible
? 5 ns slew rate to support high speed Superjunction
MOSFETTM (like CoolMos C7) or GaN devices
? 19 ns propagation delay precision for fast MOSFET
and GaN switching
? 8 A sink and 4 A source driver capability enables fast
switching for very high efficiency applications and
powers low ohmic MOSFET
? Industry standard packages and pinout ease system-
design upgrades
The New Reference in Ruggedness
? 4.2 V and 8 V UVLO (Under Voltage Lock Out) options
ensure instant MOSFET protection under abnormal
conditions
? -10 V input voltage capability delivers robustness and
crucial safety margin when device is driven from
pulse-transformers
? 5 A reverse current robustness eliminates the need for
output protection circuitry
