SCT2630A.pdf? Wide Input Range: 4.5V-60V
? Up to 3.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 80mΩ High-Side
? Low Quiescent Current: 160uA
? Pulse Skipping Mode (PSM) in light load
?130ns Minimum On-time
? 4ms Internal Soft-start Time
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable Input Voltage
Under-Voltage Lock Out Protection(UVLO) Threshold and
Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? 4.5 V to 60 V (65 V Abs Max) Input Range
? Current Mode Control Converter
? 92-mΩ High-Side MOSFET
? High Efficiency at Light Loads with a Pulse Skipping Eco-mode?
? 146 μA Operating Quiescent Current
? 1 μA Shutdown Current
? 100 kHz to 2.5 MHz Fixed Switching Frequency
? Synchronizes to External Clock
? Adjustable UVLO Voltage and Hysteresis
? Internal Soft-Start
? Accurate Cycle-by-Cycle Current Limit, Thermal, OVP,
and Frequency Foldback Protection
? 0.8-V 1% Internal Voltage Reference

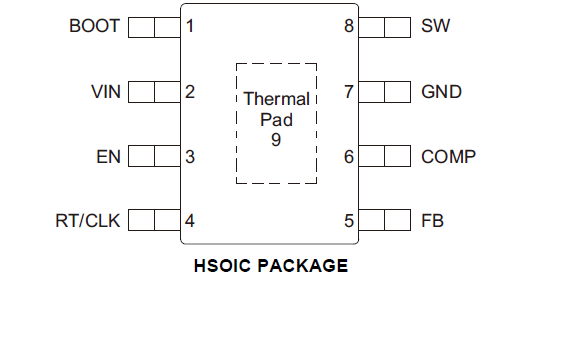

? 8-Pin HSOIC with PowerPAD? Package
? –40°C to 150°C TJ Operating Range
