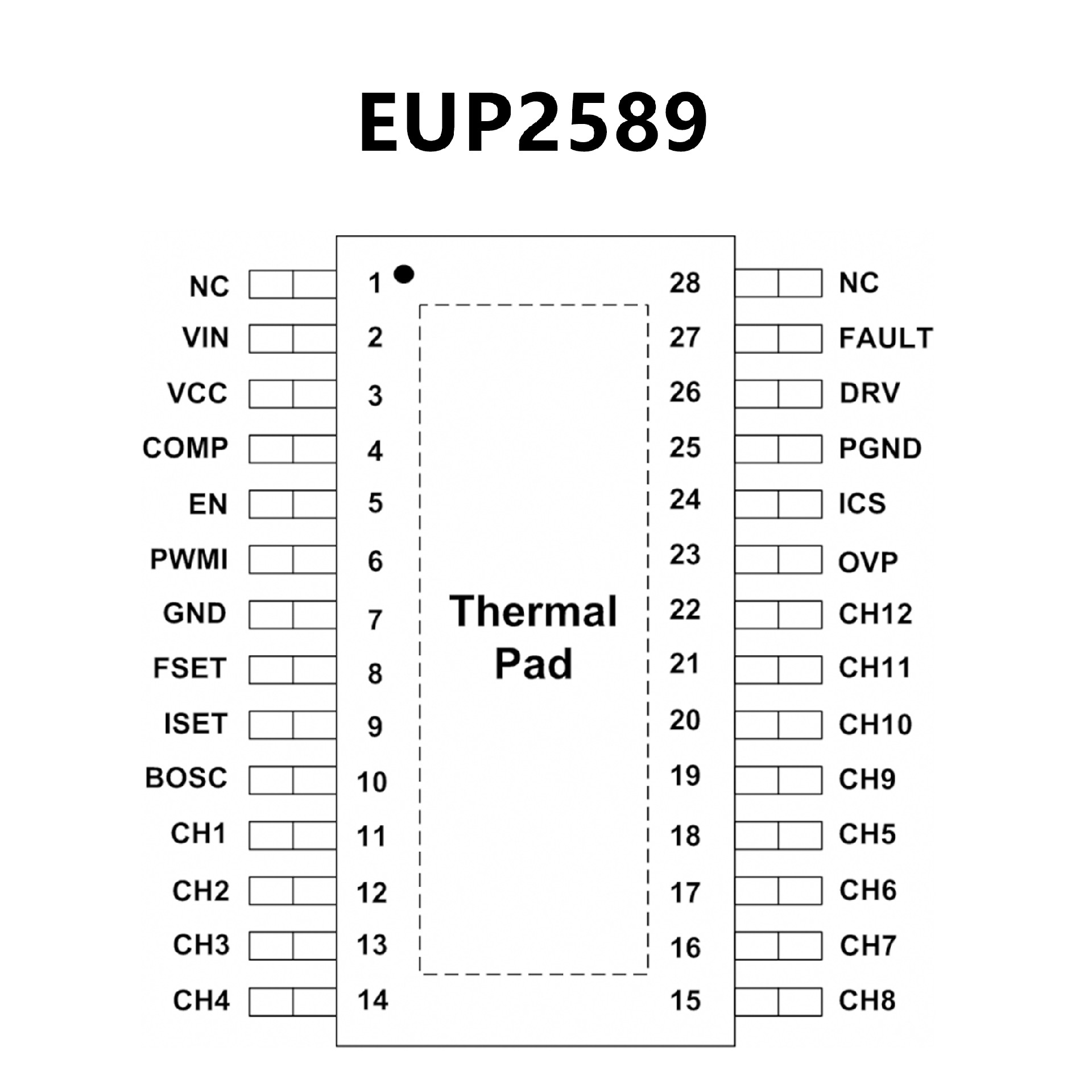

EUP2589.pdf? 3μA shutdown current
? 12 strings in parallel and up to 18 LEDs per
string
? External PWM or DC Voltage Dimming
Control
? Output voltage up to 65V
? Wide Input voltage range 4.5V to 28V
? Better than 1.5% LED Current Regulation
Accuracy Between Strings
? Boost Switching frequency can be programmed
by external resistor
? Multiple Fault Protections
-Current Limit protection
-Output Short circuit detection
-Over-temperature protection
-Output Over-voltage protection
? LED current turn off in shutdown mode
? Integrated UVLO/ Over Thermal protection
? Minimal 0.5μs LED On-Time regulation
? Thermal Enhanced 28pin TSSOP28 Package
? RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

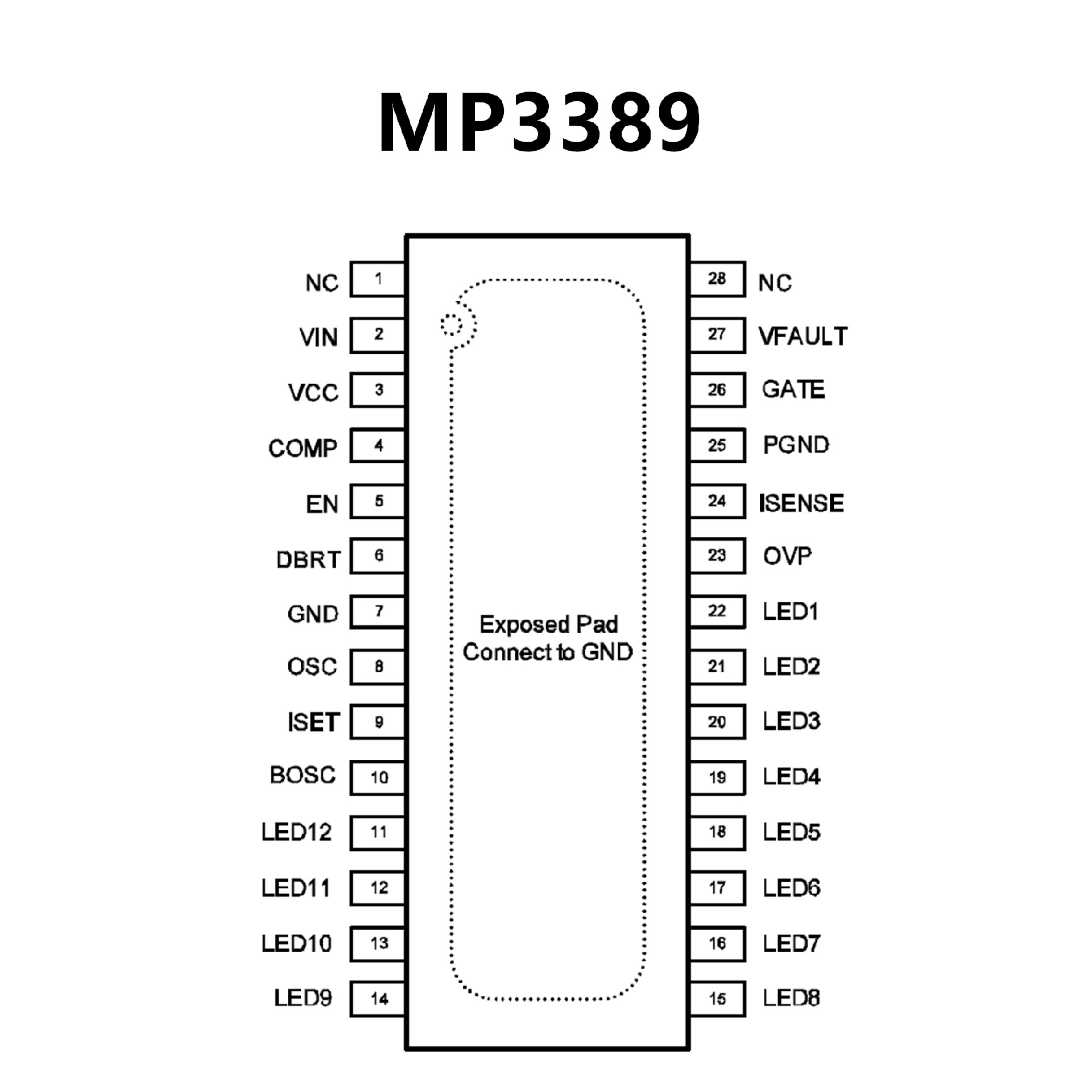

? High Efficiency and Small Size
? 5V to 28V Input Voltage Range
? Balanced Driver for 12 Strings of WLEDs
? Maximum 60mA for Each String
? 2.5% Current Matching Accuracy Between
Strings
? Programmable Switching Frequency
? PWM or DC Input Burst PWM Dimming
? Open and Short LED protection
? Programmable Over-voltage Protection
? Under Voltage Lockout
? Thermal Shutdown
? 28-pin TSSOP and 28-pin SOIC Package
