Low-Power, 14-Bit, 500kSPS, 8 Channels and 4 Channels Unipolar Inputs Analog-to-Digital Converters.
SGM5208-14
SGM5208-14.pdf
SGM5208-14.pdf
No.14052
FEATURES
? Low-Power, Flexible Supply Range:
2.7V to 5.5V Analog Supply
8.7mW (250kSPS in Auto-NAP Mode, VA = 2.7V,
VBD = 2.7V)
14.2mW (500kSPS, VA = 2.7V, VBD = 2.7V)
? Up to 500kSPS Sampling Rate
? Excellent DC Performance:
±1.2 LSB Typical, ±2 LSB Maximum INL at 2.7V
±0.6 LSB Typical, -1, 1.5LSB Maximum DNL at 2.7V
14-Bit NMC Over Temperature
? Excellent AC Performance at 5V, fIN = 1kHz:
80dB SNR, 87dB SFDR, -83dB THD
? Flexible Analog Input Arrangement:
On-Chip 8 Channels Mux with Breakout
Auto, Manual Channel Select and Trigger
? Other Hardware Features:
On-Chip Conversion Clock (CCLK)
Software, Hardware Reset
Programmable Status, Polarity EOC/nINT
Daisy-Chain Mode
Global nCONVST (Independent of nCS)
Deep, Nap, and Auto-NAP Power-Down Modes
SPI, DSP Compatible Serial Interface
Separate I/O Supply: 2.7V to VA
SCLK up to 40MHz (VA = VBD = 5V)
? Available in Green TQFN-4×4-24L and TSSOP-24
Packages
DESCRIPTION
The SGM5208-14 and SGM5209-14 are 14-bit, high-precision, multi-channel input, successive approximation (SAR) analog-to-digital converters (ADCs).
The SGM5208-14 supports 8 single-ended inputs. The SGM5209-14 supports 4 single-ended inputs. The SGM5208-14 and SGM5209-14 need to work with an external voltage reference. Its available range is 1.2V to 4.2V. The digital interface is compatible to the traditional SPI protocol.
The SGM5208-14 and SGM5209-14 are available in Green TQFN-4×4-24L and TSSOP-24 packages. It operates over an ambient temperature range -40℃ to +125℃.

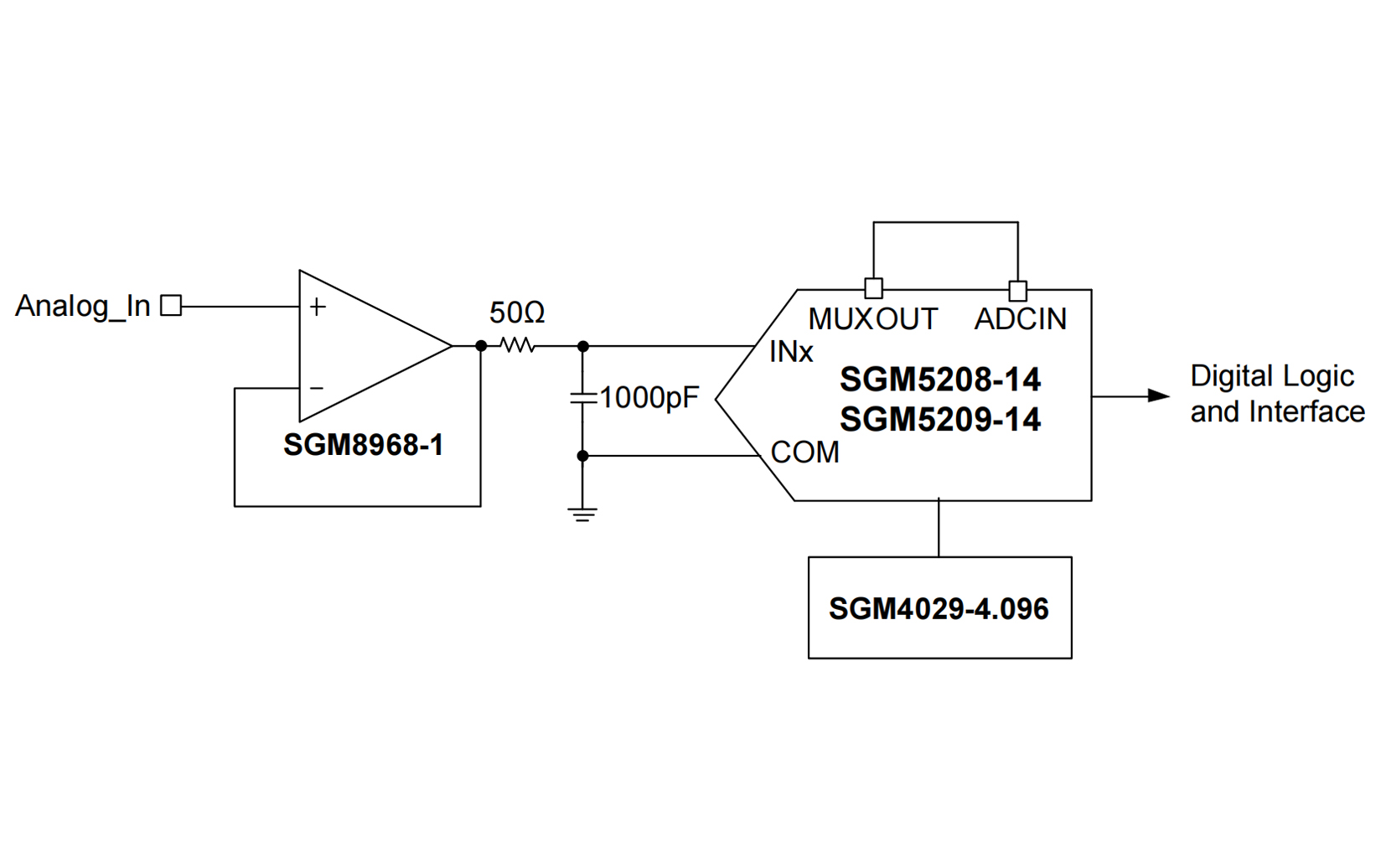

APPLICATION CIRCUIT

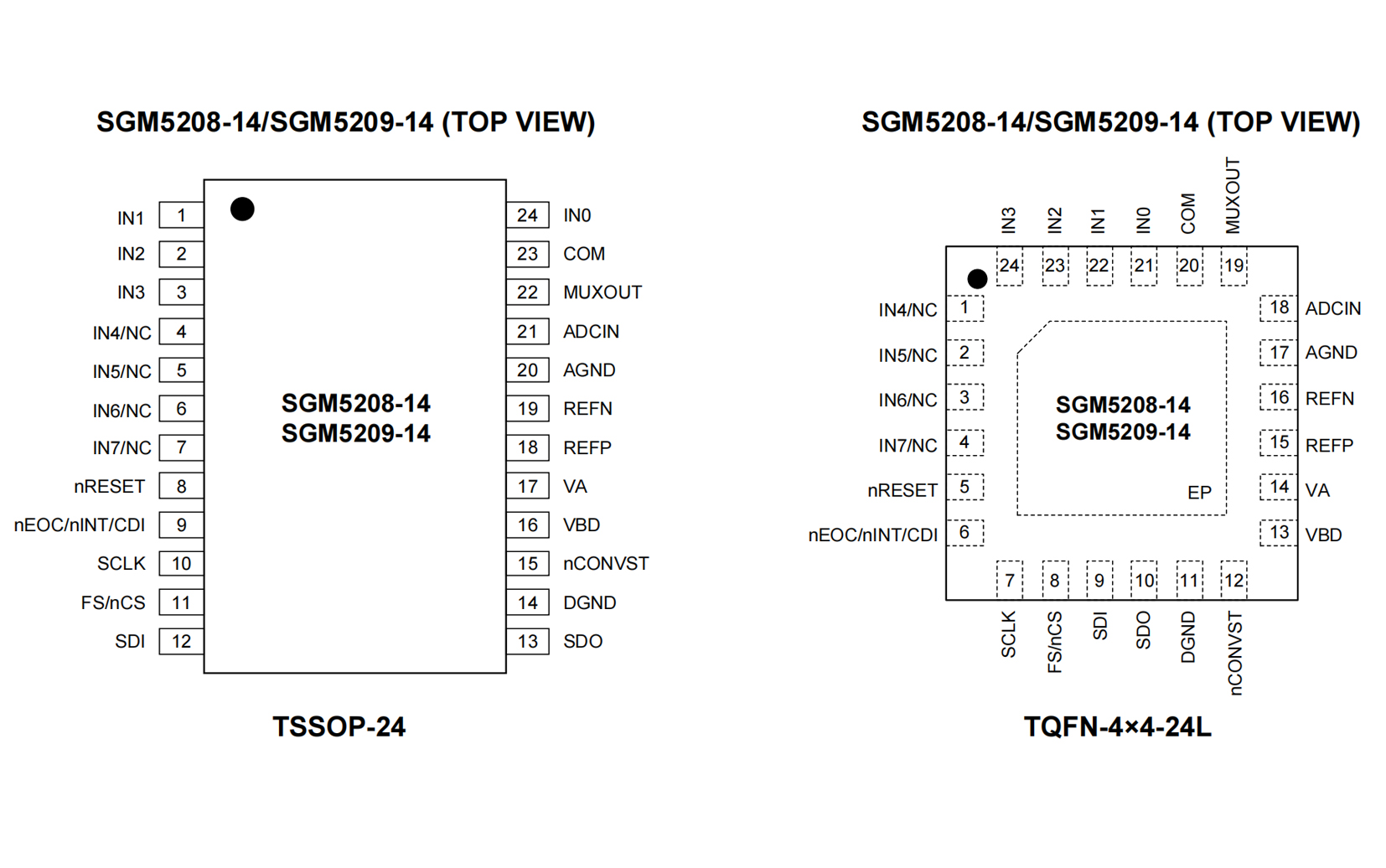

PIN CONFIGUTION
