Low Noise Operational Amplifier, SGM8261-2 Replace OPA1612.
SGM8261-2
SGM8261-2.pdf
SGM8261-2.pdfFEATURES
? Superior Sound Quality
? Low Offset Voltage: ±350μV (MAX)
? Ultra Low Noise: 1.6nV/Hz at 1kHz
? Ultra Low Distortion: 0.00002% at 1kHz
? High Slew Rate: 16V/μs
? Gain-Bandwidth Product: 16MHz (G = +1)
? High Open-Loop Gain: 140dB
? Unity-Gain Stable
? Low Quiescent Current: 3.8mA/Amplifier
? Rail-to-Rail Output
? Support Single or Dual Power Supplies:
3.6V to 36V or ±1.8V to ±18V

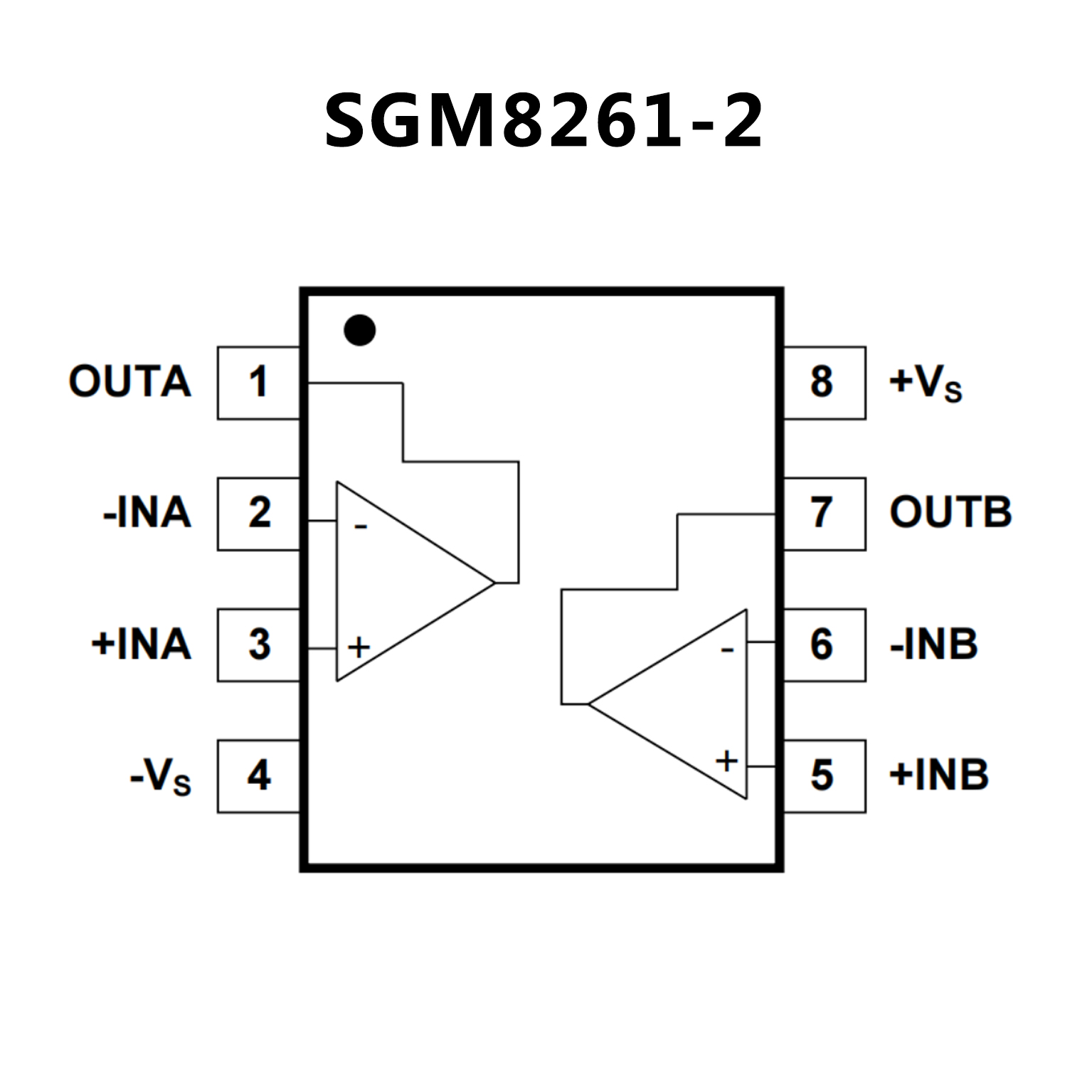

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Superior Sound Quality
? Ultralow Noise: 1.1nV/√Hz at 1kHz
? Ultralow Distortion: 0.000015% AT 1kHz
? High Slew Rate: 27V/μs
? Wide Bandwidth: 40MHz (G = +1)
? High Open-loop Gain: 130dB
? Unity Gain Stable
? Low Quiescent CurrenT: 3.6mA (Single), 7.2mA (Dual)
? Rail-to-Rail Output
? Wide Supply Range: ±2.25V to ±18V
? Single and Dual Versions Available
PIN CONFIGUTION
