Nano power operational Amplifier,SGM8048 Replace MCP6144.
SGM8048
SGM8048.pdf
SGM8048.pdfFEATURES
? Low Quiescent Current: 690nA/Amplifier (TYP)
? Rail-to-Rail Input and Output
? Gain Bandwidth Product: 100kHz (TYP)
? Stable for Gains ≥ 10
? Wide Supply Voltage Range: 1.4V to 5.5V
? -40°C to +85°C Operating Temperature Range
? Available in Green SOP14, TSSOP14 Packages

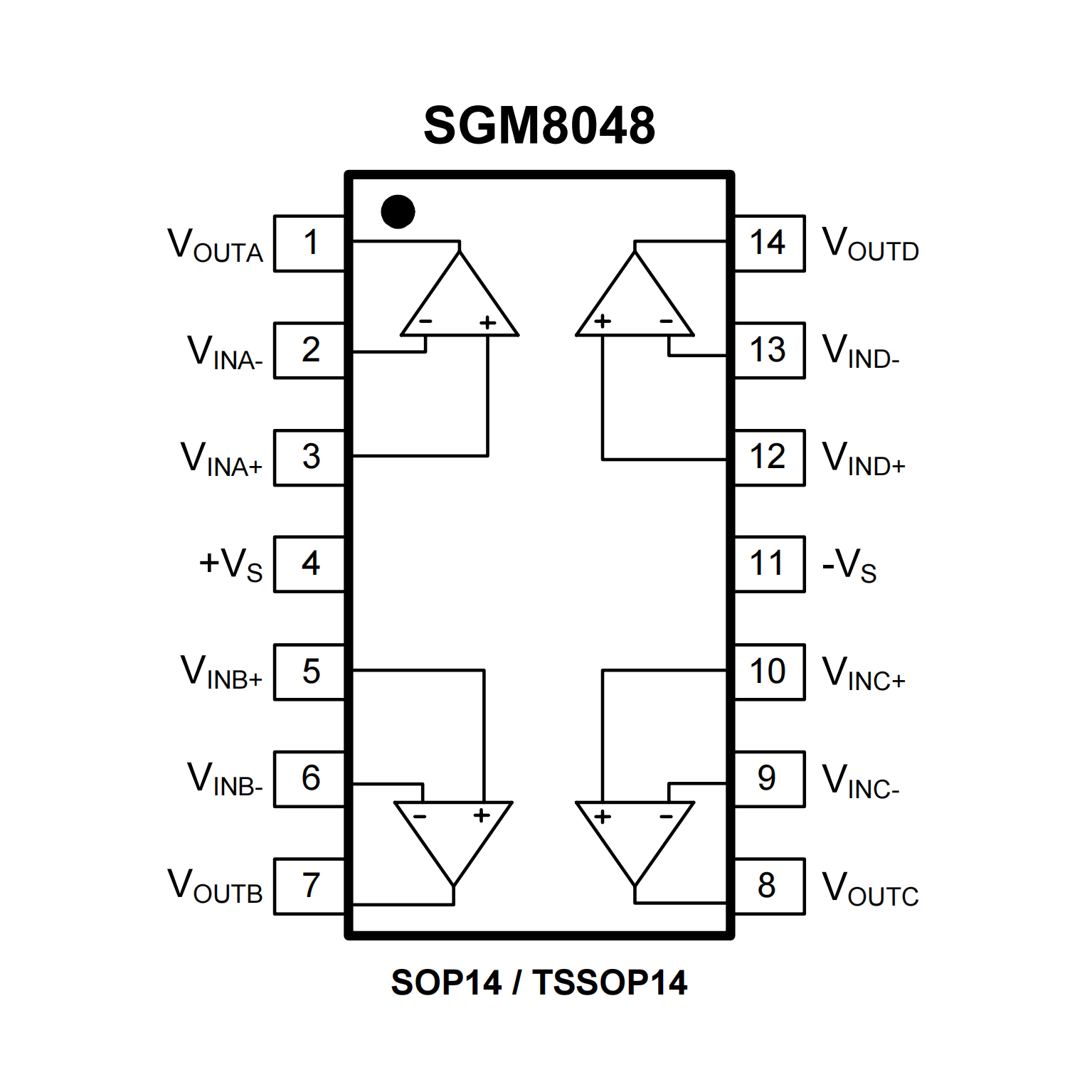

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Quiescent Current: 600 nA/amplifier (typical)
? Gain Bandwidth Product: 100 kHz (typical)
? Stable for gains of 10 V/V or higher
? Rail-to-Rail Input/Output
? Wide Supply Voltage Range: 1.4V to 6.0V
? Available in Single, Dual, and Quad
? Available in 5-lead and 6-lead SOT-23 Packages
? Temperature Ranges:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C

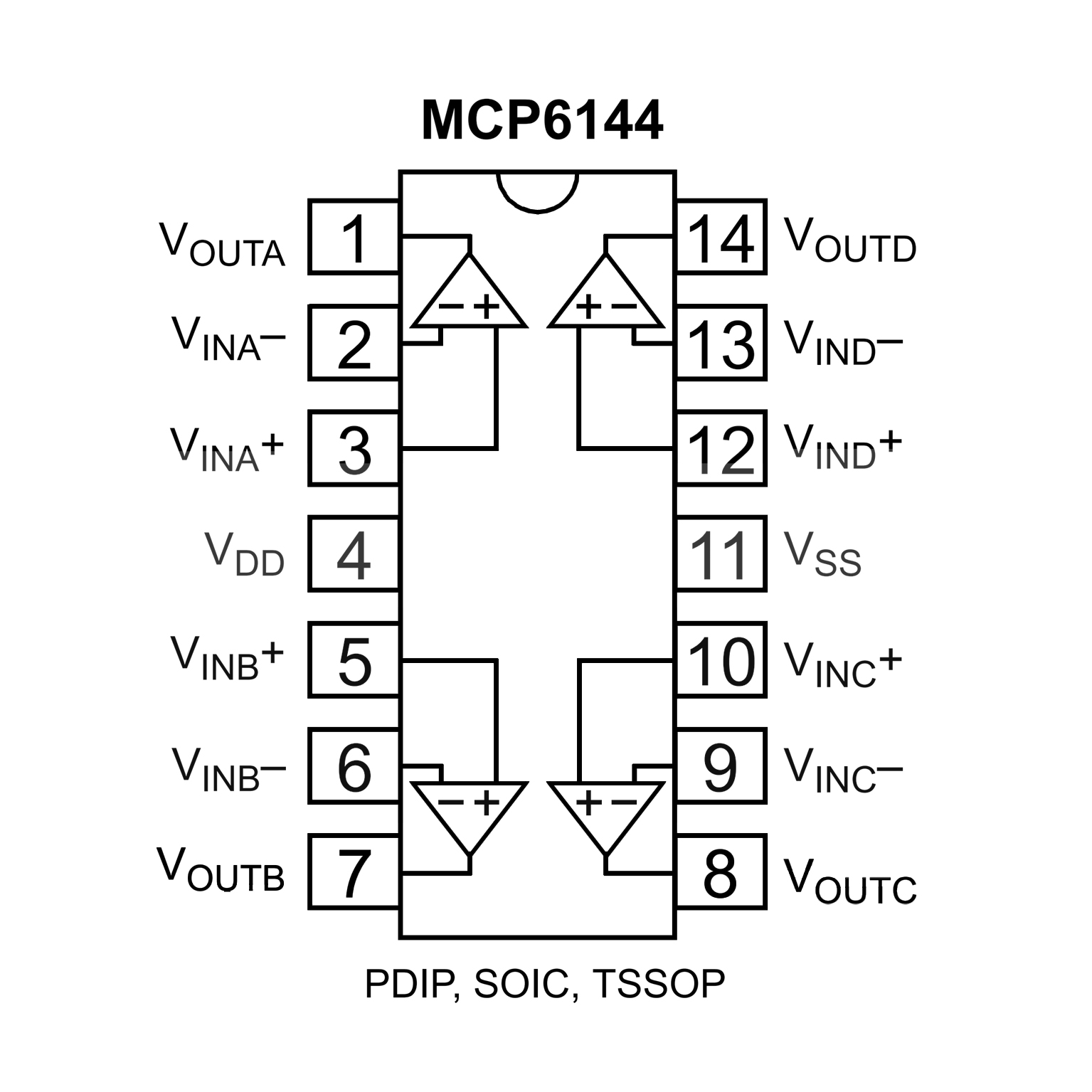

PIN CONFIGUTION
