Automotive Low-side Driver with Self-Protection Featuring Temperature and Current Limit, SGM42401Q P2P NCV8402.
SGM42401Q
SGM42401Q.pdf
SGM42401Q.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Full Set of Protections
Short-Circuit Protection
Over-Voltage Protection
ESD Protection
Thermal Shutdown with Automatic Restart
? Clamp Integrated for Switching of Inductive Loads
? Support Gate Threshold Voltage: 1.75V (TYP)
? dV/dt Robustness
? Output Clamp Voltage: 42V
? Static Drain-to-Source On-Resistance:
90m? (TYP) at 10V
? Continuous Drain Current: 3.5A (TYP)
? Output Peak Current (Thermal Limited): 8.5A
? Logic Level Input Capable of Analog Driving
? Available in a Green SOT-223-3 Package

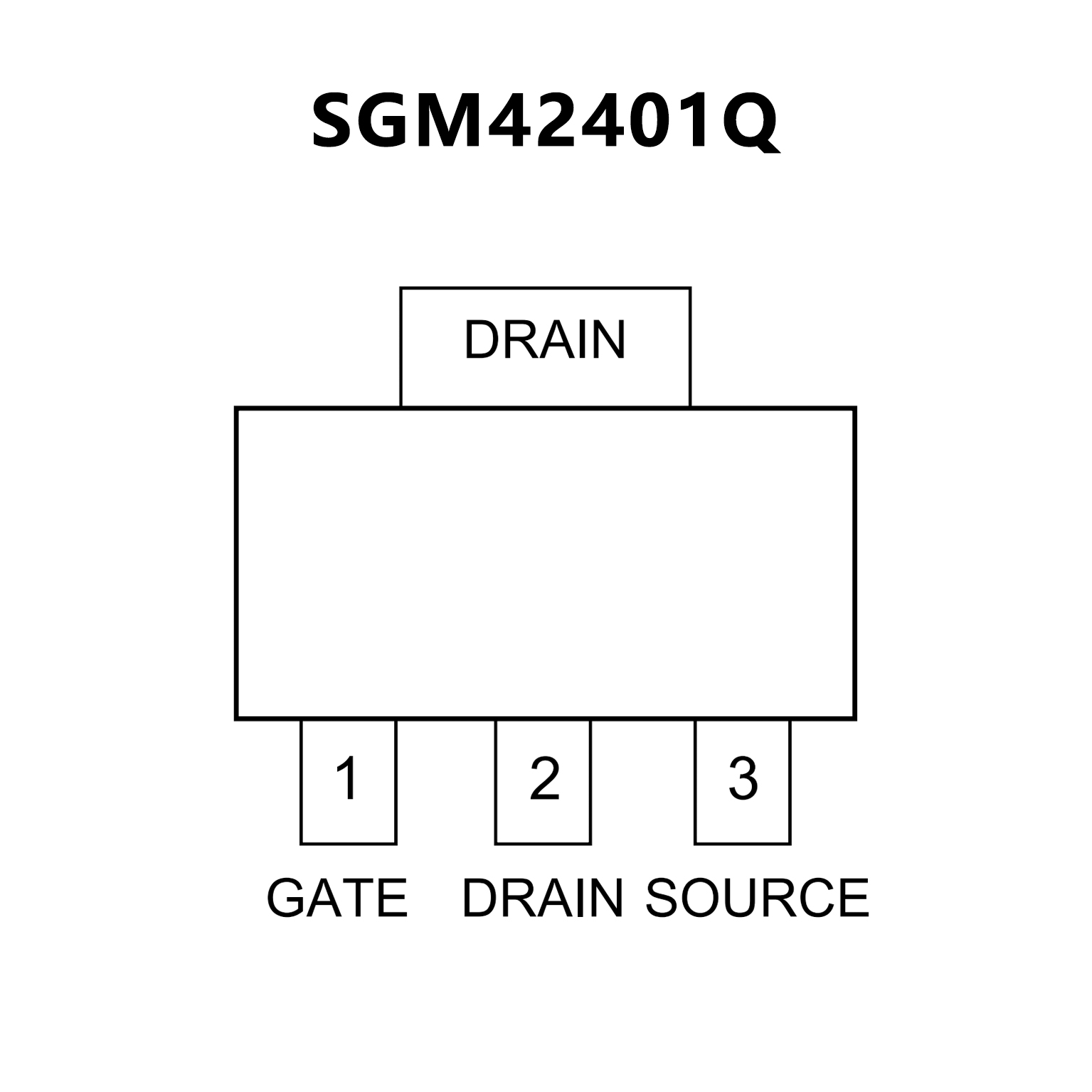

PIN CONFIGUTION
優勢替代
FEATURES
? Short?Circuit Protection
? Thermal Shutdown with Automatic Restart
? Overvoltage Protection
? Integrated Clamp for Inductive Switching
? ESD Protection
? NCV8402AMNWT1G ? Wettable Flanks Product
? dV/dt Robustness
? Analog Drive Capability (Logic Level Input)
? NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements;
AEC?Q101 Qualified and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant

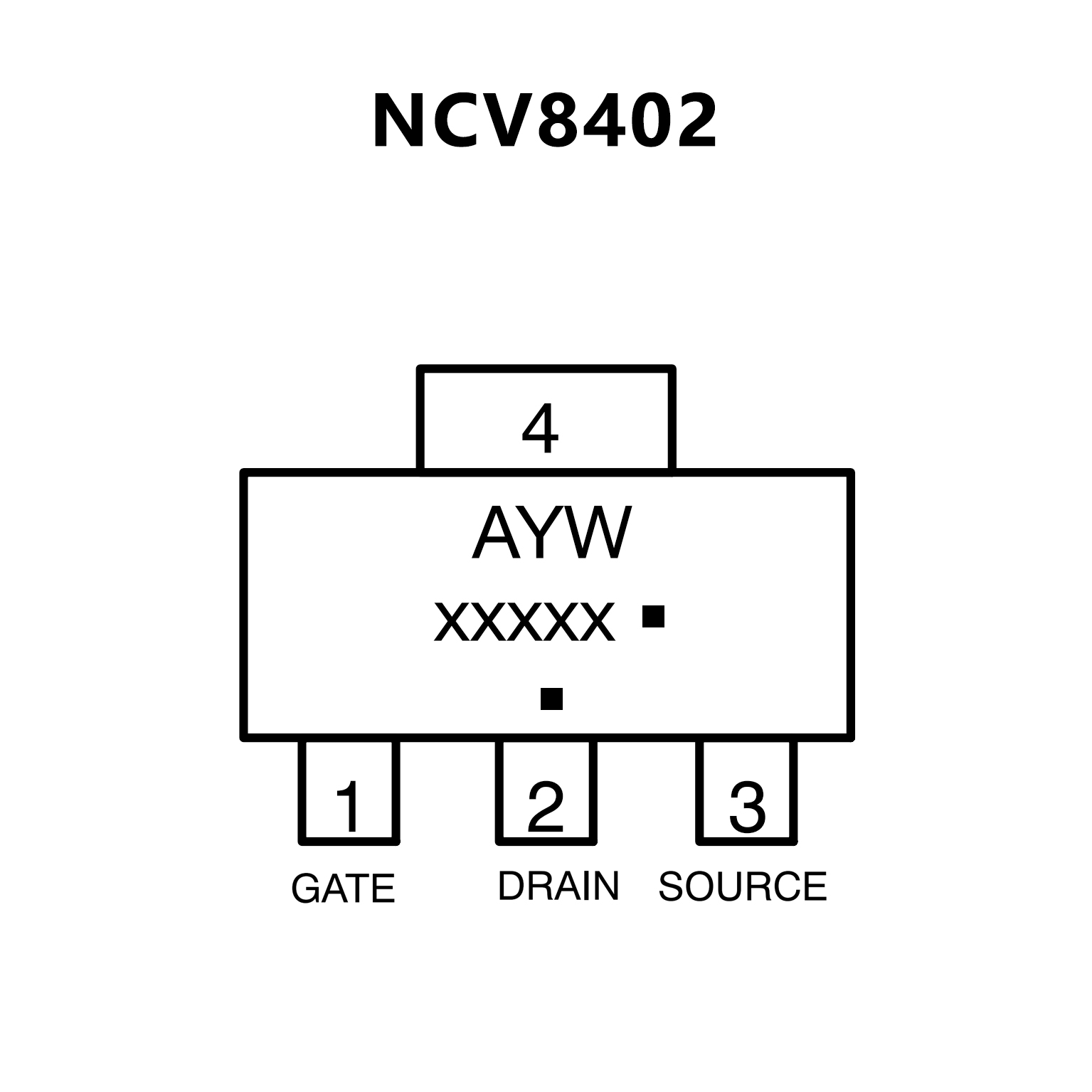

PIN CONFIGUTION
