70mΩ/55mΩ, 3A/2.5A/2A/1.5A/1A/0.5A High-Side Power Switches with Flag, SGM2588 Replace RT9742.
SGM2588
SGM2588.pdf
SGM2588.pdfFEATURES
? 100mΩ (TYP) High-side N-Channel MOSFET
? Input Voltage Range: 2.5V to 5.5V
? Low 23μA Quiescent Current
? Typical 0.1μA Shutdown Current
? Soft-Start Function
? Thermal Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Fault Flag (FAULT) with 13ms Filter Eliminates
False Assertions

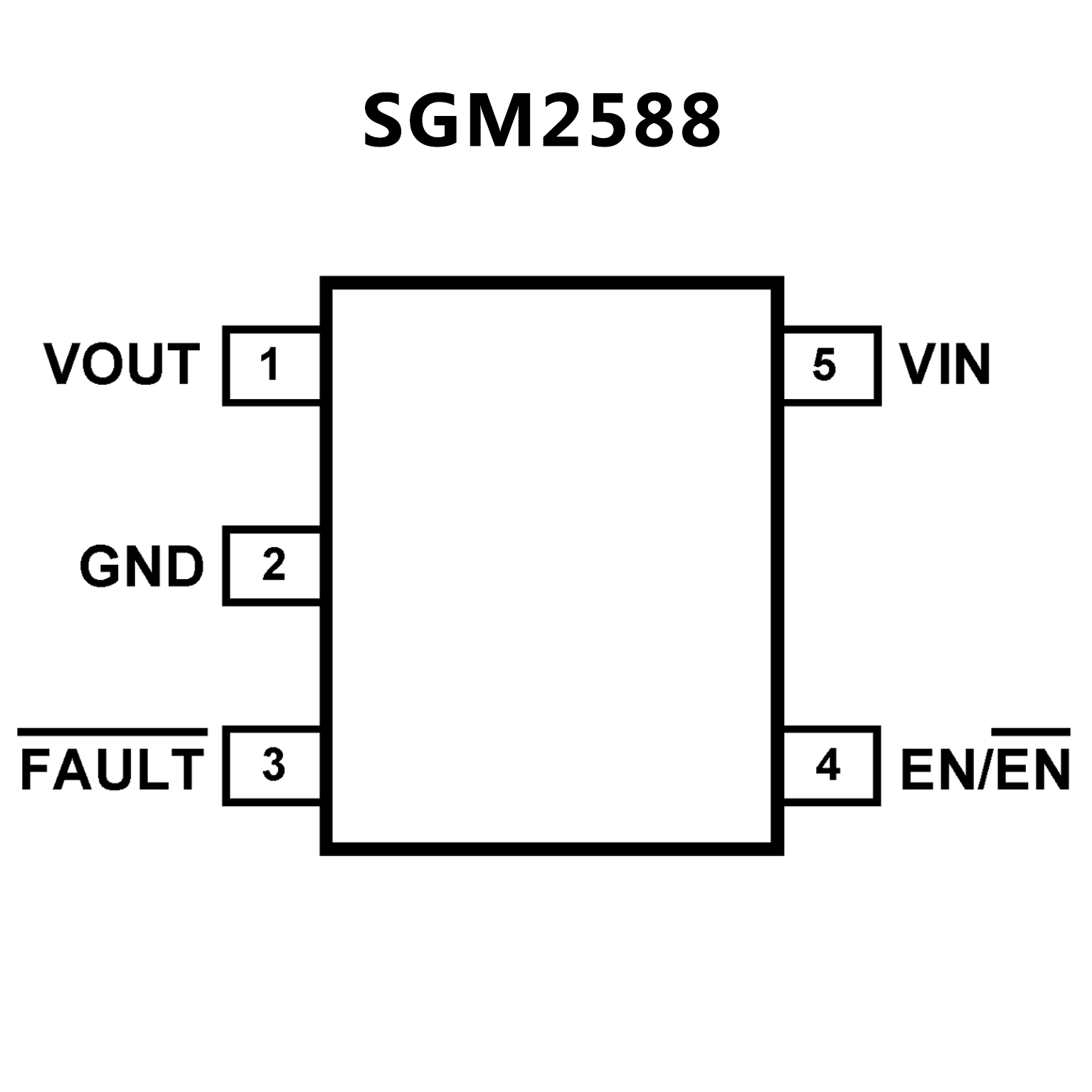

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 70mΩ/55mΩ (typ.) N-MOSFET Switch
? Operating Range : 2.7V to 6V
? Reverse Blocking Current
? Under Voltage Lockout
? Deglitched Fault Report (FLG)
? Thermal Protection with Fold-back
? Over Current Protection
? Short Circuit Protection
? UL Approved?E219878
? Nemko Approved-NO109777

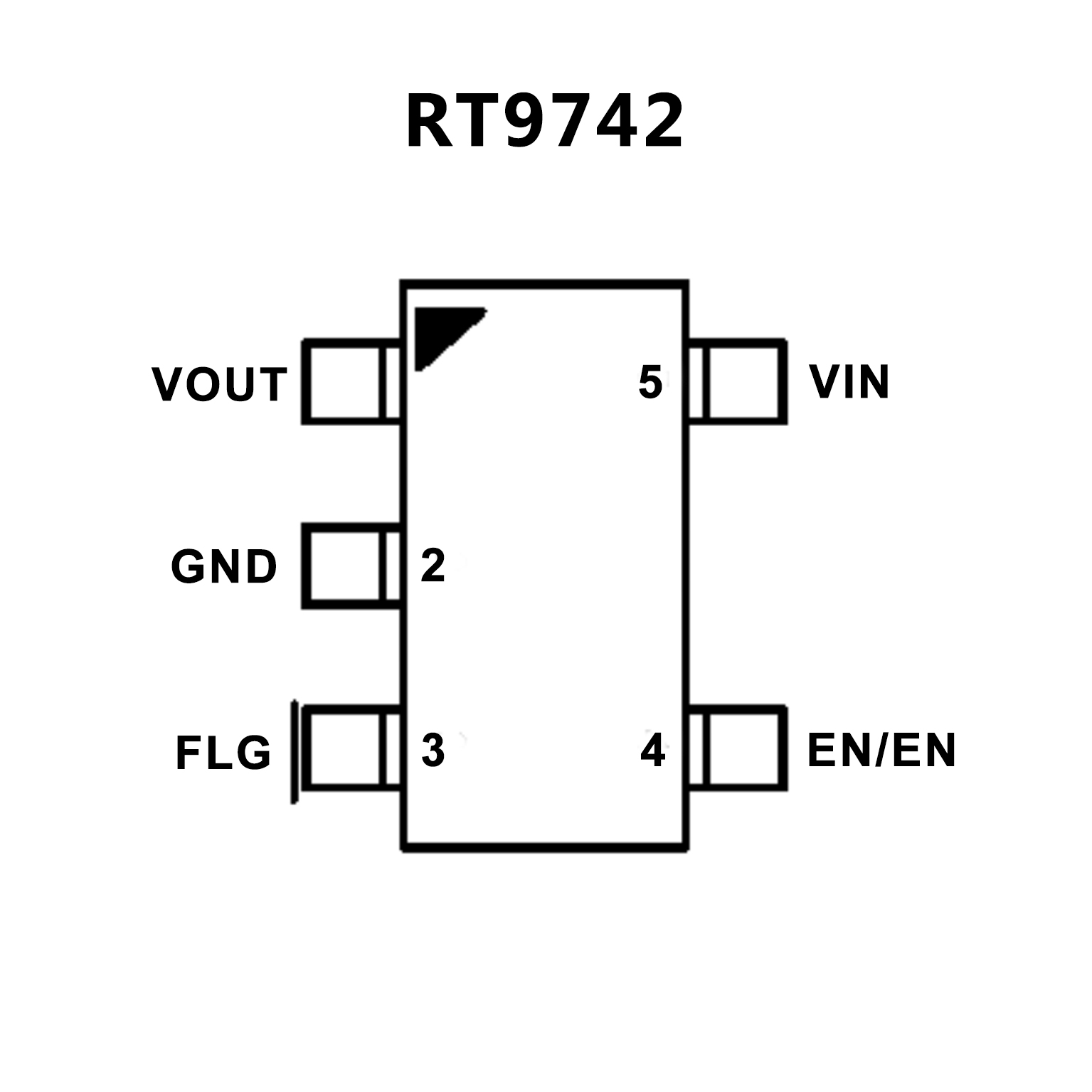

PIN CONFIGUTION
