36V, 150mA, Low PowerAdjustable Output Linear Regulator,SGM2201 Replace MP2013.
SGM2201
SGM2201.pdf
SGM2201.pdfFEATURES
? 2.7V to 36V Input Voltage Range
? 4.2μA Quiescent Supply Current
? Adjustable Output Voltages: 0.8V to 13.2V
? 150mA Nominal Output Current
? Output Voltage Accuracy: ±2.5%
? Thermal Shutdown Protection
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TSOT-23-5 and TDFN-2×3-8L
Packages

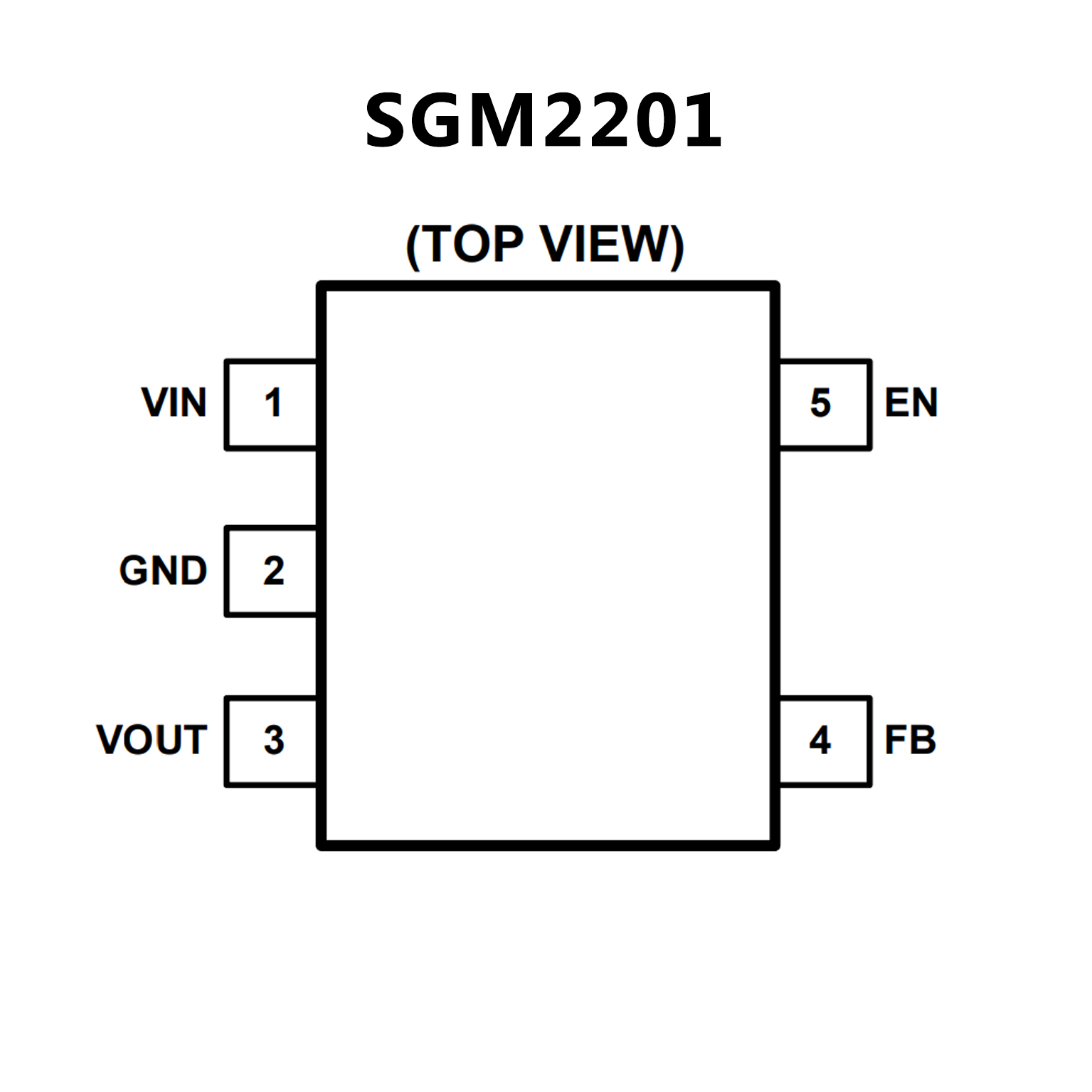

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 2.5V to 40V Input Range
? 3.2μA Quiescent Supply Current
? Stable With low-value output ceramic capacitor (> 0.47 μF)
? 150mA specified current
? 620mV Dropout at 150mA Load
? Available in Fixed and Adjustable output
(1.215 V to 15 V) versions
? Output ±2% Accuracy
? Specified current limit
? Thermal Shutdown
? -40°C to +125°C Specified Junction
Temperature Range
? Available in TSOT23-5, QFN6 (2x2mm), or
QFN8 (3x3mm) Packages

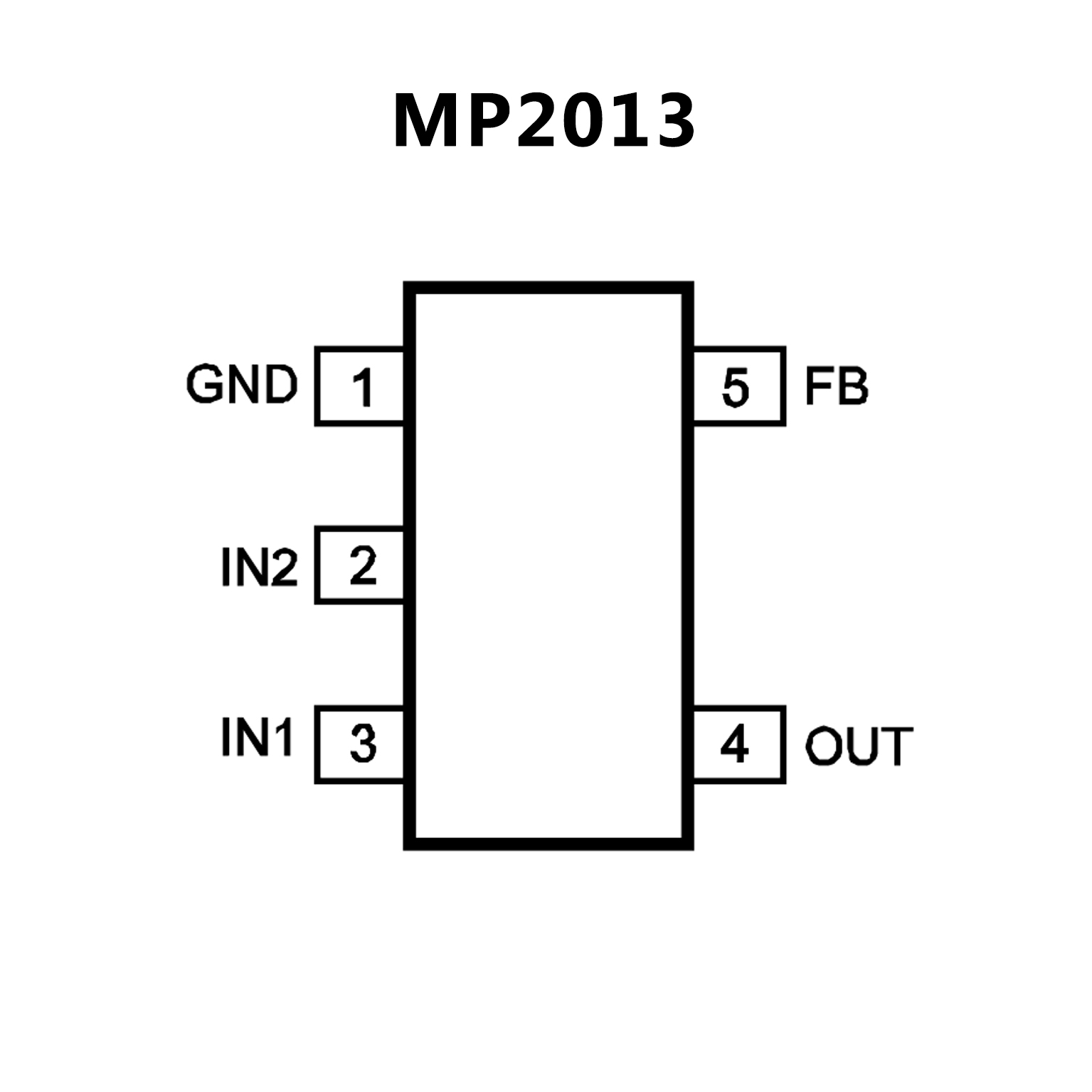

PIN CONFIGUTION
