Ultra-Low Capacitance 1-Channel ESD Protection, SGM12UB1D2 P2P D12V0X1B2LP.
SGM12UB1D2
SGM12UB1D2.pdf
SGM12UB1D2.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±12kV (Air)
IEC 61000-4-2: ±12kV (Contact)
? Rated Peak Pulse Current: 2A
? 0.35pF (TYP) Channel Input Capacitance
? Low Profile Package: UTDFN-1×0.6-2L and
XTDFN-0.6x0.3-2L
? Working Voltage: 12V and Below

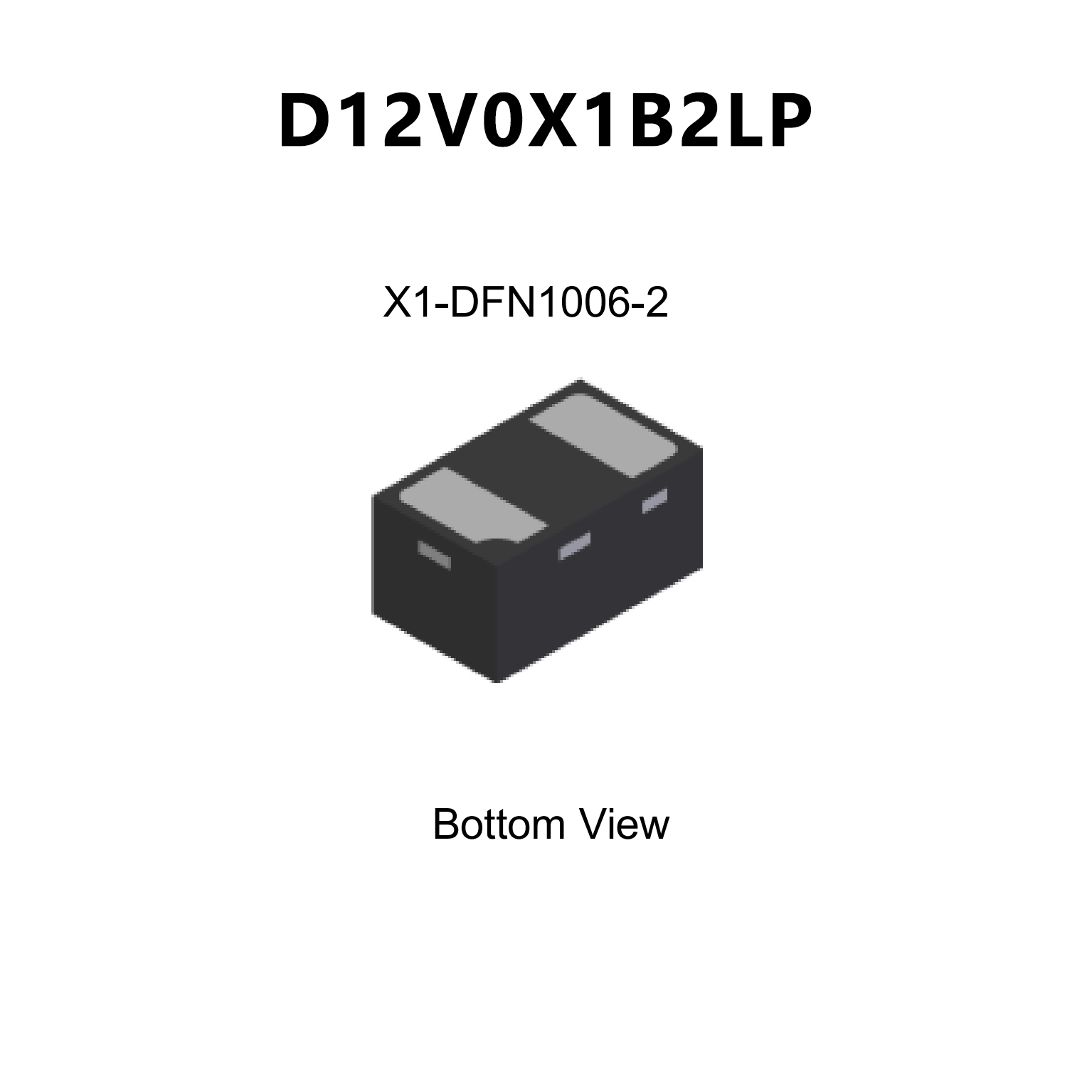

PIN CONFIGUTION
優勢替代
FEATURES
? Low Profile Package (0.53mm Max) and Ultra-Small
PCB Footprint Area (1.1mm x 0.7mm Max) Suitable
for Compact Portable Electronics
? Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±24kV, Contact ±20kV
? 1 Channel of ESD Protection
? Low Channel Input Capacitance
PIN CONFIGUTION
