Femto-Farad Capacitance 1-Channel ESD Protection, SGM05FB1E2 P2P ESD8551.
SGM05FB1E2
SGM05FB1E2.pdf
SGM05FB1E2.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±12kV (Air)
IEC 61000-4-2: ±12kV (Contact)
? Low Profile Packages: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
? Working Voltage: 5V and Below
? Rated Peak Pulse Current: 2.4A
? Low Channel Input Capacitance: 0.3pF (TYP)

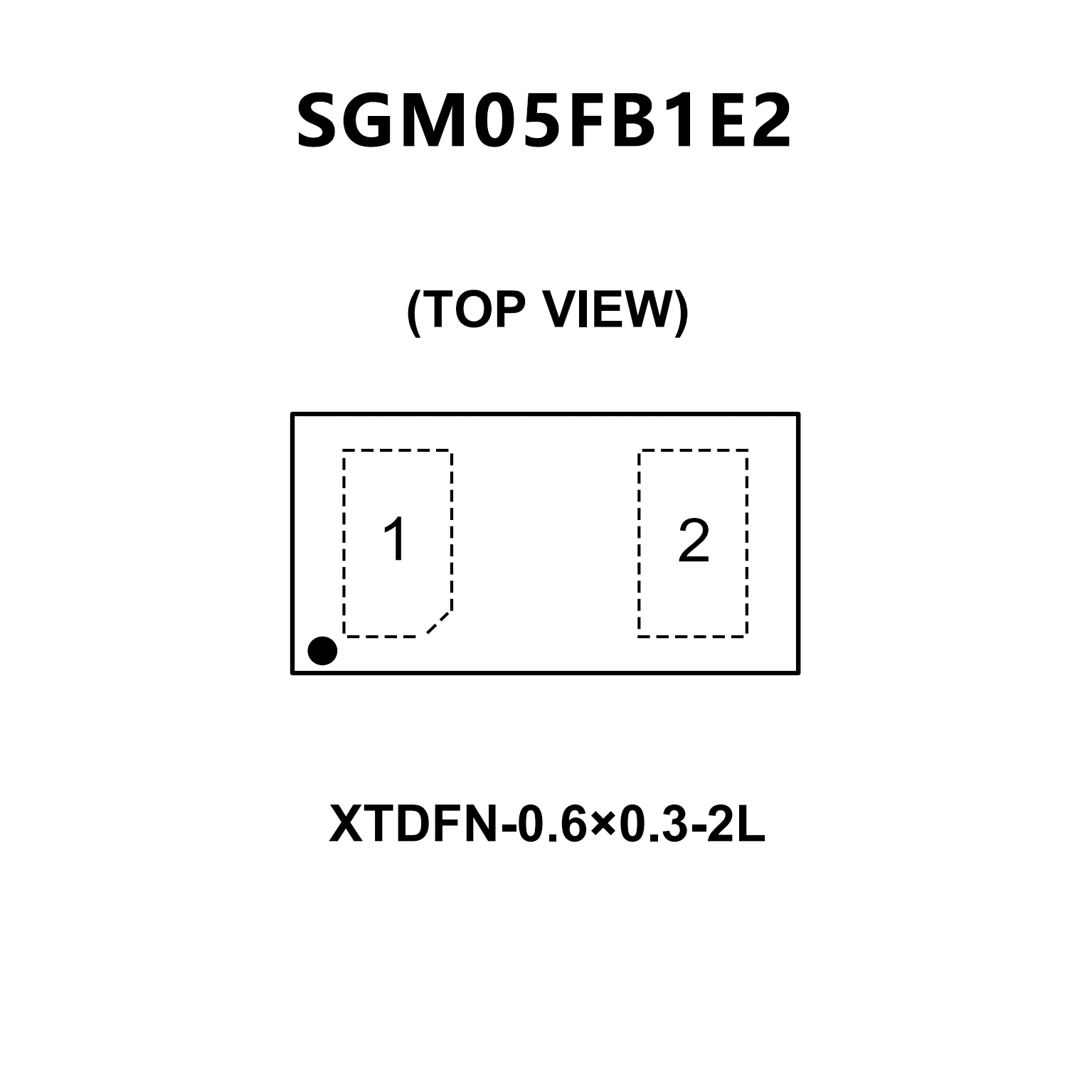

PIN CONFIGUTION
優勢替代
FEATURES
? Low Capacitance (0.30 pF Max, I/O to GND)
? Protection for the Following IEC Standards:
IEC 61000?4?2 (Level 4) & ISO 10605
? Low ESD Clamping Voltage
? SZESD8551MXWT5G ? Wettable Flank Package for Optimal
Automated Optical Inspection (AOI)
? SZ Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q101
Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR Free and
are RoHS Compliant

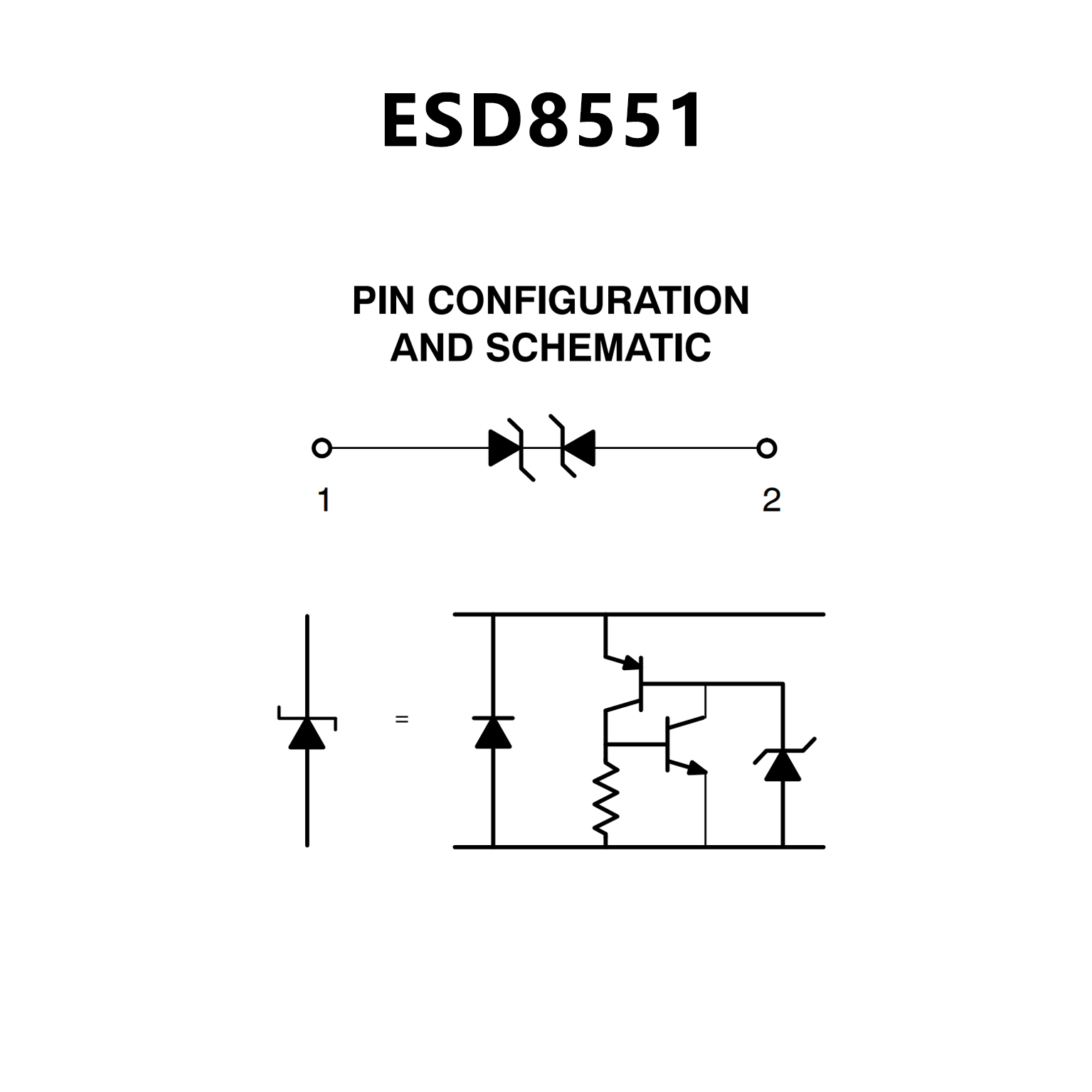

PIN CONFIGUTION
