High-Current, High-Performance DrMOS Power Module, NDC302RA Replace AOZ5518QI.
NDC302RA.pdf優(yōu)勢(shì)替代
FEATURES
? 4.5V to 25V power supply range
? 4.5V to 5.5V driver supply range
? 65A continuous output current
Up to 80A with 10ms on pulse
Up to 120A with 10μs on pulse
? Up to 2MHz switching operation
? 5V PWM / Tri-State input compatible
? Under-Voltage LockOut protection
? FCCM pin control for Shutdown / Diode Emulation /CCM operation
? Standard 5mm x 5mm QFN-31L package

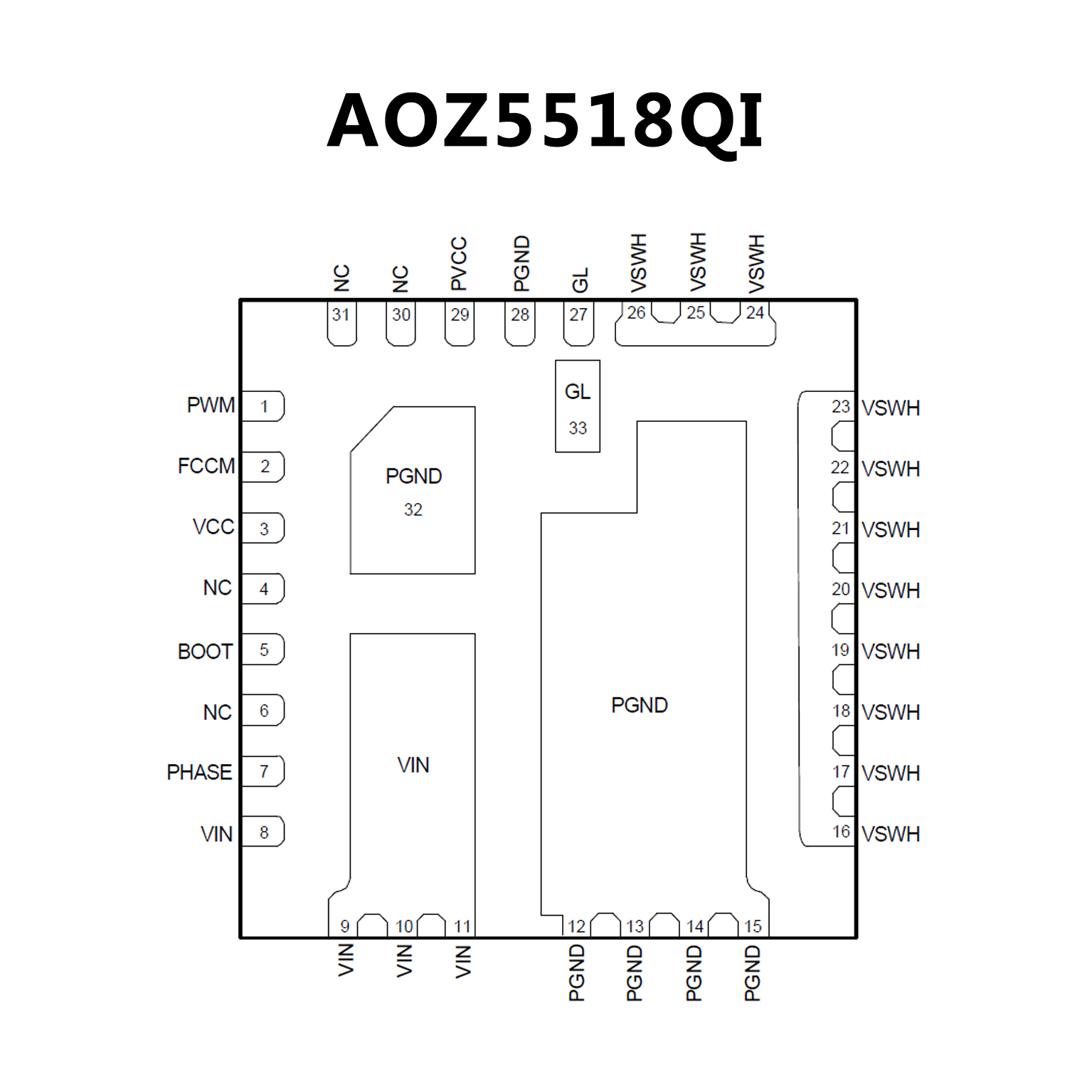

PIN CONFIGUTION
