1MHz,3A,DFN3X3-10L Buck DC/DC Converter,ACP3084 Replace SY8303.
ACP3084??
ACP3084??.pdf
ACP3084??.pdfFEATURES
? Input Voltage Range: 2.7V to 5.5V
? High Efficiency up to 95%
? Low 100mΩ High SideRDSON Switches
? 3A Available Load Current
? 30μA Typical Quiescent Current
? 1MHz Constant Switching Frequency
? Adjustable Output Voltage as Low as 0.6V
? 100% Duty Cycle Low Dropout Operation
? Short Circuit and Thermal Protection
? Excellent Line and Load Transient Response
? Soft Start Function
? Power Good
PIN CONFIGUTION
優勢替代
FEATURES
? Low RDS(ON) for Internal Switches (Top/Bottom):
110/70 m?
? 4.5-40V Input Voltage Range
? Internal Compensation
? Internal 1ms Soft-start Limits the Inrush Current
? Adjustable Switching Frequency Range: 500kHz
to 2.5MHz
? 3A Output Current Capability
? 1.5% 0.6V Reference
? Low Quiescent Current
? Cycle-by-cycle Peak Current Limitation
? Short Circuit Protection
? Thermal Shutdown and Auto Recovery
? RoHS Compliant and Halogen Free
? Compact Package: TSOT23-8

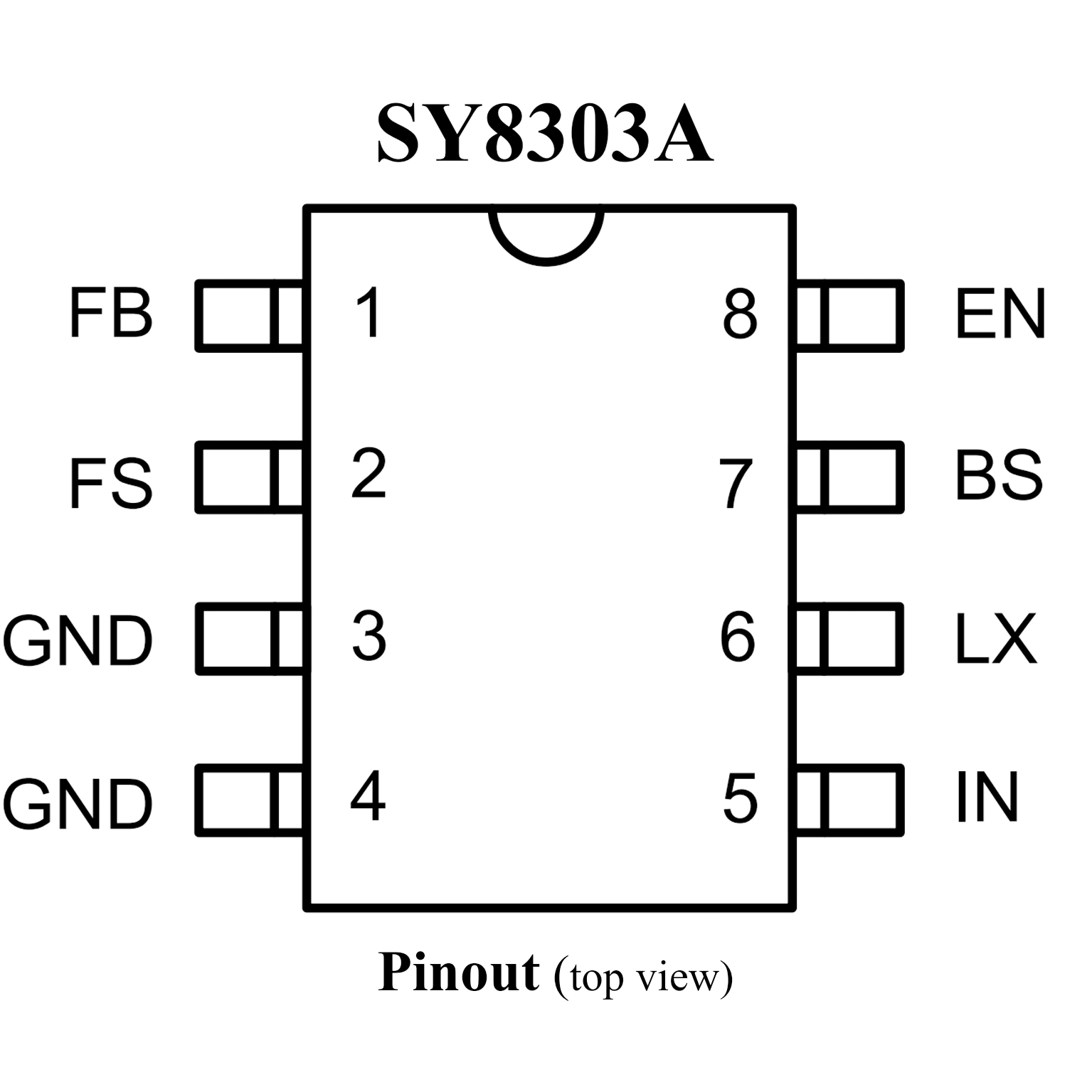

PIN CONFIGUTION
