SGMOP17C.pdf
No.11248
? Low Offset Voltage: 120μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Voltage Gain: 135dB (TYP)
? PSRR: 145dB (TYP)
? CMRR: 125dB (TYP)
? 0.1Hz to 10Hz Noise: 1μVP-P
? 56nV/ Hz Voltage Noise Density at 1kHz
? Gain-Bandwidth Product: 1.5MHz
? Low Supply Current: 480μA (TYP)
? Overload Recovery Time: 3μs (TYP)
? -40℃ to +125℃ Operating Temperature Range

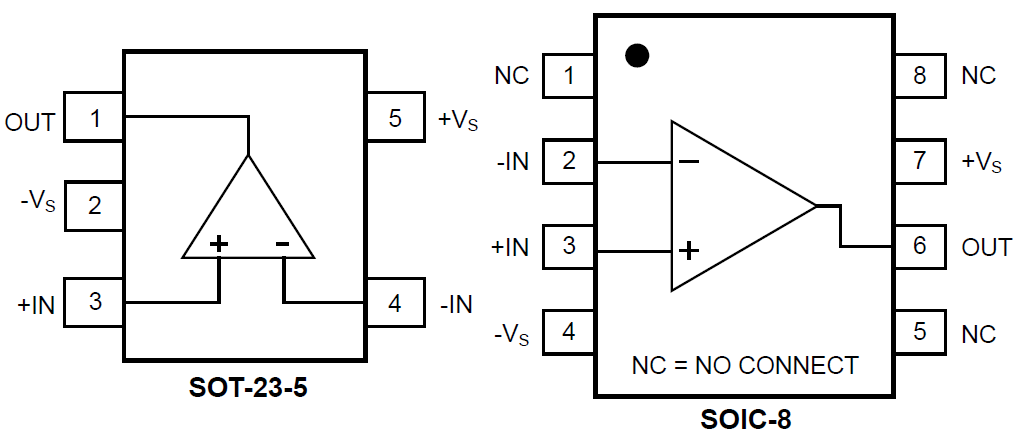

? Available in Green SOT-23-5 and SOIC-8 packages
The single SGMOP17C is a rail-to-rail output, low noise and high precision operational amplifier which has low input offset voltage, and bias current. It is guaranteed to operate from 4.5V to 36V single supply.
The rail-to-rail output swing provided by the SGMOP17C makes both high-side and low-side sensing easy. The combination of characteristics makes the SGMOP17C good choice for temperature, position and pressure sensors, medical equipment and strain gauge amplifiers, or any other 4.5V to 36V application requiring precision and long term stability.
The single SGMOP17C is available in Green SOT-23-5 and SOIC-8 packages. It is specified over the extended -40℃ to +125℃ temperature range.
