SGM9155.pdf
No.11179
? 6dB Gain for 720p High Definition Mode
? Bias Mode Active with AC-Coupled Input
? Bias Mode Inactive with DC-Coupled Input
? AC- or DC-Coupled Output
? DC-Coupled Output Eliminates AC Coupling Capacitor

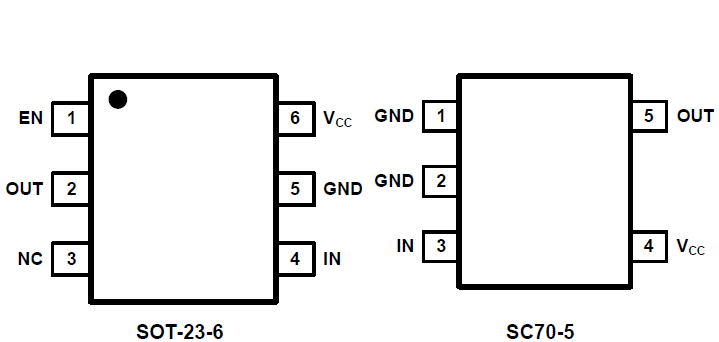

? Available in Green SOT-23-6 and SC70-5 Packages
? -40℃ to +85℃ Operating Temperature Range

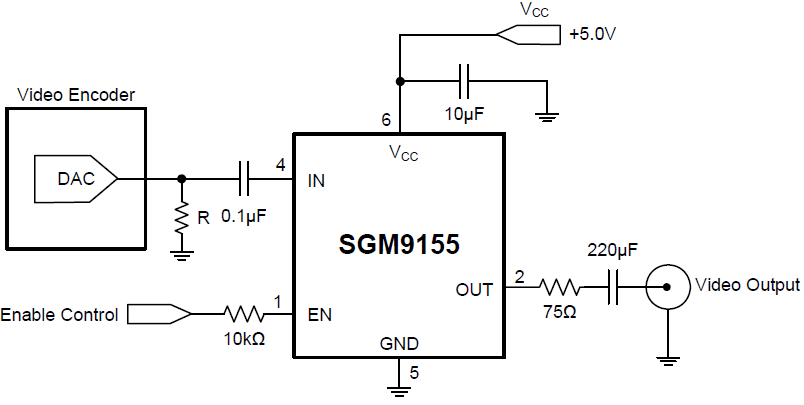

The SGM9155 video filter is intended to replace passive LC filters and drivers with an integrated device. The 6th-order channel offers High Definition (HD) filter. The SGM9155 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal bias circuitry provides constant bias voltage for AC-coupled input. The output can be AC- or DC-coupled. DC coupling the output removes the need for large output coupling capacitors.
The SGM9155 is available in Green SOT-23-6 and SC70-5 packages. It operates over an ambient temperature range of -40℃ to +85℃.
