SGM9147.pdf
No.11186
● Excellent Video Performance
● 5-Pole Reconstruction Filter
● Internal Gain: 6dB
● Rail-to-Rail Output
● Input Voltage Range Includes Ground
● AC- and DC-Coupled Input
● Operates from 3.0V to 5.5V Single Power Supply
● Low Power 5mA Typical Supply Current

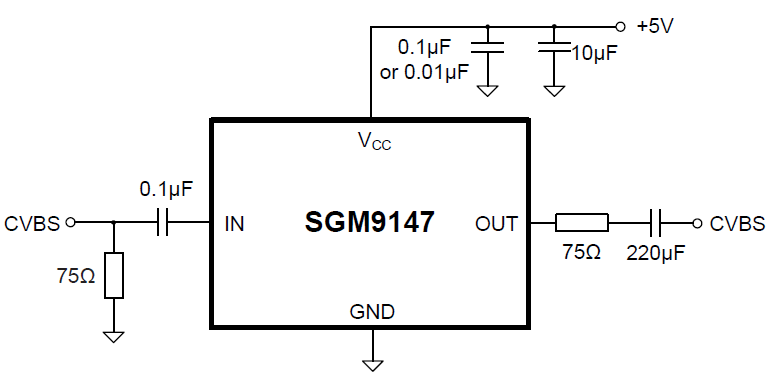

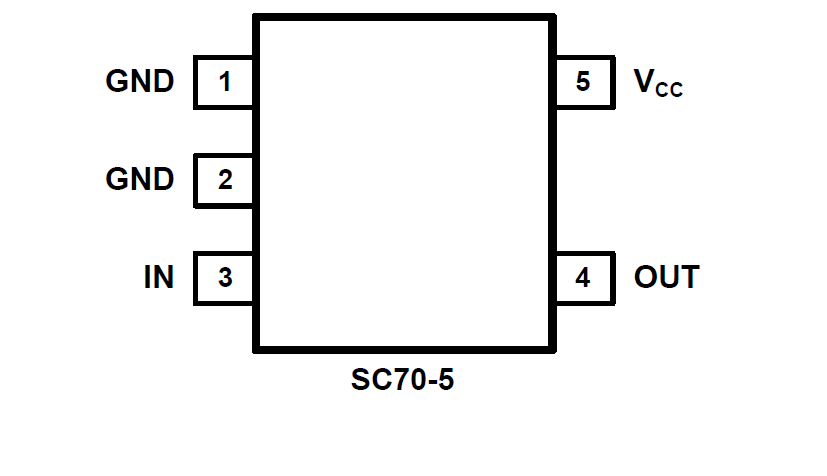

● Available in Green SC70-5 Package
● -40℃ to +85℃ Operating Temperature Range
The SGM9147 is a single rail-to-rail 5-pole output reconstruction filter with a -3dB bandwidth of 13MHz and 60V/μs slew rate. Operating from single power supply ranging from 3.0V to 5.5V and sinking 5mA quiescent current, the SGM9147 is ideally suited for low power, battery-operated applications. The SGM9147 employs an internal level shift circuit that avoids sync-pulse clipping and allows DC-coupled output.
The SGM9147 is available in Green SC70-5 package. It is specified over the -40℃ to +85℃ temperature range.
