SGM9124.pdf
No.11199
? 4-Channel 5th-Order 8MHz (SD) Filters
? Transparent Input Clamping
? 6dB Output Driver Gain
? Rail-to-Rail Output
? Input Voltage Range Includes Ground
? AC- or DC-Coupled Inputs
? AC- or DC-Coupled Outputs
? Operates from 3.3V to 5.5V Power Supply
? Low Power (7.5mA/Channel) 30mA Total Supply Current

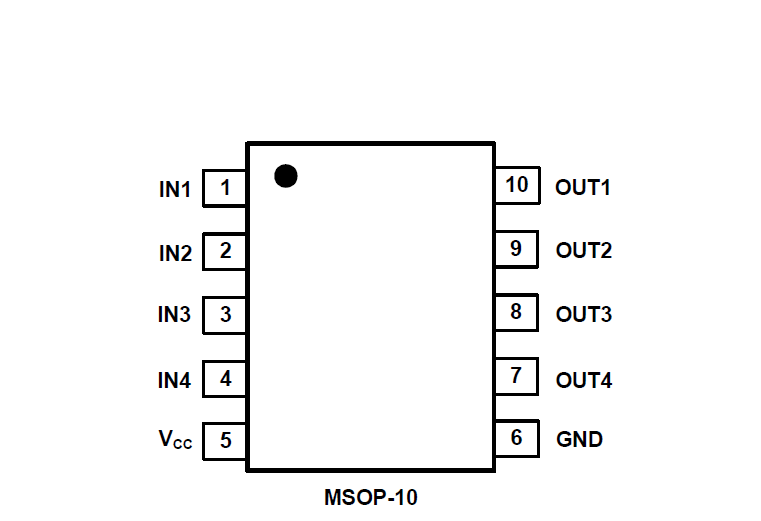

? Available in Green MSOP-10 Package
? -40℃ to +85℃ Operating Temperature Range
The SGM9124 is a low voltage, 4-channel video amplifier with integrated reconstruction filters and input clamps. Specially suited for standard definition video signals, this device is ideal for a wide range of television and set-top box applications. SGM9124 offers 6dB gain rail-to-rail output driver and 5th-order output reconstruction filter on all four channels. It has 8MHz -3dB bandwidth and 35V/μs slew rate. SGM9124 provides improved image quality compared with passive LC filters and discrete drivers solution. Operating from single power supply ranging from 3.3V to 5.5V and sinking an ultra-low 30mA quiescent current, the SGM9124 is ideally suited for battery powered applications.

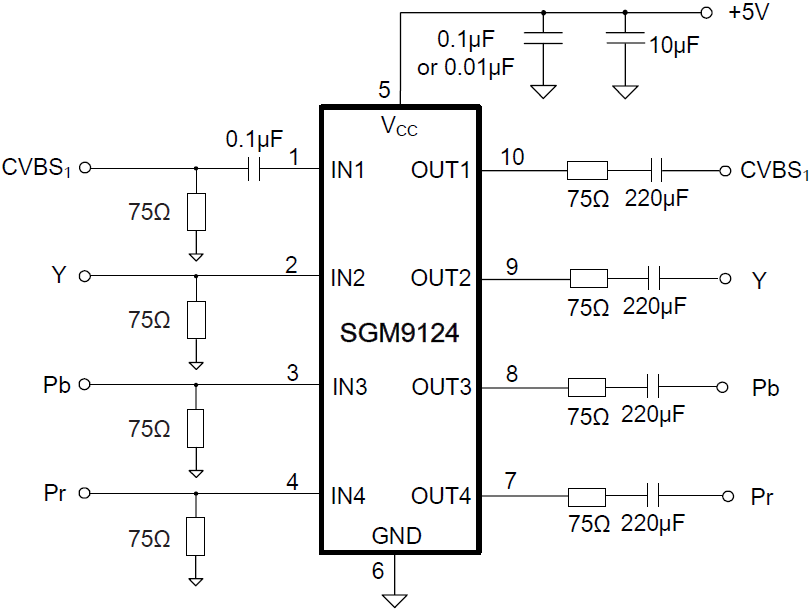

SGM9124 can be DC-coupled or AC-coupled with input video signal, such as the output stage of DAC to eliminate out-of-band noise. The output in SGM9124 can be configured as DC- or AC-coupled output.
