SGM9114.pdf
No.11206
● Excellent Video Performance
● 5th-Order Reconstruction Filter
● Internal Gain: 6dB
● Rail-to-Rail Output
● SAG Correction Reduces AC Coupling Capacitor Size
● Input Voltage Range Includes Ground
● AC- and DC-Coupled Input
● Single Power Supply: 3.0V to 5.5V
● Low Power
6mA Typical Supply Current
0.1μA Typical Supply Current when Disabled

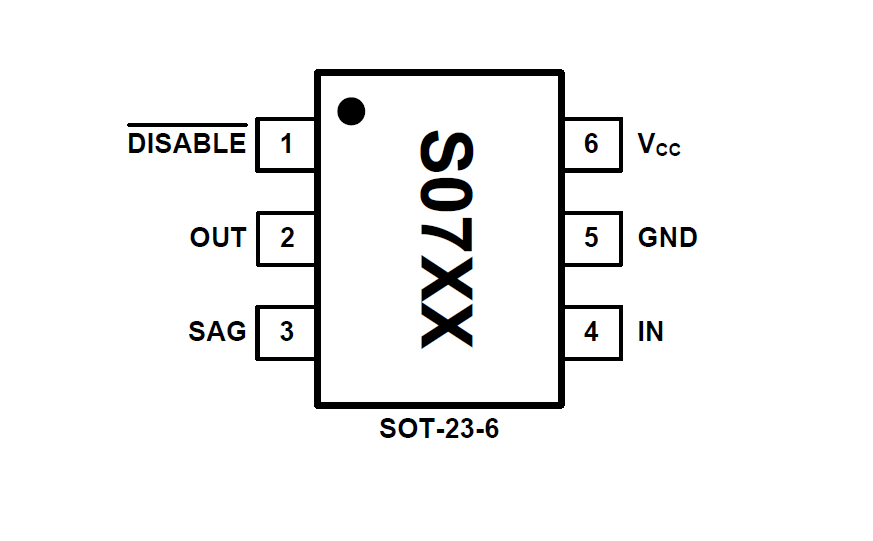

● Available in Green SOT-23-6 Package
● -40℃ to +85℃ Operating Temperature Range

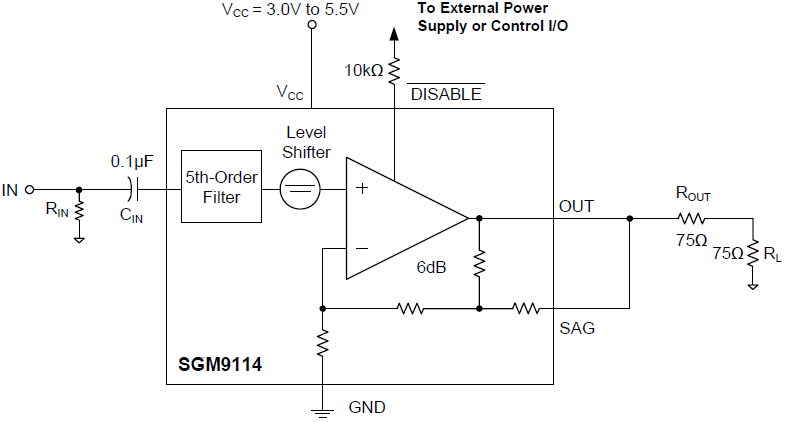

The SGM9114 is a single rail-to-rail 5th-order output reconstruction filter with a -3dB bandwidth of 8MHz and 35V/μs slew rate. Operating from single power supply
ranging from 3.0V to 5.5V and sinking an ultra-low 6mA quiescent current, the SGM9114 is ideally suited for low power, battery-operated applications. SGM9114 employs an internal level shift circuit that avoids sync-pulse clipping and allows DC-coupled output. If AC coupling is preferred, the SGM9114 offers a sag-correction feature that significantly reduces the size of the output coupling capacitor. SGM9114 has a power-down disable feature that reduces the supply current to 0.1μA, dramatically reducing power consumption and prolonging battery life.
It operates over an ambient temperature range of -40℃ to +85℃.
