SGM9113.pdf
No.11207
● Excellent Video Performance
● 5th-Order Reconstruction Filter
● Internal Gain: 6dB
● Rail-to-Rail Output
● Input Voltage Range Includes Ground
● Operates from 3.0V to 5.5V Single Power Supply
● Low Power
6mA Typical Supply Current

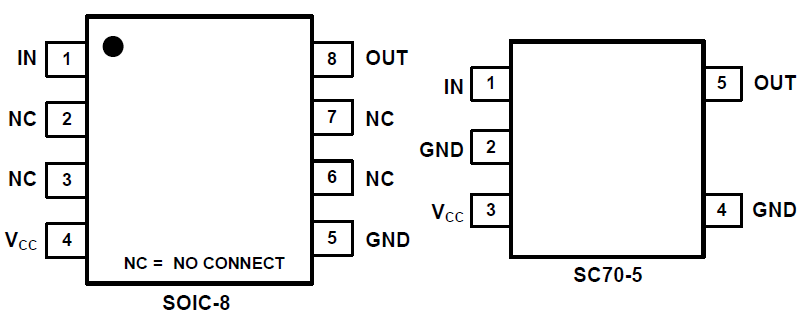

● Available in Green SOIC-8 and SC70-5 Packages
● -40℃ to +85℃ Operating Temperature Range

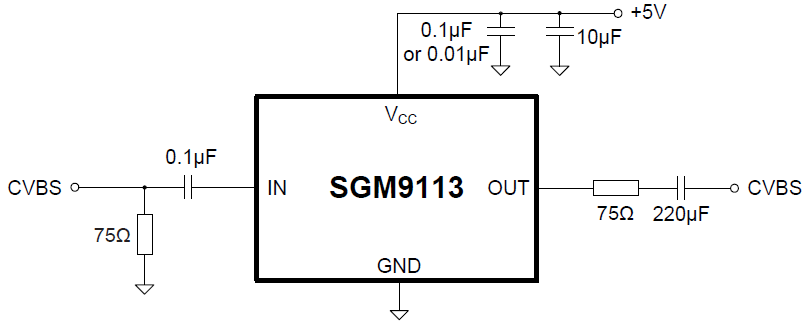

The SGM9113 is a single rail-to-rail 5th-order output reconstruction filter with a -3dB bandwidth of 8MHz and 35V/μs slew rate. Operating from single power supply ranging from 3.0V to 5.5V and sinking an ultra-low 6mA quiescent current, the SGM9113 is ideally suited for low power, battery-operated applications.
The SGM9113 employs an internal level shift circuit that avoids sync-pulse clipping and allows DC-coupled output. It operates over an ambient temperature range of -40℃ to +85℃.
