SGM89111.pdf
No.11227
? Capless Audio Driver Structure
Eliminates Pop/Clicks
Eliminates Output DC-Blocking Capacitors
Provides Flat Frequency Response from DC to 20kHz
? Low Noise and THD
Typical SNR = 107dB
Typical VN = 9μVrms
Typical THD+N = 0.001% (f = 1kHz)
? 3Vrms Output Voltage into 2.5kΩ Load with 5V Supply Voltage
? Support Differential Audio Signal Input
? Excellent SD Video Performance
? 5th-Order Video Filter
? 6dB Gain Video Driver
? Video Driver can Drive Two Video Loads
? Input Voltage Range Includes Ground
? Operates from 3.0V to 5.5V Single Power Supply

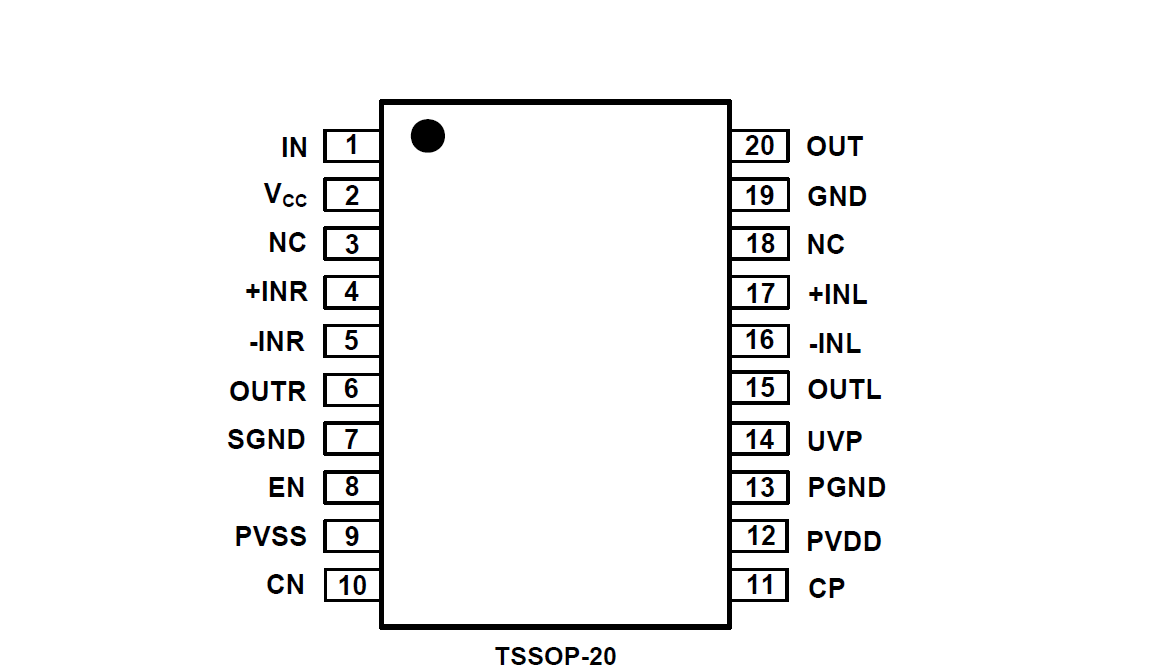

? Available in Green TSSOP-20 Package
The SGM89111 is a 3Vrms pop/click-free stereo line driver designed to allow the removal of the output DC-blocking capacitors for reduced component count and cost. The SGM89111 also has a single rail-to-rail 5th-order video filter with a -3dB bandwidth of 8MHz and a slew rate of 35V/μs. It operates from 3.0V to 5.5V power supply. The device is ideal for single supply electronics where size and cost are critical design parameters.

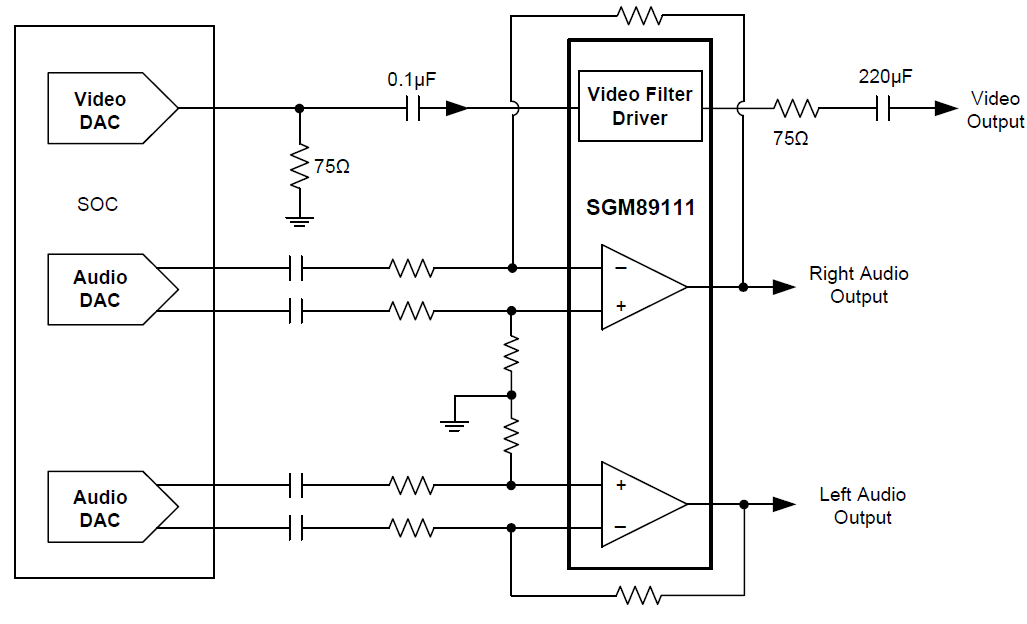

The SGM89111 is capable of driving 3Vrms into a 2.5kΩ load with 5V supply voltage. The device has differential inputs and uses external gain setting resistors that supports a gain range of ±1V/V to ±10V/V. The use of external gain resistors also allows the implementation of a 2nd-order low pass filter to compliment DAC's and SOC converters. The SGM89111 has build-in shutdown control for pop/click-free on/off control. The SGM89111’s video driver employs an internal level shift circuit that avoids sync-pulse clipping and allows DC-coupled output.
