Low Power Comparator
SGM8702 SGM8702.pdf

No.10823

FEATURES

● Ultra Low Power Consumption: 300nA (TYP) at VS = 1.4V

● Wide Supply Voltage Range: 1.4V to 5.5V

● Propagation Delay: 6μs (TYP) at VS = 1.4V

● Open Drain Output Current Drive: 18mA (TYP) at VS = 5V

● Rail-to-Rail Input

● P-MOSFET Open Drain Output Structure

● -40℃ to +85℃ Operating Temperature Range

● Available in Green SOT-23-5 and SC70-5 Packages

DESCRIPTION

The SGM8702 is an ultra low power comparator with a typical power supply current of 300nA. It has the best-in-class power supply current versus propagation delay performance. The propagation delay is as low as 6μs with 100mV overdrive at 1.4V supply. Designed to operate over a wide range of supply voltages, from 1.4V to 5.5V, with guaranteed operation at 1.4V, 2.5V and 5.0V, the SGM8702 is ideal for use in a variety of battery-powered applications. With rail-to-rail common mode voltage range, the SGM8702 is well suited for single-supply operation. Its small packages make the SGM8702 ideal for use in handheld electronics and mobile phone applications.

Featuring an open drain output stage, the SGM8702 allows for operation with absolute minimum power consumption when driving any capacitive or resistive load.

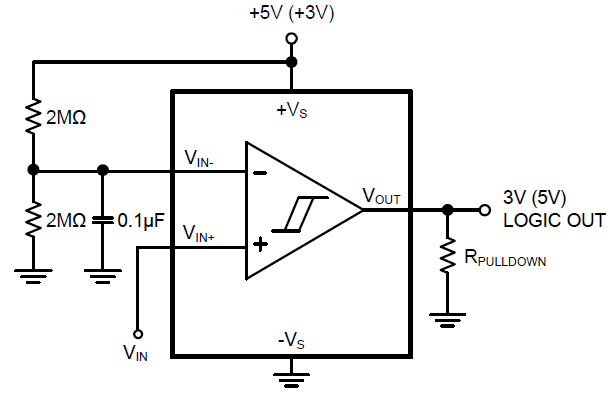

APPLICATION CIRCUIT

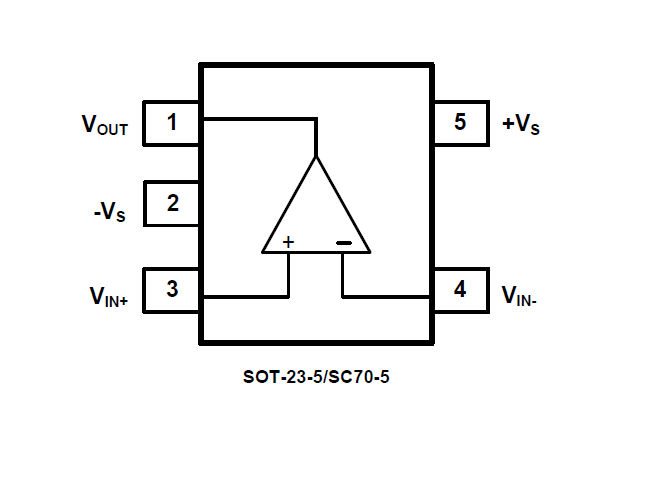

PIN CONFIGUTION
