Low Noise Operational Amplifier
SGM8631 SGM8631.pdf

No.10778

FEATURES

? Rail-to-Rail Input and Output:3.5mV Maximum VOS

? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current
  SGM8631/3: 570μA (TYP)
? Small Packaging
  SGM8631 Available in Green SC70-5, SOT-23-5
  and SOIC-8
DESCRIPTION

The SGM8631 (single), SGM8632 (dual) and SGM8633 (single with shutdown) are low noise, low voltage, and low power operational amplifiers that can be designed into a wide range of applications. The SGM8631/2/3 have a high gain-bandwidth product of 6MHz and a slew rate of 3.7V/μs. The SGM8633 has a power-down disable feature that reduces the supply current to less than 1μA.
The SGM8631/2/3 are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for SGM8631/2/3. They are specified over the extended industrial temperature range (-40℃ to +125℃). The operating supply range is from 2V to 5.5V. The SGM8631 single is available in Green SC70-5, SOT-23-5 and SOIC-8 packages.

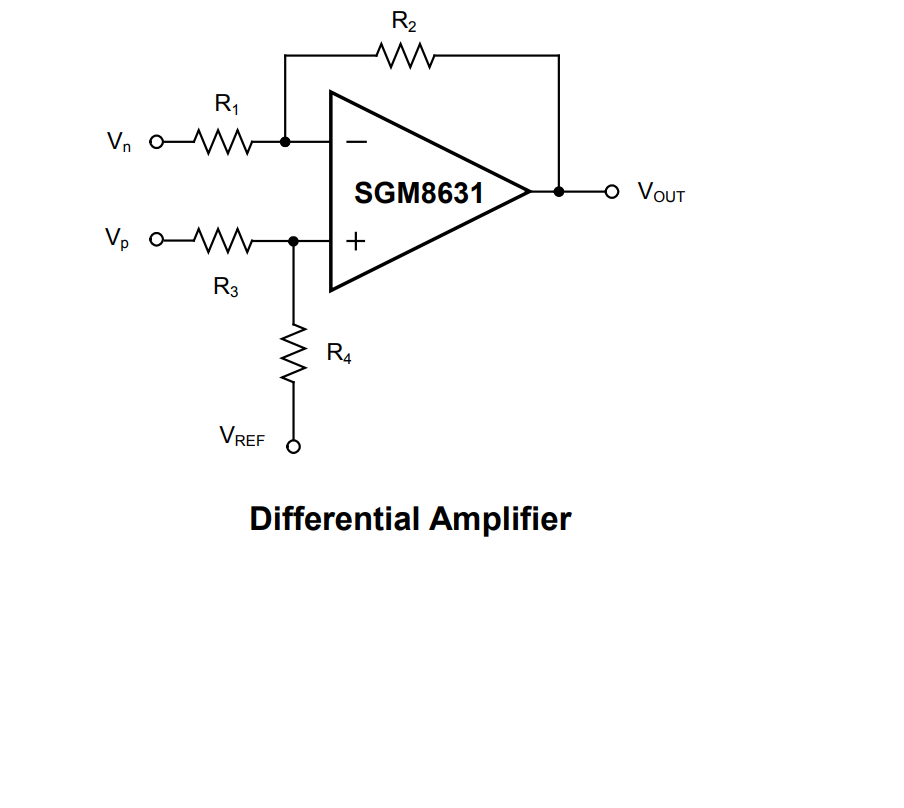

APPLICATION CIRCUIT

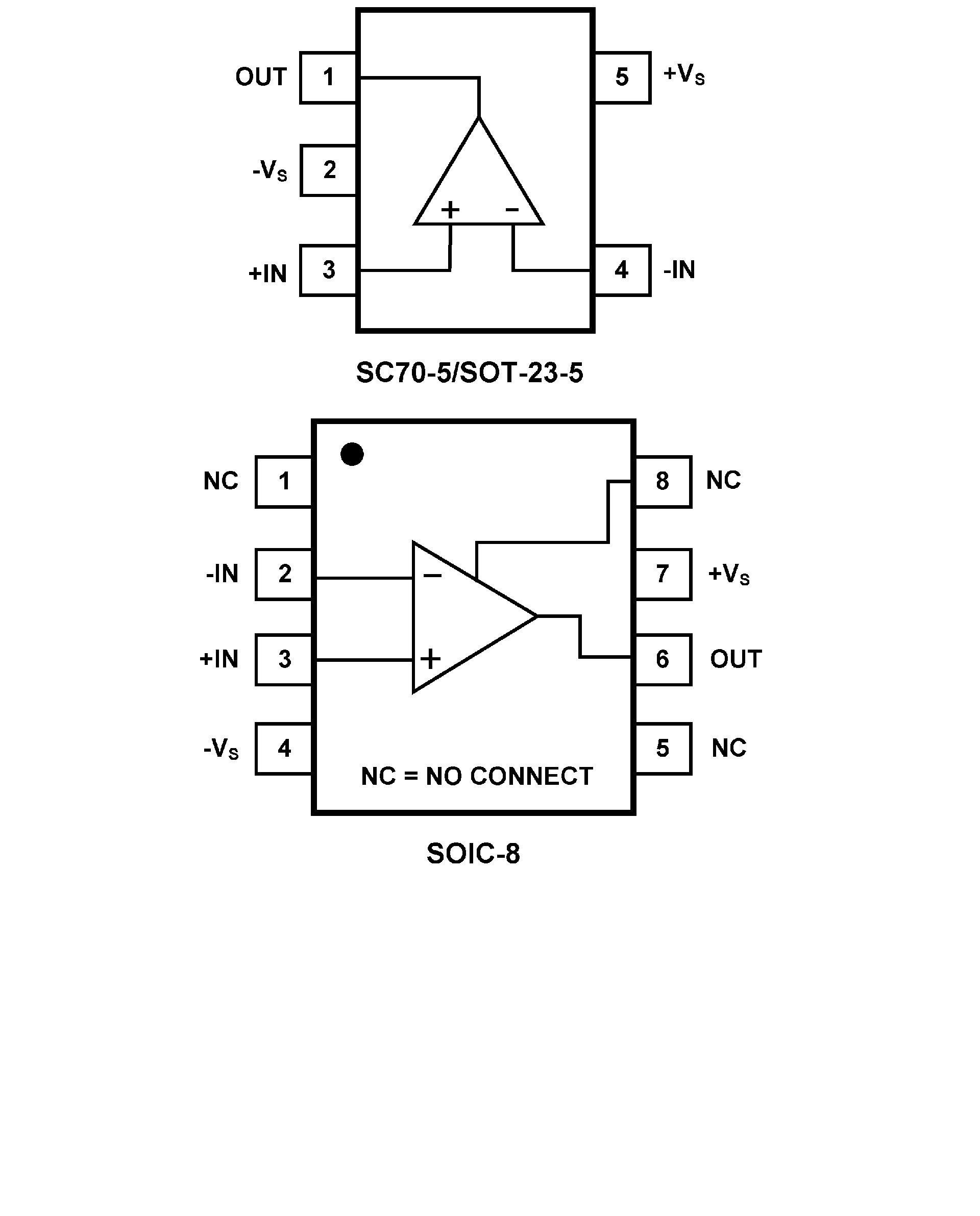

PIN CONFIGUTION
