SGM8555.pdf
No.10750
? Low Offset Voltage: 90μV (MAX)
? Low Noise density: 21nV/ Hz at 1kHz
? Low Voltage Noise: 0.6μVP-P at 0.1Hz to 10Hz
? 3.5MHz GBP
? Slew Rate is 3V/μs
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 133dB (TYP) at +5V
? High PSRR: 96dB (TYP)
? High CMRR: 98dB (TYP)
? Ultra Low Input Bias Current: 30pA
? Low Supply Current: 950μA/Amplifier (TYP)
? Overload Recovery Time: 40μs (at VS = +5V)
? No External Capacitors Required
The SGM8555/6 are rail-to-rail input and output precision operational amplifiers which have low input offset voltage, and bias current. They are guaranteed to operate from 2.5V to 5.5V single supply. The rail-to-rail input and output swings provided by the SGM8555/6 make both high-side and low-side sensing easy. The combination of characteristics makes the SGM8555/6 good choices for temperature, position and pressure sensors, medical equipment and strain gauge amplifiers, or any other 2.5V to 5.5V application requiring precision and long term stability.

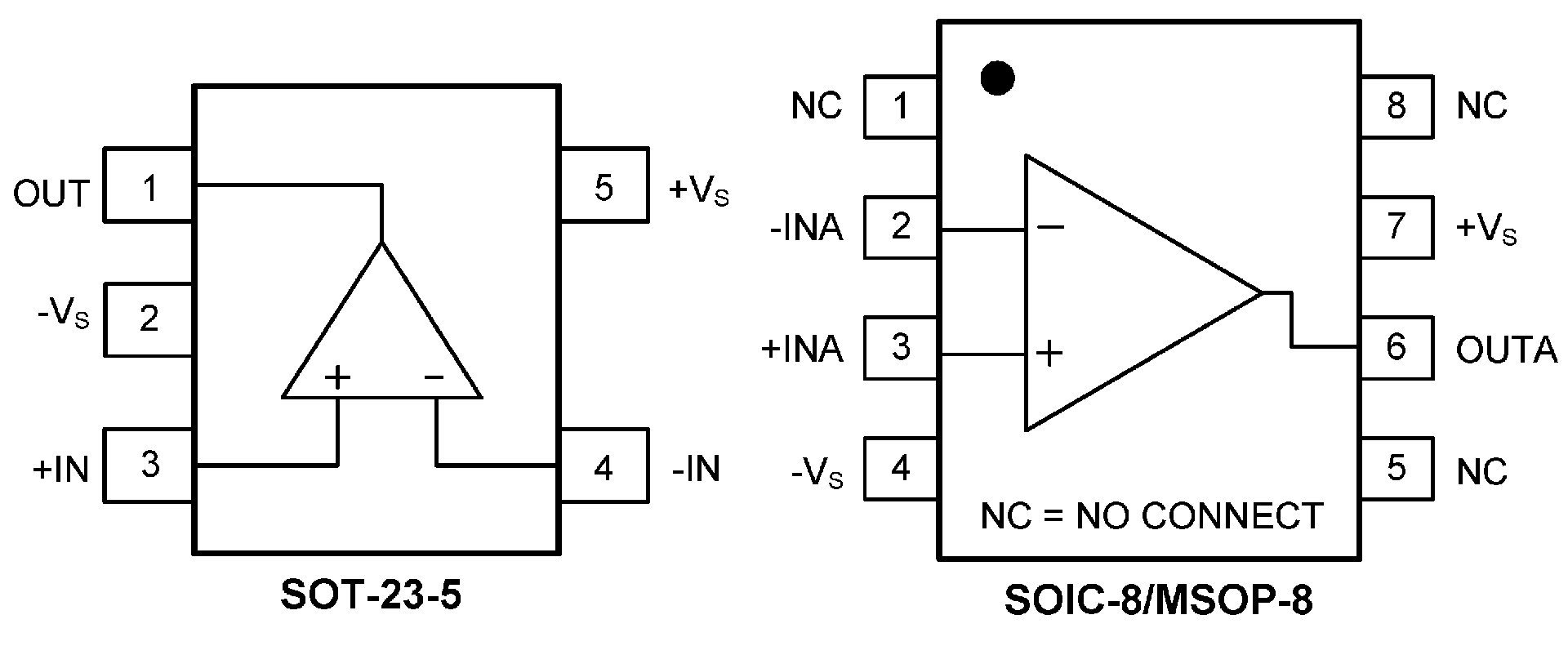

The single SGM8555 is available in the Green SOT-23-5, SOIC-8 and MSOP-8 packages. The dual SGM8556 is available in the Green SOIC-8 and MSOP-8 packages. They are specified for the extended industrial/automotive (-40℃ to +125℃) temperature range.
