SGM8418-2.pdf
No.11263
● Rail-to-Rail Output Swing
● Rail-to-Rail Input
● Supply Voltage Range: 4.5V to 26.5V
● Peak Output Current: 3A
● High Slew Rate: 65V/μs
● Unity-Gain Stable
● -40℃ to +85℃ Operating Temperature Range

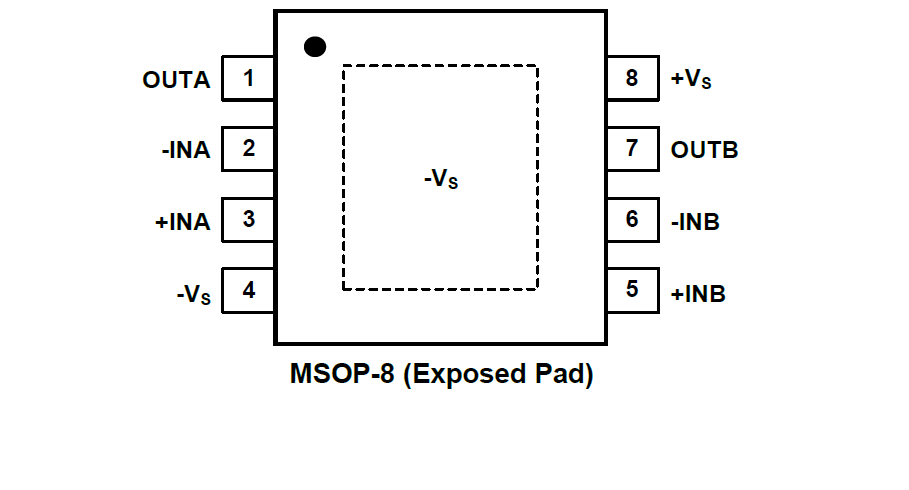

● Small Packaging: SGM8418-2 Available in a Green MSOP-8
(Exposed Pad) Package
The SGM8418-1, SGM8418-2 and SGM8418-4 are low power, high slew rate, dual or single power supply, rail-to-rail input and output operational amplifiers.
The SGM8418-1 contains single amplifier, the SGM8418-2 contains dual amplifiers and SGM8418-4 contains quad amplifiers. The SGM8418-1/2/4 have a high slew rate (65V/μs), 3A peak output current and offset voltage below 10mV. The SGM8418-1/2/4 are ideal for Thin Film Transistors Liquid Crystal Displays (TFT LCD).
The single SGM8418-1 is available in a Green TDFN-3×3-8L package. The dual SGM8418-2 is available in a Green MSOP-8 (Exposed Pad) package. The quad SGM8418-4 is available in a Green TSSOP-14 (Exposed Pad) package. They are specified over the -40℃ to +85℃ temperature range.
