High Precision Operational Amplifier
SGM8292
SGM8292.pdf
SGM8292.pdf
No.10736
FEATURES
? Low Power Consumption: 150μA/Amplifier
? Low Offset Voltage: 1.5mV (MAX)
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Rail-to-Rail Output
? High Input Impedance
? High Slew Rate: 7V/μs
? SGM8292 Available in MSOP-8 and SOIC-8 Packages
DESCRIPTION
The SGM8292 (dual) is a high voltage operational amplifier that is designed to offer a wide input common mode voltage range and output voltage swing. This device can operate from ±2.25V to ±18V dual power supplies or from +4.5V to +36V single supplies. The device features high slew rate, low input bias and offset current, low offset voltage and low offset-voltage temperature coefficient.
The SGM8292 dual is available in Green SOIC-8 and MSOP-8 packages. It is specified over the extended -40℃ to +125℃ temperature range.

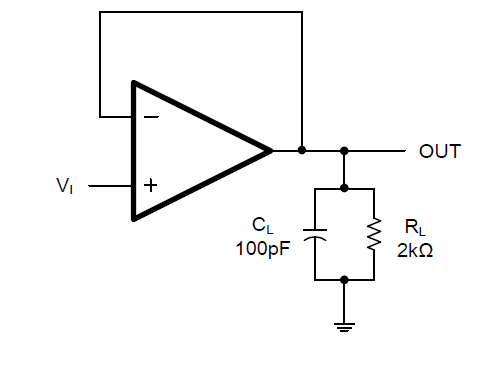

APPLICATION CIRCUIT

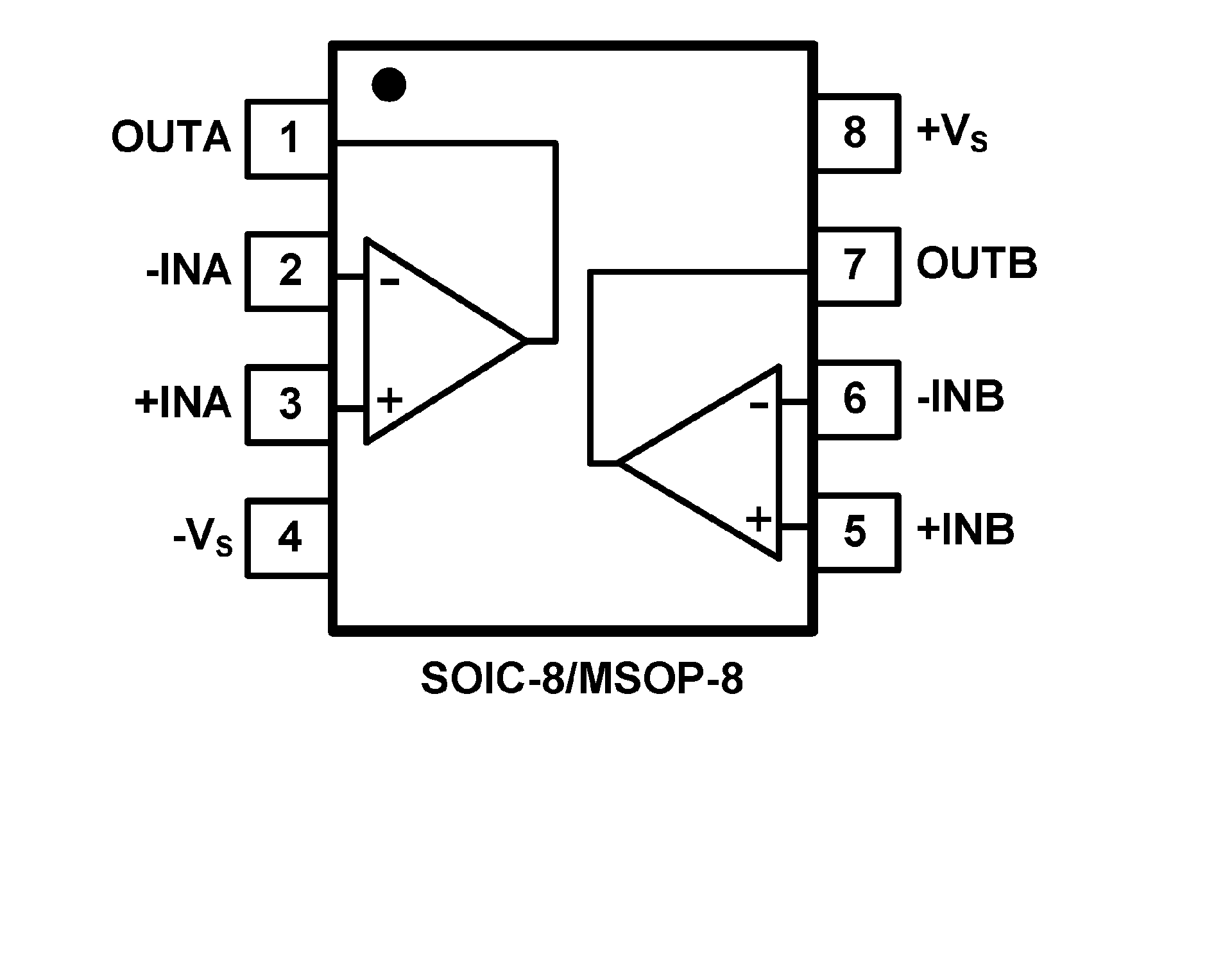

PIN CONFIGUTION
