SGM8046.pdf
No.10712
? Low Quiescent Current: 670nA/Amplifier (TYP)
? Rail-to-Rail Input and Output
? Gain Bandwidth Product: 100kHz (TYP)
? Stable for Gains of 10
? Wide Supply Voltage Range: 1.4V to 5.5V
? -40°C to +85°C Operating Temperature Range

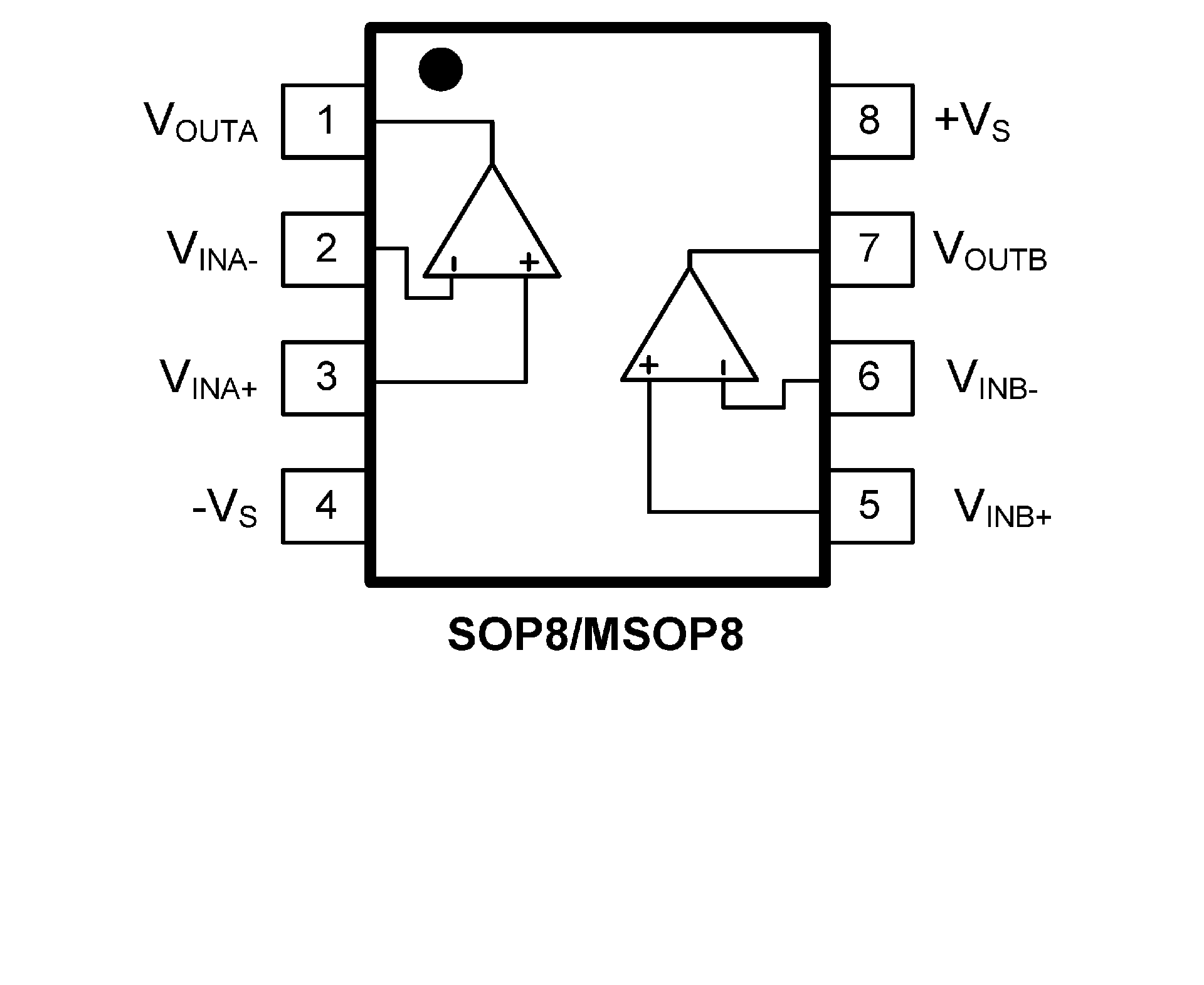

? Available in Green SOP8 and MSOP8 Packages

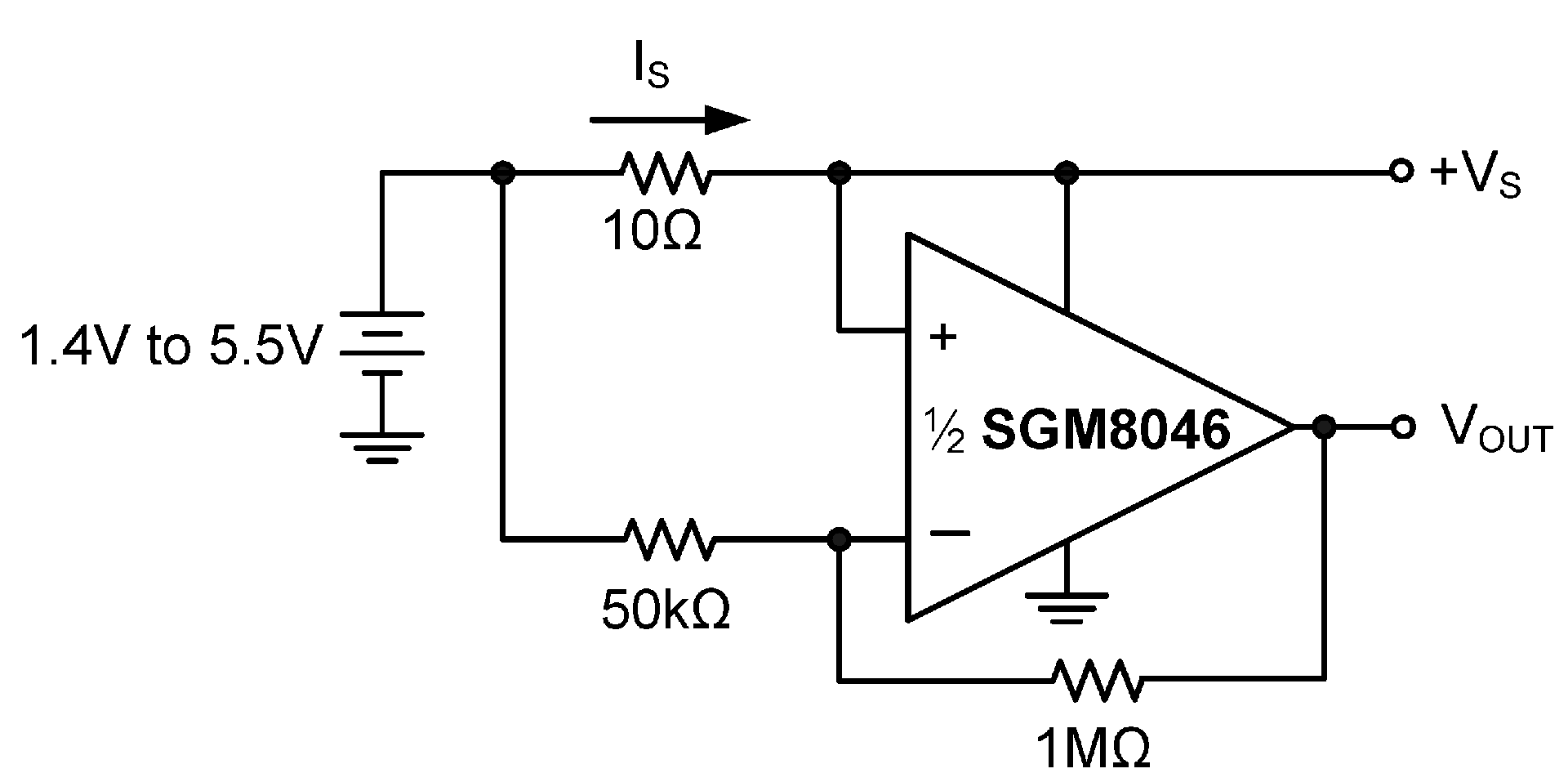

The SGM8046 operates with a single supply voltage as low as 1.4V, while drawing less than 670nA (TYP) of quiescent current per amplifier. This device is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The SGM8046 has a gain-bandwidth product of 100kHz (TYP) and is stable for gains of 10. The combination of characteristics makes the SGM8046 ideal for low frequency applications, such as battery current monitoring and sensor conditioning.
The SGM8046 operational amplifier is offered in dual configuration and it is specified for the extended industrial (-40℃ to +85℃) temperature range. The SGM8046 is available in the Green SOP8 and MSOP8 packages.
