SGM8040-1.pdf
No.10703
? Low Quiescent Current: 600nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 12kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? Low Offset Voltage: 80μV (TYP)
? -40℃ to +85℃ Operating Temperature Range

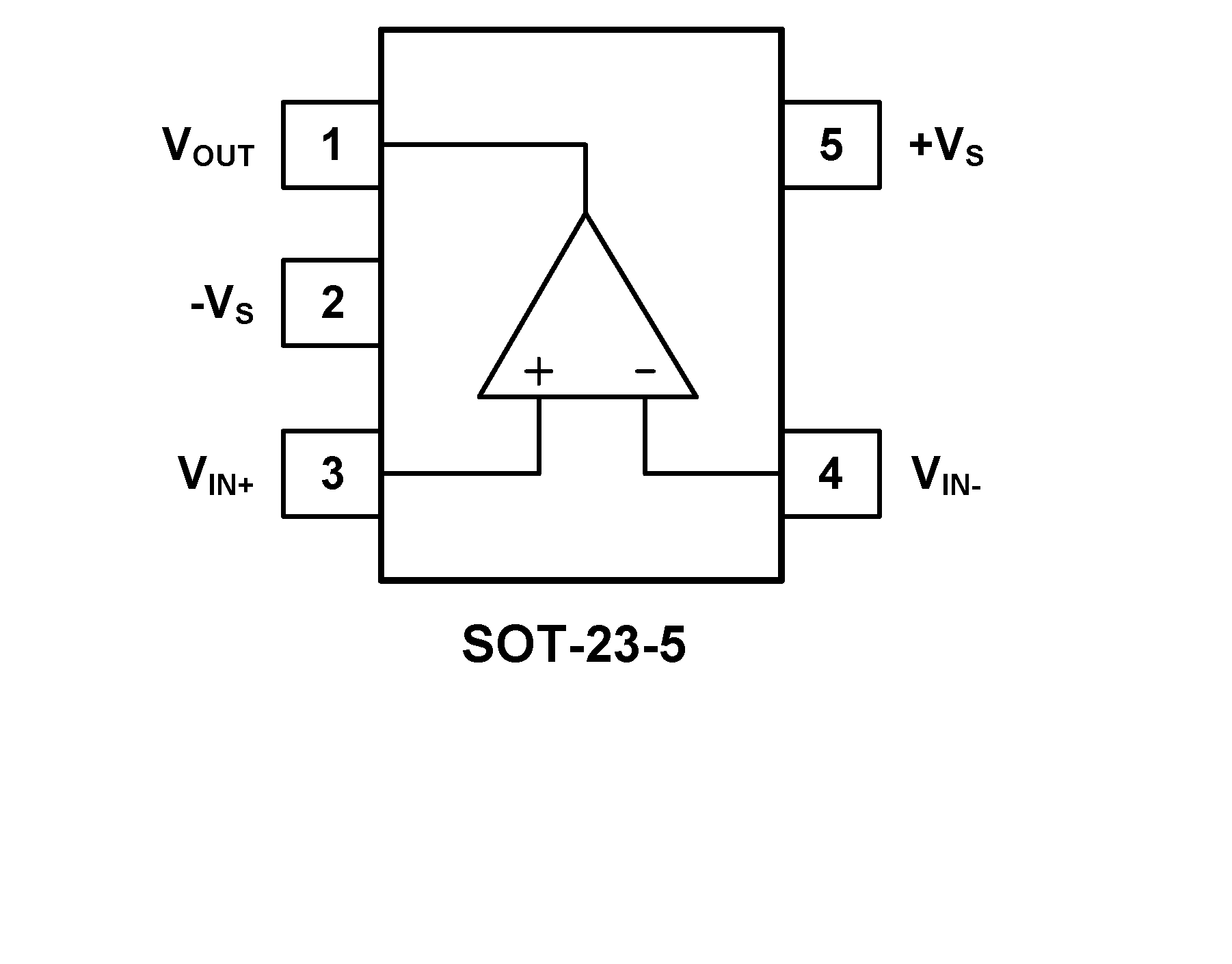

? Available in Green SOT-23-5 Package
The high precision single SGM8040-1 is guaranteed to operate with a single supply voltage as low as 1.4V, while drawing less than 600nA (TYP) of quiescent current. The device is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications.

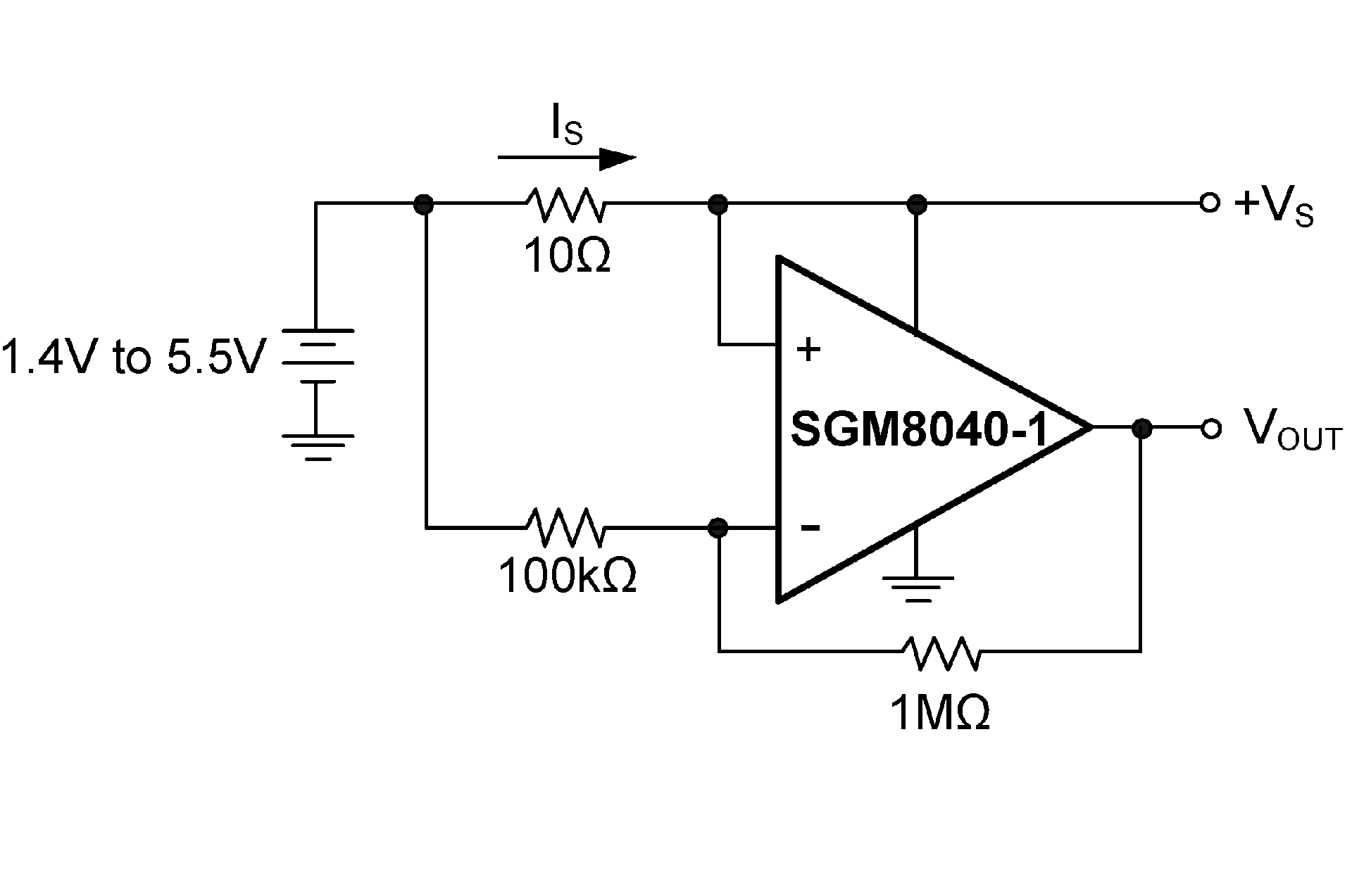

The SGM8040-1 has a gain-bandwidth product of 12kHz (TYP) and is unity gain stable. These specifications make this operational amplifier appropriate for low frequency applications, such as battery current monitoring and sensor conditioning.
The SGM8040-1 is available in Green SOT-23-5 package. It operates over an ambient temperature range of -40℃ to +85℃
