SGM7227.pdf
No.11123
● RON is Typically 5Ω at 3.0V
● Voltage Operation: 1.8V to 4.3V
● Fast Switching Times:
tON 15ns
tOFF 20ns
● Crosstalk: -30dB at 250MHz
● Off-Isolation: -35dB at 250MHz
● Rail-to-Rail Input and Output Operation
● Break-Before-Make Switching
● -40℃ to +85℃ Operating Temperature Range

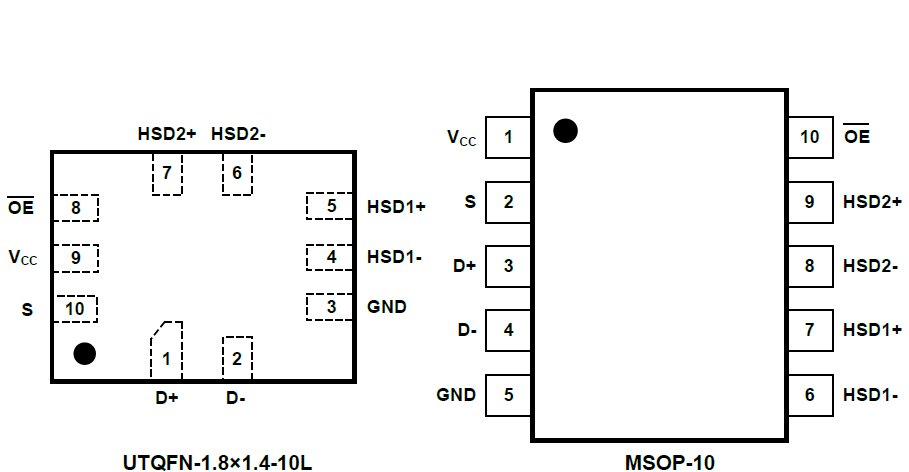

● Available in Green UTQFN-1.8×1.4-10L and MSOP-10
Packages
The SGM7227 is a high-speed, low-power double-pole/ double-throw (DPDT) analog switch that operates from a single 1.8V to 4.3V power supply.
SGM7227 is designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os.
The SGM7227 has low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480Mbps). Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Its bandwidth is wide enough to pass high- speed USB 2.0 differential signals (480Mbps) with good signal integrity.
The SGM7227 contains special circuitry on the D+/D- pins which allows the device to withstand a VBUS short to D+ or D- when the USB devices are either powered off or powered on.
