SGM7226.pdf
No.11124
? Supply Range: 1.8V to 5.5V
? On-Resistance: 5Ω (TYP)
? Directly Powered by VBUS
? D+/D- Short to VBUS Protection
? Fast Switching Times:
tON = 15ns (TYP)
tOFF = 20ns (TYP)

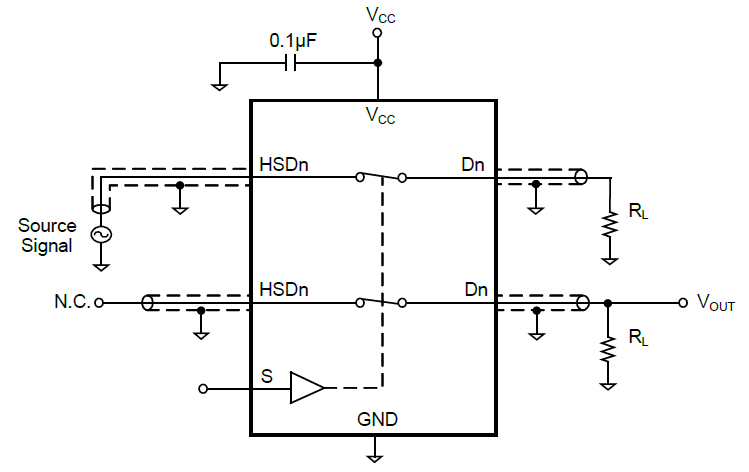

? Crosstalk: -30dB at 250MHz
? Off-Isolation: -35dB at 250MHz
? Break-Before-Make Switching
? Operating Temperature Range: -40℃ to +85℃

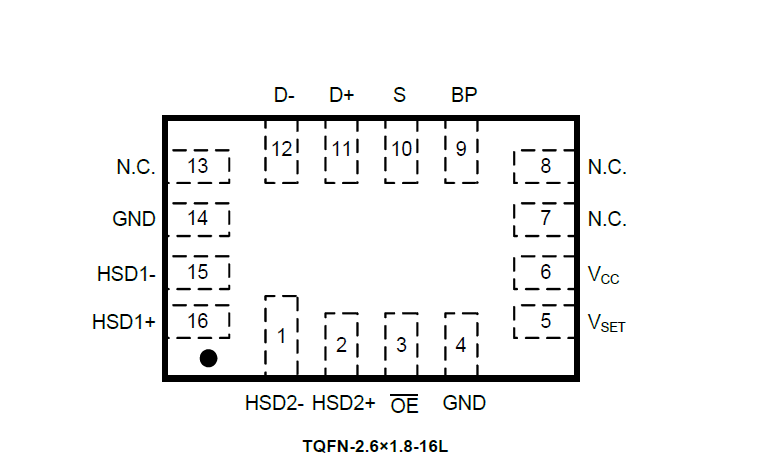

? Available in Green TQFN-2.6×1.8-16L Package
The SGM7226 is a high-speed, low-power double-pole/ double-throw (DPDT) analog switch that operates from a single 1.8V to 5.5V power supply and it can be powered directly from VBUS of USB interface.
SGM7226 is designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os.
The SGM7226 has low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480Mb/s). Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Its bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480Mb/s) with good signal integrity.
The SGM7226 contains special circuitry on the D+/D- pins which allows the device to withstand a VBUS short to D+ or D- when the USB devices are either powered off or powered on.
