10A Fully-Integrated Synchronous Boost Converter
SGM6610 SGM6610.pdf

No.10804

FEATURES
? Input Voltage Range: 2.7V to 12V
? Output Voltage Range: 4.5V to 12.6V
? 10A Switch Current
? Up to 91% Efficiency at VIN = 3.3V, VOUT = 9V and
  IOUT = 3A
? Mode Selection Between PFM Mode and Forced
  PWM Mode at Light Load
? 1μA Current into VIN Pin during Shutdown
? Resistor-Programmable Switch Peak Current Limit
? Adjustable Switching Frequency: 200kHz to 2.2MHz
? Programmable Soft-Start
? Output Over-Voltage Protection at 13.2V
? Cycle-by-Cycle Over-Current Protection
? Thermal Shutdown

? Available in Green TQFN-4.5×3.5-20L Package

DESCRIPTION

The SGM6610 is a high power density, fully integrated synchronous boost converter with a 11mΩ power switch and a 13mΩ rectifier switch to provide a high efficiency and small size solution in portable systems. The SGM6610 has wide input voltage range from 2.7V to 12V to support applications with single cell or two cell Lithium batteries. The device has 10A switch current capability and is capable of providing an output voltage up to 12.6V.

The SGM6610 uses peak current control topology to regulate the output voltage. In moderate to heavy load condition, the SGM6610 works in the Pulse Width Modulation (PWM) mode. In light load condition, the device has two operation modes selected by the MODE pin. One is the Pulse Frequency Modulation (PFM) mode to improve the efficiency and another one is the forced PWM mode to avoid application problems caused by low switching frequency. The switching frequency in the PWM mode is adjustable ranging from 200kHz to 2.2MHz by an external resistor. The SGM6610 also implements a programmable soft-start function and an adjustable switching peak current limit function. In addition, the device provides 13.2V output over-voltage protection cycle-by-cycle over-current protection, and thermal shutdown protection.

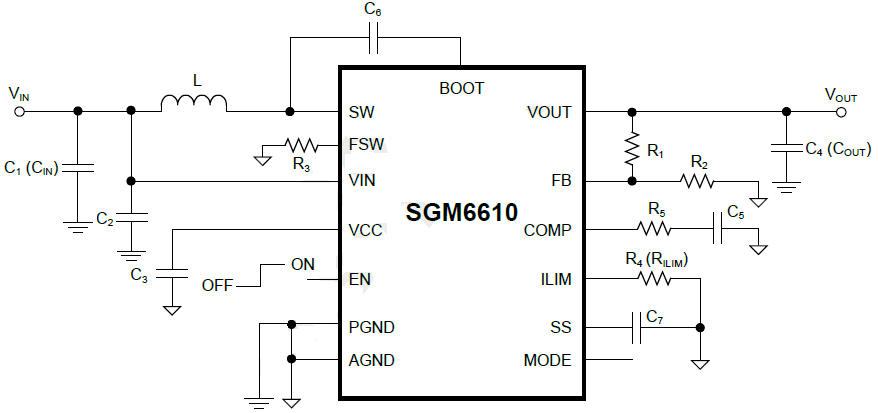

APPLICATION CIRCUIT

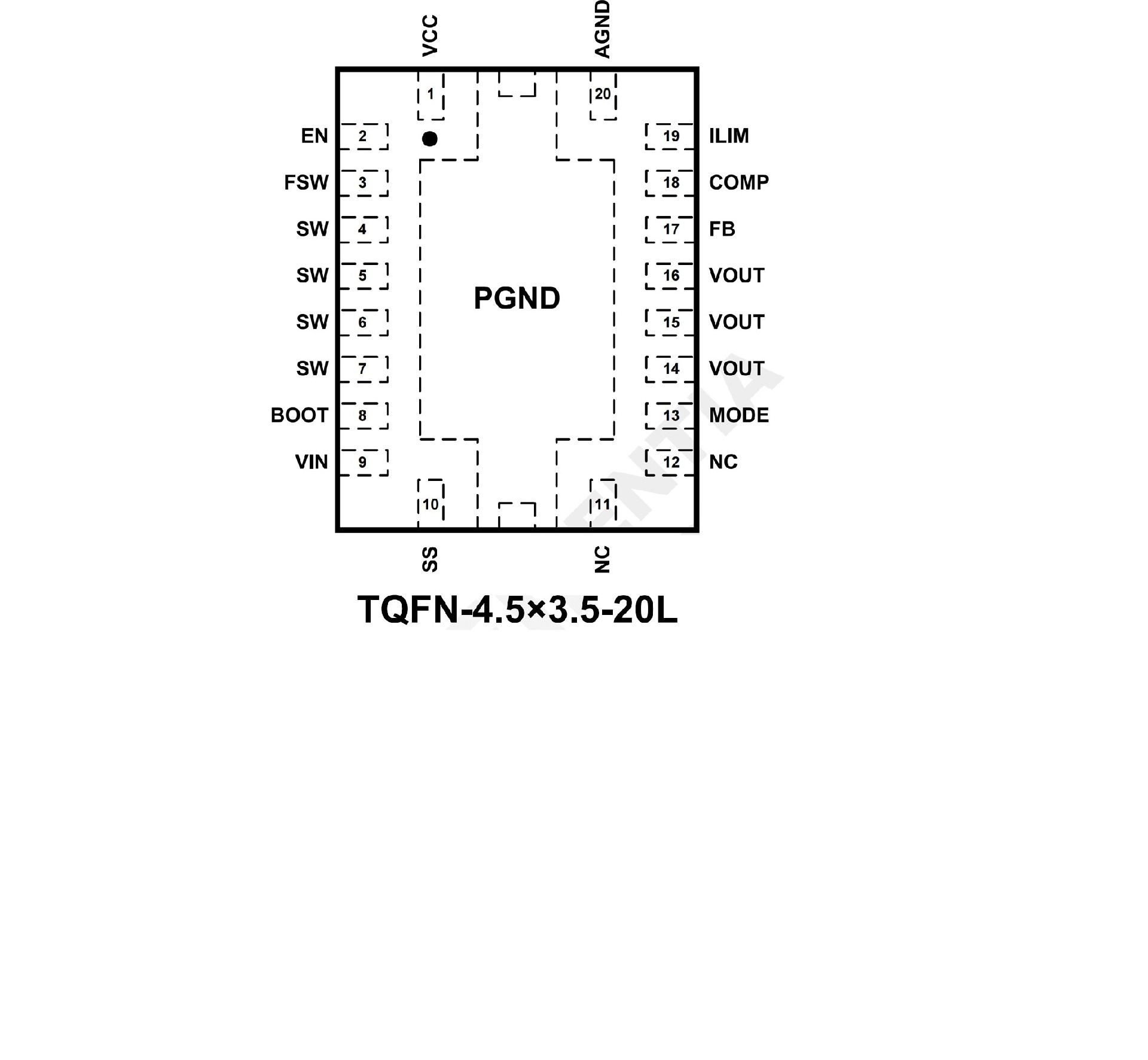

PIN CONFIGUTION
