SGM66051.pdf
No.11003
● 90% Efficient Synchronous Boost Converter
● Device Quiescent Current: 20μA (TYP)
● Less than 1μA Shutdown Current
● Operating Input Voltage Range: 2.2V to 4.5V
● Fixed Output Voltages: 5.1V and 5.4V
● Output Voltage Clamping: 6V
● Adjustable Output Voltage Up to 5.5V
● Power-Save Mode for Improved Efficiency at Low Output Power
● Load Disconnect During Shutdown
● Low Reverse Leakage Current when VOUT > VIN
● Over-Temperature Protection

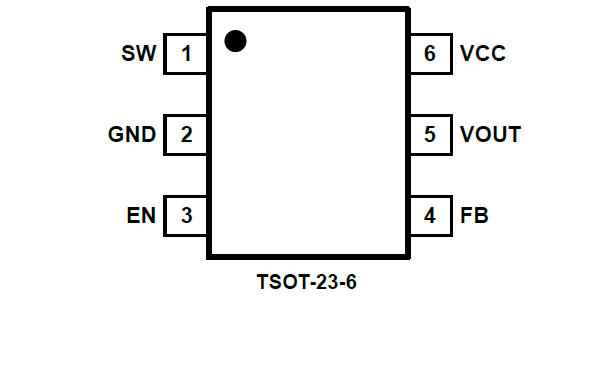

● Available in Green TSOT-23-6 Package
● -40℃ to +85℃ Operating Temperature Range
The SGM66051 is an internally compensated, 1.1MHz switching frequency, current mode, synchronous step- up switching regulator, which is capable of generating 5V output at 1A load current from a 3.3V rail.
This device turns into power-saving mode to maintain high efficiency by lowering switching frequency. With its anti-ringing circuitry damping the charge in parasitic capacitor, it reduces EMI interference significantly. Its output is disconnected by the rectifier circuit during shutdown, with no input to output leakage.

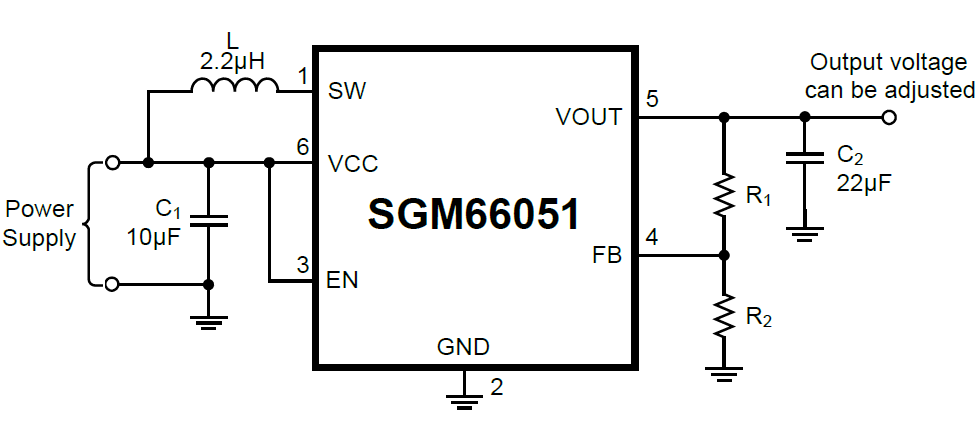

The SGM66051-5.1 and SGM66051-5.4 are preset for outputting 5.1V and 5.4V, while the SGM66051-ADJ is output voltage programmable with an external resistor divider.
The device is available in the Green TSOT-23-6 package and operates over an ambient temperature range of -40℃ to +85℃.
