SGM6605.pdf
No.11004
● 90% Efficient Synchronous Boost Converter
● Device Quiescent Current: 30μA (TYP)
● Less than 1μA Shutdown Current
● Input Voltage Range: 2.7V to 5.5V
● 5.0V Fixed Output Voltage
● Output Voltage Clamping: 6V
● Adjustable Output Voltage Up to 5.5V
● Power-Save Mode for Improved Efficiency at Low Output Power
● Load Disconnect During Shutdown
● 1.8V Logic on EN Pin for Control
● Low Reverse Leakage Current when VOUT > VIN
● Over-Temperature Protection

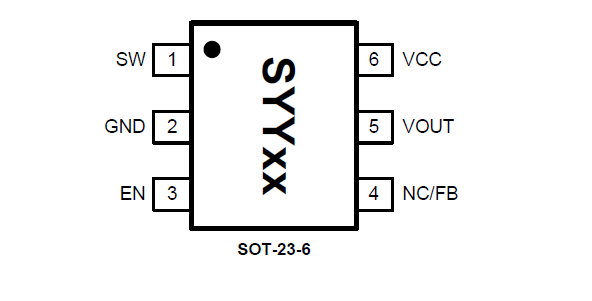

● Available in Green SOT-23-6 Package
● -40℃ to +85℃ Operating Temperature Range

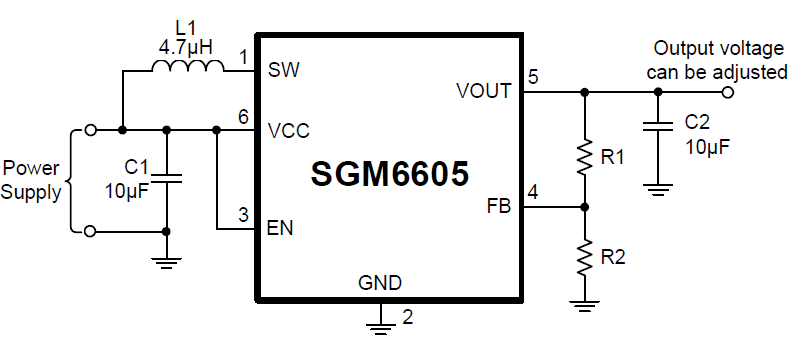

The SGM6605 is a constant frequency, current mode, synchronous step-up switching regulator. It can be used for generating 5V at 400mA from a 3.3V rail or a Li-ion battery. High switching frequency minimizes the sizes of inductor and capacitor. Integrated power MOSFETs and internal compensation make the SGM6605 simple to use and fit the total solution into a compact space.
For light load current, the SGM6605 enters into the power-save mode to maintain high efficiency. Anti-ringing control circuitry reduces EMI concerns by damping the inductor in discontinuous mode. The SGM6605 provides true output disconnect and this allows VOUT to go to zero volts during shutdown without drawing any current from the input source. The SGM6605 supports 1.8V logic for control.
