SGM6515.pdf
No.11112
? 24Ω Typical On-Resistance
? 12Ω On-Resistance Flatness
? ±3.3V to ±6.6V Dual Supply Operation
? 3.3V to 13.2V Single Supply Operation
? -3dB Bandwidth: 80MHz
? Rail-to-Rail Operation
? -40℃ to +85℃ Operating Temperature Range

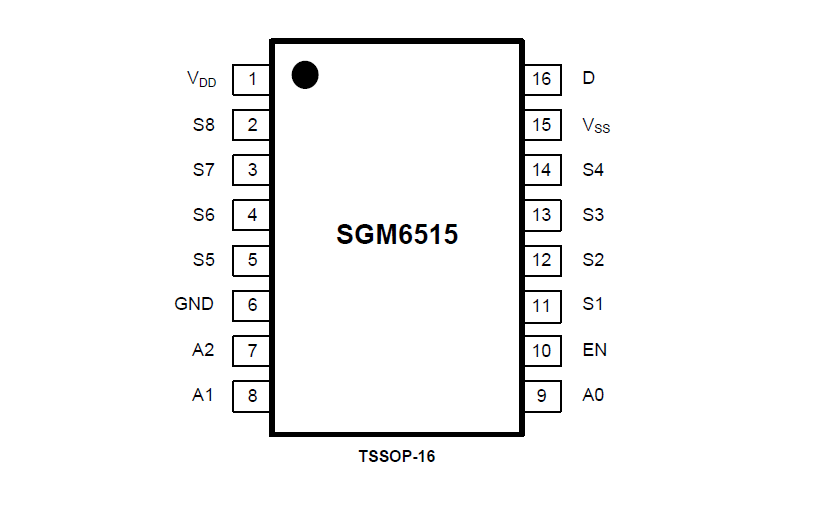

? Available in Green TSSOP-16 Package

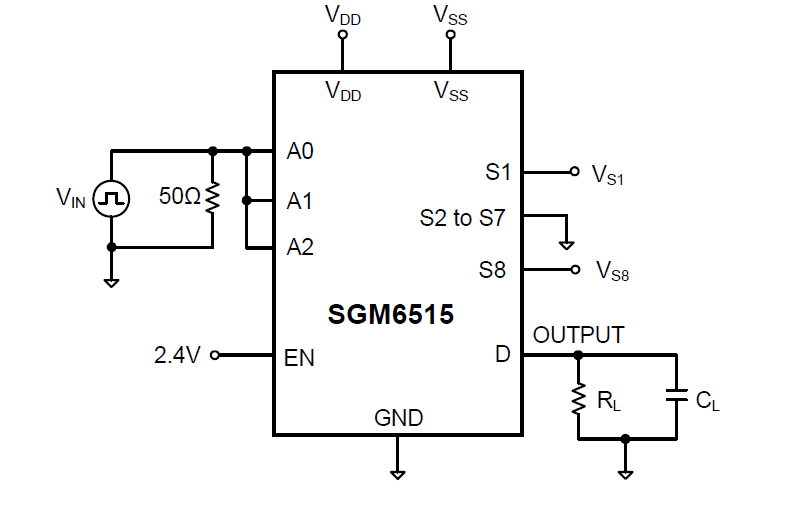

The SGM6515 is a high speed monolithic 8:1 analog signal multiplexer. The SGM6515 switches one of 8 inputs to a common output, as determined by the 3-bit binary address lines (A0, A1 and A2). An EN input enables or disables the device. When disabled, all channels switch off; when enabled, each channel conducts equally well in both directions and has an input signal range that extends to the supplies.
The 24Ω on-resistance and 12Ω on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical.
The SGM6515 is available in Green TSSOP-16 package. It operates over an ambient temperature range of -40℃ to +85℃.
