SIM I/F Swap
SGM6503
SGM6503.pdf
SGM6503.pdf
No.11120
FEATURES
● Low Voltage Operation: 1.8V to 5.5V
● Low On Capacitance for Data Bus: 12pF
● High -3dB Bandwidth for Data Bus: 400MHz
● Low On Resistance for SIM Supply Bus: 0.65Ω
● High Off-Isolation for Data Bus: -75dB at 1MHz
● Low Crosstalk: -80dB at 1MHz
● Power Supply Current: < 10μA
● TTL/CMOS Compatible
● Available in Green TQFN-3×3-20L Package
● Extended Industrial Temperature Range: -40℃ to +85℃
DESCRIPTION
The SGM6503 is a high-speed 2×2 SIM card bus crosspoint switch which is designed to operate from a single 1.8V to 5.5V power supply. It features high-bandwidth (400MHz).
SGM6503 is available in Green TQFN-3×3-20L package.

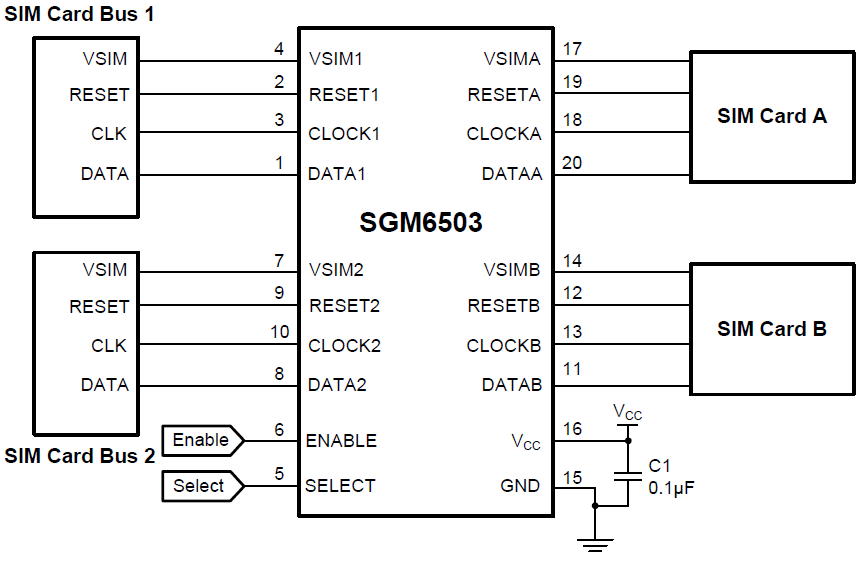

APPLICATION CIRCUIT

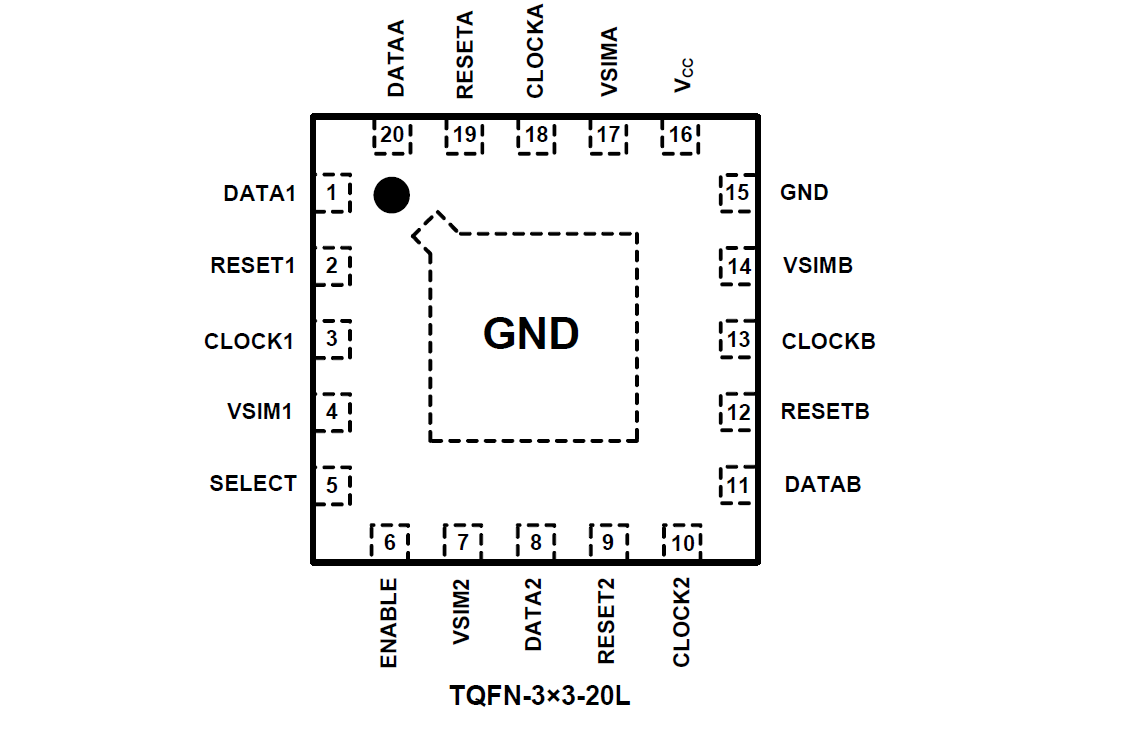

PIN CONFIGUTION
