Ultra-Low Power Step-Down Converters with Up to 600mA Output Current
SGM6036 SGM6036.pdf

No.10815

FEATURES

● Industry's Highest Efficiency at Low Output

   Currents: Up to 90% with IOUT = 0.1mA

● Ultra-Low Power Step-Down Converters

● 600mA Maximum Output Current

● 1.8V to 5.5V Input Operating Range

● Fixed Output Voltages: 1.0V, 1.2V and 3.3V

● Output Adjustable from 1.0V to 3.3V

● 450nA Quiescent Current

● 100% Duty Cycle (Pass Mode)

● -40℃ to +85℃ Ambient Temperature Range

● Available in Green UTDFN-1.5×2-6L Package

DESCRIPTION

The SGM6036 family provides a highly integrated ultra-low power step-down converter solution that is well suited for meeting the special needs of ultra-low power applications such as energy harvesting. The regulators are intended to step-down the voltage from an energy storage element such as a battery or super capacitor to supply the rail to low-voltage electronics. The regulated output has been optimized to provide high efficiency across low output currents (<10μA) to high currents (600mA).

The SGM6036 family integrates an optimized hysteretic controller for low-power applications. The internal circuitry uses a time-based sampling system to reduce the average quiescent current.

All the capabilities of SGM6036 are packed into a small UTDFN-1.5×2-6L package. It operates over an ambient temperature range of -40℃ to +85℃.

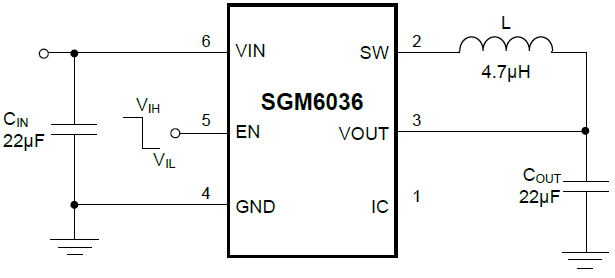

APPLICATION CIRCUIT

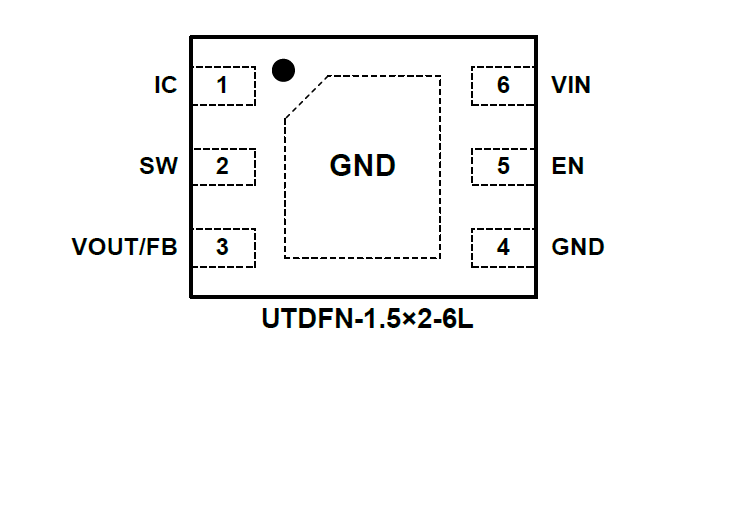

PIN CONFIGUTION
