SGM5348.pdf
No.10699
? Low Power Consumption (0.5mW/CH)
? Integrating 8 Channels of 12-Bit DAC
? Built-in Rail-to-Rail Output Amplifier:
? Sink/Source Current with Short Current Control
? Daisy-Chain Capability
? Simultaneous 8 Channels Output Updating
? Individual Channel Power-Down Capability
? 0.6μA (TYP) ICC for Power-Down Mode
? 0.1% (TYP) Gain Error for All Channels
? Interface Sees No Quiescent Current when VBUS < VCC
? Power-On Reset: Output Reset to GND
? Serial Data Input: Up to 40MHz Operation
? TTL Compatible Input Logic Level
? Wide Power Supply Range: 2.8V to 5.5V
? Dual Reference Voltages with Range of 0.5V to VCC

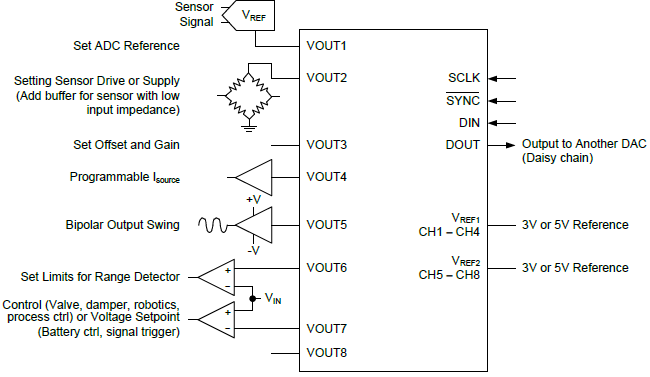

The SGM5348-12 features 8 channels of digital-to- analog converter (DAC) with output amplifiers. The output amplifier provides high current drive capability. The digital data is sent via SPI interface, and cascaded connections can be used. The SGM5348-12 also offers daisy-chain operation, where an unlimited number of SGM5348-12s can be updated simultaneously using a single serial interface.
There are two references for the SGM5348-12. One reference input serves channels 1 through 4, while the other reference serves channels 5 through 8. Each reference can be set independently between 0.5V and VCC, providing the widest possible output dynamic range. The SGM5348-12 has a 16-bit input shift register that controls the mode of operation, the power-down condition and the register/output value of the DAC channels. All 8 channels DAC outputs can be updated simultaneously or individually.

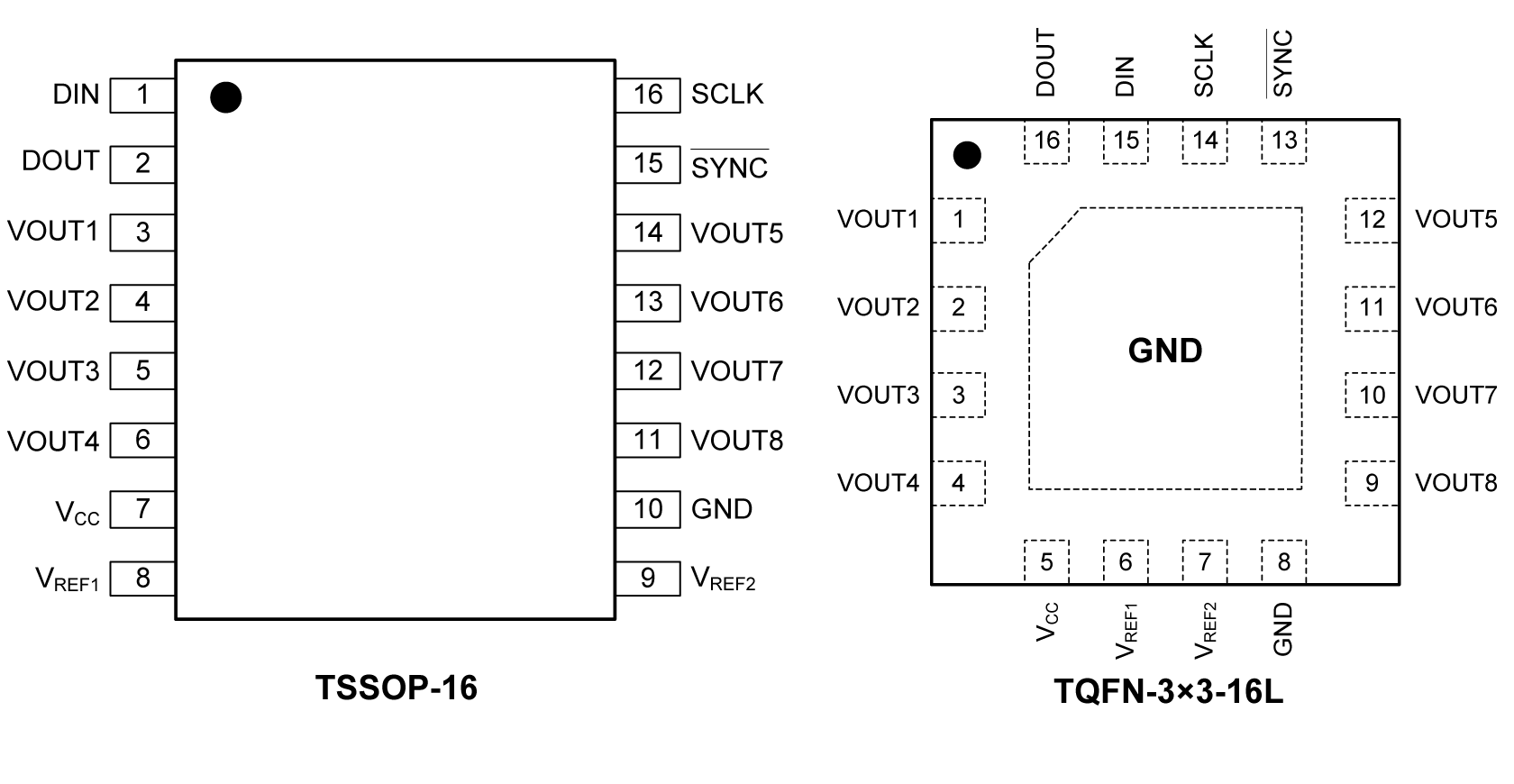

The SGM5348-12 is available in Green TSSOP-16 and TQFN-3×3-16L packages. It operates over the extended industrial temperature range of -40℃ to +125℃.
