SGM48780.pdf
No.11129
● Voltage Operation: 1.8V to 4.2V
● Low On-Resistance: 4Ω (TYP) at 4.2V
● Low On-Resistance Flatness

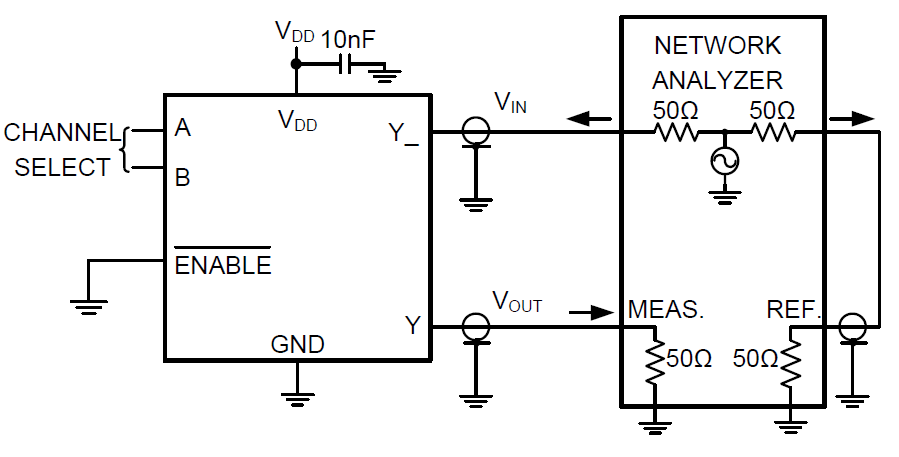

● -3dB Bandwidth: 150MHz
● Fast Switching Times (VDD = 4.2V)
tON = 35ns
tOFF = 9ns
● Rail-to-Rail Input and Output Operation
● TTL/CMOS Compatible
● Break-Before-Make Switching
● Extended Industrial Temperature Range: -40℃ to +85℃

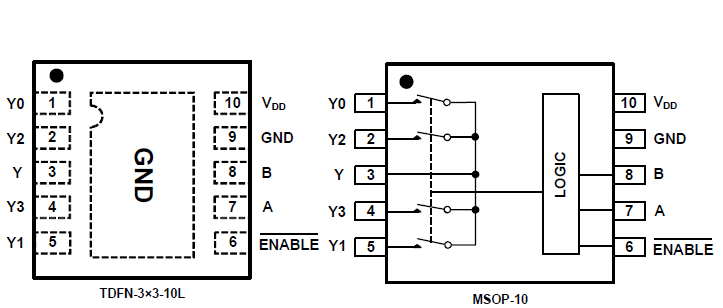

● Available in Green TDFN-3×3-10L and MSOP-10 Packages
The SGM48780 is a high-speed, low-voltage, low on-resistance, CMOS analog multiplexer/switch that can be configured as a 4:1 multiplexer. It operates from a single 1.8V to 4.2V power supply. Targeted applications include battery powered equipment that benefit from low RON (4Ω) and fast switching speeds (tON = 35ns, tOFF = 9ns).
The SGM48780 can handle rail-to-rail analog signals and is available in Green TDFN-3×3-10L and MSOP-10 packages.
