SGM48751.pdf
No.11133
● Guaranteed On-Resistance 48Ω (TYP) with +5V Supply
● Guaranteed On-Resistance Match Between Channels
● Low Off-Leakage Current 1nA at +25℃
● Low On-Leakage Current 1nA at +25℃
● Optimized Rise Time and Fall Time of A, B, C Control
Pins to Reduce Clock Feedthrough Effect
● 2.5V to 5.5V Single-Supply Operation
● 1.8V Logic Compatible
● High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
● -40℃ to +85℃ Operating Temperature Range

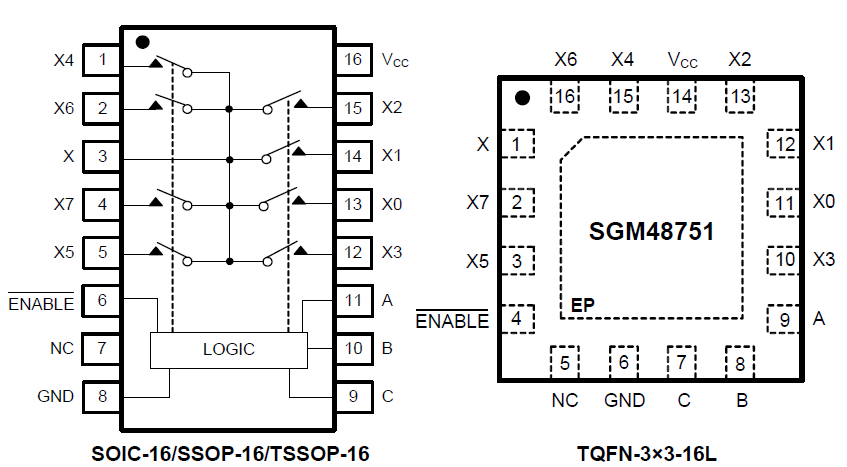

● Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages
The SGM48751 is a CMOS analog IC configured as an 8-channel multiplexer. This CMOS device can operate from 2.5V to 5.5V single supplies. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25℃. All digital inputs can support 1.8V logic control I/O.
The SGM48751 is available in Green SOIC-16, SSOP-16, TSSOP-16 and TQFN-3×3-16L packages. It operates over an ambient temperature range of -40℃ to +85℃.
