? Distortion-Free, Click-Pop Elimination
? 1.5μA (TYP) Supply Current
? 1.7V to 5V Single Supply Operation
? 600kΩ Pull-Low Resistor at MUTE Pin

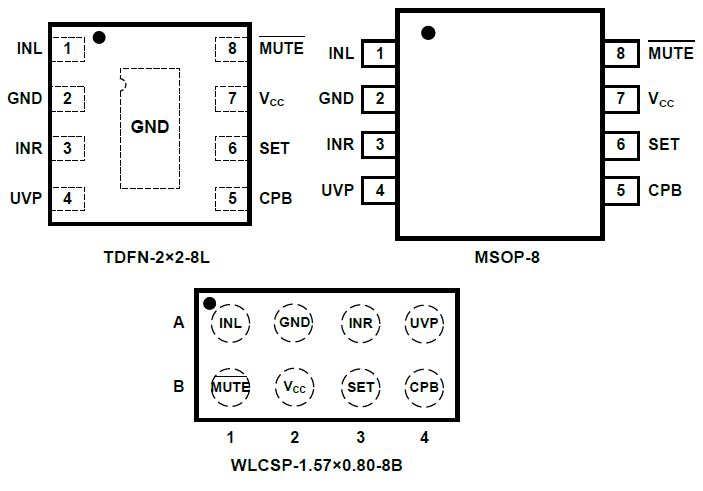

? Available in Green TDFN-2×2-8L, MSOP-8 and WLCSP-1.57×0.80-8B
Packages
? -40℃ to +85℃ Operating Temperature Range

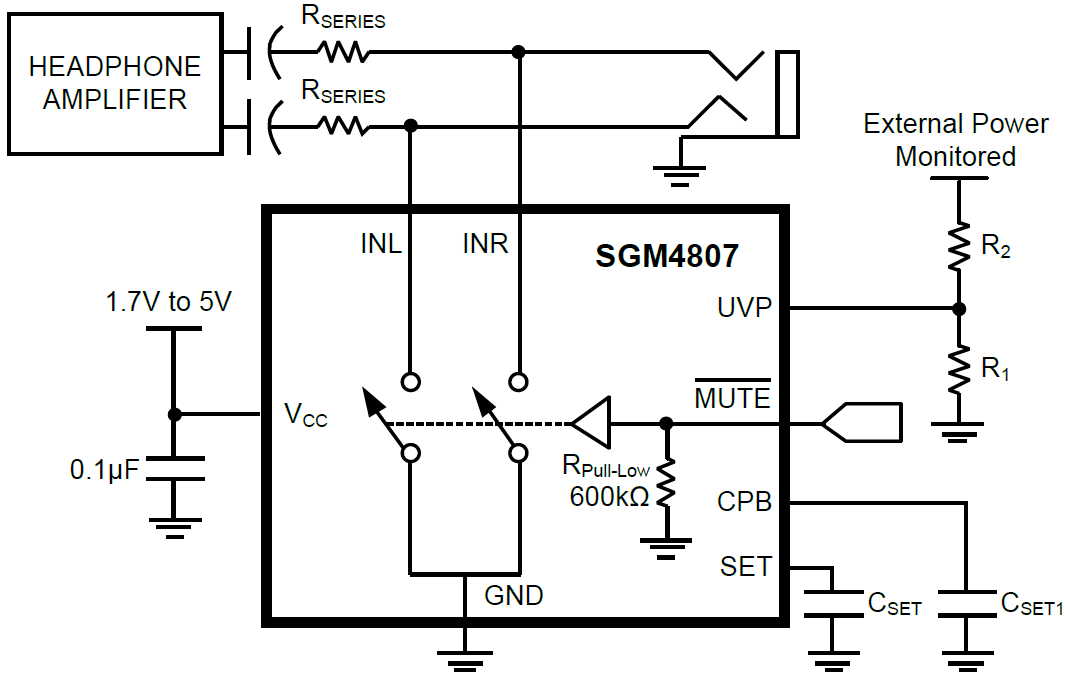

The SGM4807 is an audio Click-Pop eliminator for portable multimedia devices. Operating from a 1.7V to 5V power supply, the SGM4807 connects to the output of the existing system amplifier and provides a low-impedance path to ground during startup and shutdown. The inputs INL and INR accept voltage swings from +VCC to -VCC. The power-up and power-down transients are shunted to ground to prevent Clicks-Pops from becoming audible.
The SGM4807 features two low-impedance analog switches controlled by mute events that open and close the switches. The mute events include under-voltage of VCC and external power supply, power-up, power-down and high to low logical level change of MUTE pin. The switches are open during normal operation and have no impact on the output signal. During startup and shutdown of the amplifier, the SGM4807 can be activated to short the outputs to ground and prevent Clicks-Pops from pulling current through the line-outs.
