SGM4517.pdf
No.11143
● ±2.7V to ±12V Dual Supply Operation
● 2.7V to 24V Single Supply Operation
● On-Resistance for Switches: 0.9Ω (TYP)
● Fast Switching Times
● High Off-Isolation

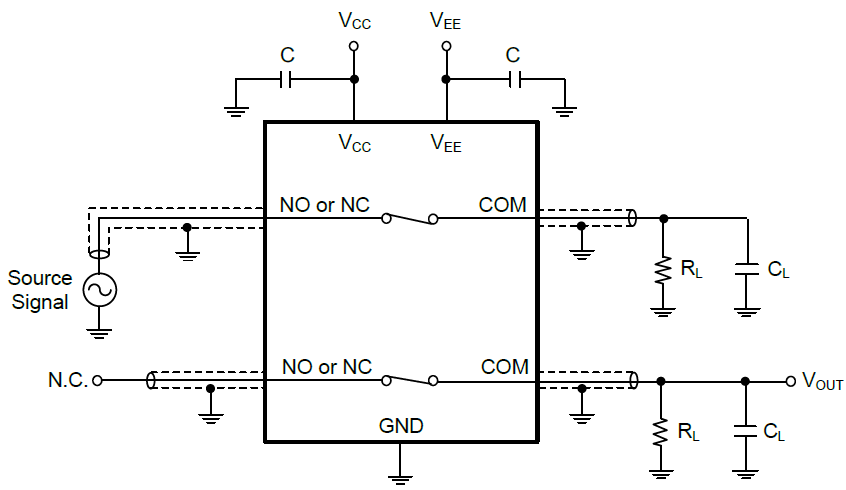

● Very Low Crosstalk
● 1.8V Logic Compatible Control Pin
● Break-Before-Make Switching
● -40℃ to +85℃ Operating Temperature Range

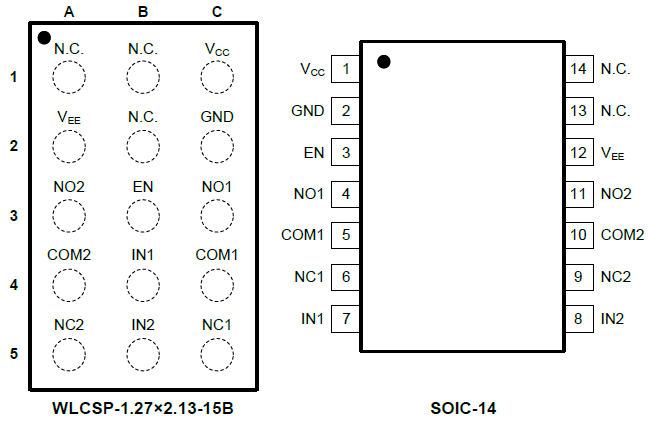

● Available in Green WLCSP-1.27×2.13-15B and SOIC-14
Packages
The SGM4517 is a high voltage, dual single-pole/ double-throw (SPDT) analog switch that is designed to operate for single power supply or dual power supply. Targeted applications include battery powered equipment that benefit from the SGM4517’s low 0.9Ω (TYP) on-resistance and fast switching speeds.
The SGM4517 is a committed dual single-pole/double- throw (SPDT) that consist of two normally open (NO) and two normally close (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer.
The SGM4517 supports dual power supplies (VEE and VCC) or single power supply.
The SGM4517 is available in Green SOIC-14 and WLCSP-1.27×2.13-15B packages. It operates over an ambient temperature range of -40℃ to +85℃.
